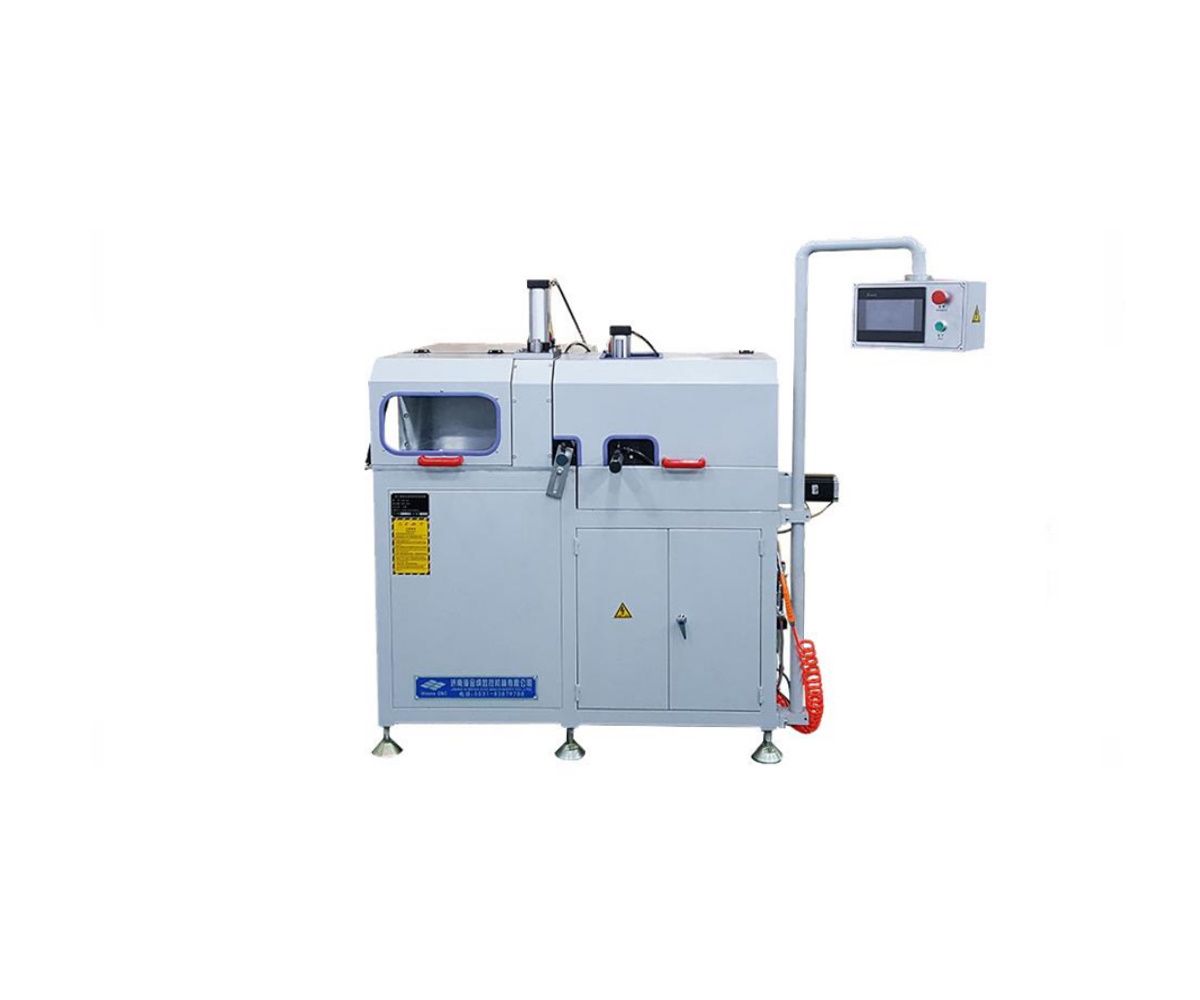

CNC Corner Cleat Cutting Machine (LJZS-150)

By: JINAN HAIJINNA CNC MACHINERY CO.LTD

Model	LJZS-150
Power supply	380V/50Hz
Motor power	3 Kw
Spindle speed	2840 r/min
Air pressure	0.5-0.8 Mpa
Air consumption	60 L/min
Blade size	Φ400 mm
Cutting angle	90°
Max. Cutting width	250 mm
Auto profile feeding length	3-300 mm
Angle cutting tolerance	±5′
Planeness	≤0.10
Roughness	Ra12.5 um
Machine dimension	1500x1500x1600mm
Weight	300KG
Category	Equipment
Manufacturer	JINAN HAIJINNA CNC MACHINERY CO. LTD
Min Order Quantity	1.00 Unit
Delivery Lead Time	60 Days
Place of Origin	China
Supply Ability	Customization on Requirement
Packaging Details	Standard Export Packing
Transportation Details	Road/Ship

Send response to similar sellers

Details

Valid Upto

23.11.2025

Description

1.Used for 90 degrees cutting for aluminum window corner cleat or other aluminum alloy profiles.
2.High working efficiency, long stroke(250mm),can process multi-piece profiles at one time.
3.Saw head feed speed and stroke adjustable.
4.An inclined hopper can be added at the discharge end for automatic collection.
5.CNC system.
6.Operation simple, Reliable performance, advanced technology, Easy maintenance.
