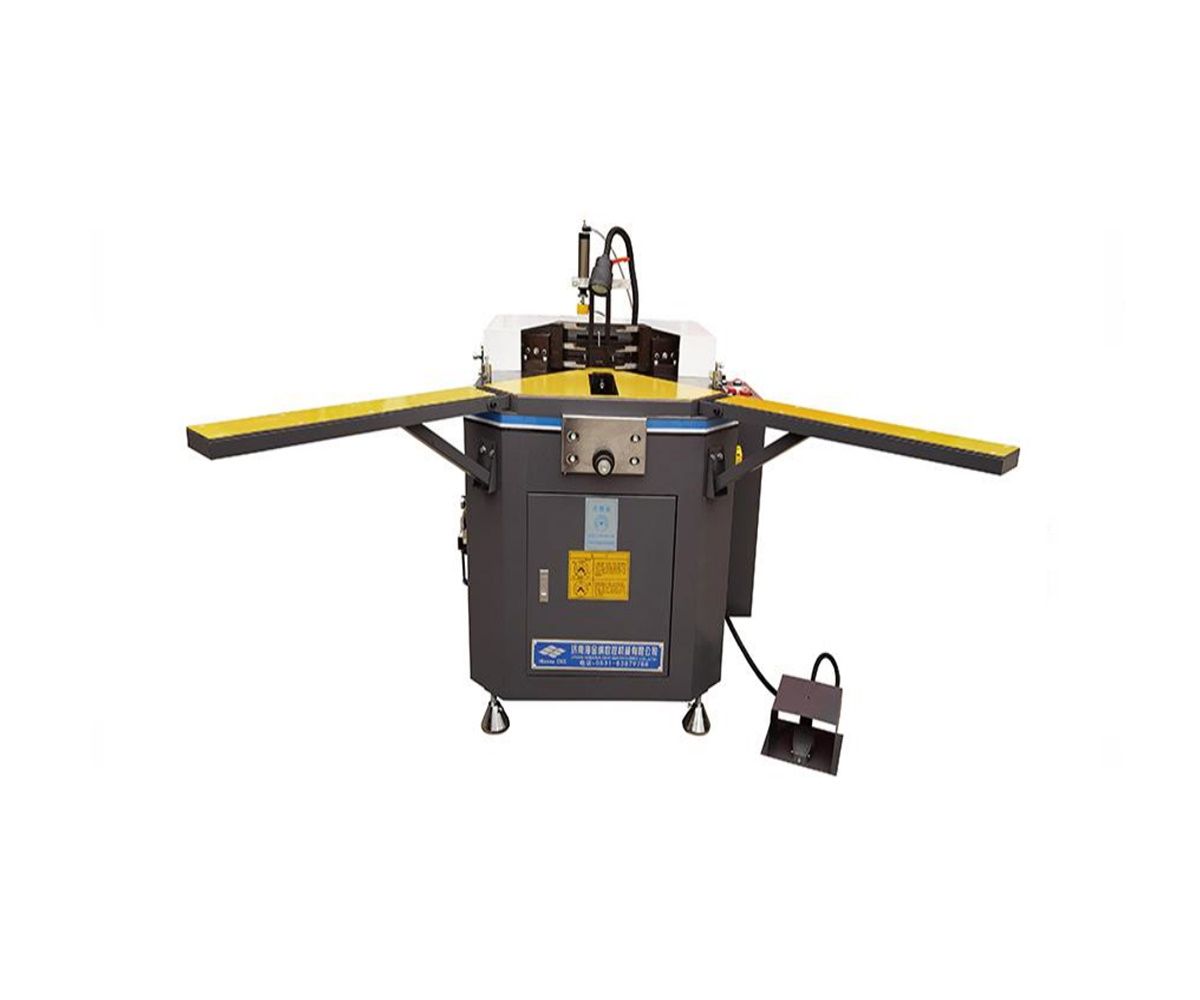

Corner Crimping Machine (LZJ-03)

By: JINAN HAIJINNA CNC MACHINERY CO.LTD
Model LZJ-03
Power supply 380V/50Hz
Motor power 2.2 Kw
Spindle speed 140 r/min
Air pressure 0.5-0.8 Mpa
Air consumption 2 L/min
Hydraulic pressure 16 Mpa
Flow velocity 8.6 L/min
Fuel tank capacity 40 L
Maximum profile width 120 mm
Machine dimension 1300x1040x1250mm
Weight 400KG
Category Equipment
Manufacturer JINAN HAIJINNA CNC MACHINERY CO. LTD
Min Order Quantity 1.00 Unit
Delivery Lead Time 60 Days
Place of Origin China
Supply Ability Customization on Requirement
Packaging Details Standard Export Packing
Transportation Details Road/Ship
23.11.2025
Description

1.Hydraulic system driving , ensure a stable working .
2.Synchronous feeding of the level (left and right side) pushing knives by link with one hydraulic.
3. Cylinder driving, which avoid the corner deform and enhance the connection efficiently.
4. Convenient operation and less error in processing.
5. Stroke of feed is adjustable, positioning block can lift automatically, easy to get the finished frame.
