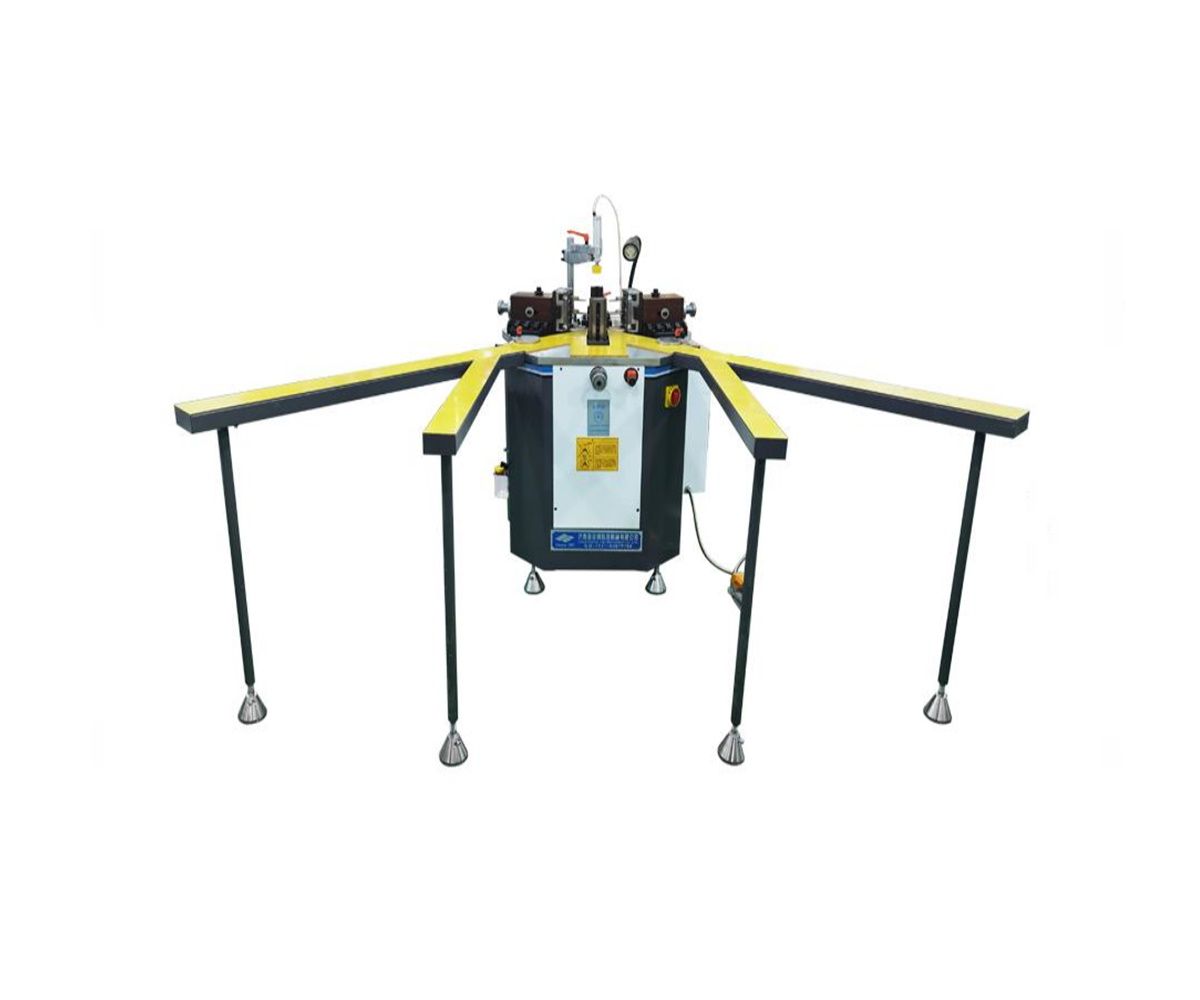

Corner Crimping Machine (LZJ-04)

By: JINAN HAIJINNA CNC MACHINERY CO.LTD
Model LZJ-04
Power supply 380V/50Hz
Motor power 3 Kw
Spindle speed 140 r/min
Air pressure 0.5-0.8 Mpa
Air consumption 2 L/min
Hydraulic pressure 16 Mpa
Flow velocity 14.4 L/min
Fuel tank capacity 40 L
Maximum profile width 160 mm
Machine dimension 1300x1060x1300mm
Category Equipment
Manufacturer JINAN HAIJINNA CNC MACHINERY CO. LTD
Min Order Quantity 1.00 Unit
Delivery Lead Time] 60 Days
Place of Origin China

Customization on Requirement

Standard Export Packing

Road/Ship

23.11.2025

Description

By crimping, the aluminum profile and the corner cleat are joined together to achieve the effect of corner combination.
1.Hydraulic system driving , ensure a stable working .
2.Synchronous feeding of the level (left and right side) pushing knives by link with one hydraulic.
3. Cylinder driving ,which avoid the corner deform and enhance the connection efficiently.
4. Convenient operation and less error in processing.
5. Stroke of feed is adjustable, positioning block can lift automatically, easy to get the finished frame.
