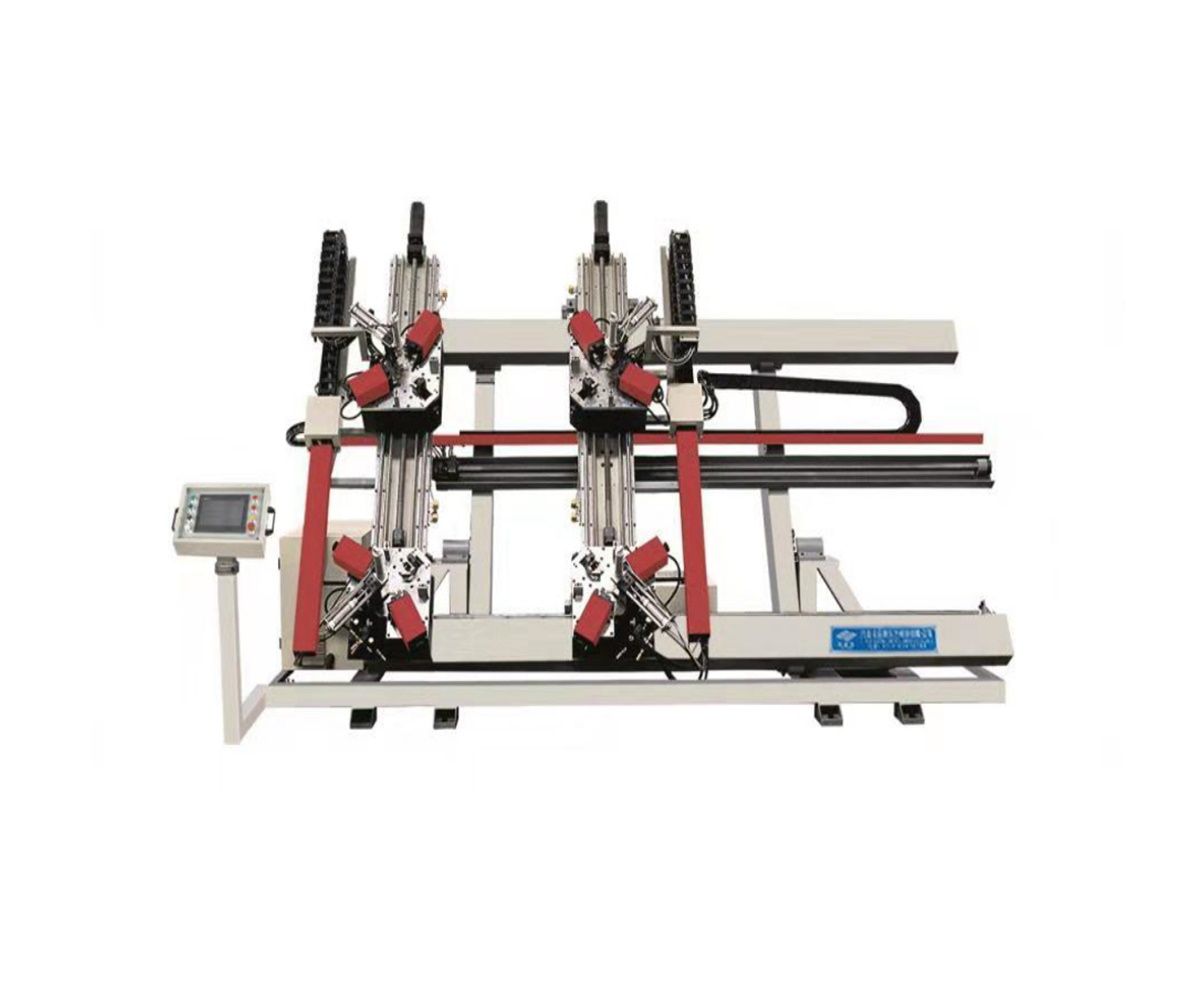

Four Corners Automatic Corner Crimping Machine (LZJ4-110X1800X3000)

By: JINAN HAIJINNA CNC MACHINERY CO.LTD
Model LZJ4-110X1800X3000
Power supply 380V/50Hz
Motor power 7.5 Kw
Motor speed 140 r/min
Air pressure 0.6-0.8 Mpa
Air consumption 60 L/min
Fuel tank capacity 60 L
Hydraulic pressure 20 Mpa
Maximum Hydraulic pressure 48 Kn
Maximum profile width 90 mm
Minimum frame size 480*480 mm
Maximum frame size 1800*3000 mm
Machine dimension 4700x250x2600mm
Weight 2200KG
Category Equipment
Manufacturer JINAN HAIJINNA CNC MACHINERY CO. LTD
Min Order Quantity 1.00 Unit
Delivery Lead Time 60 Days
Place of Origin China
Supply Ability Customization on Requirement
Packaging Details Standard Export Packing
Transportation Details Road/Ship
23.11.2025
Description

1.PLC adopts the French Schneider CNC system, which is stable and efficient.
2.This machine is used for high-efficiency assembly of aluminum doors and windows, and it can complete the four-corner punching connection at one time.
3.The pressing device automatically moves back and forth, easy to operate, and the window size is automatically adjusted.
4.The frame is professionally welded with high-quality steel and treated with aging.
5.Using imported high-quality CNC system, taking into account both speed and precision.
6.Through the torque monitoring function of the servo system, the four corners can be automatically preloaded to ensure the accuracy of the group angle.
7.The corner knives can be easily adjusted back and forth, to meet the needs of different profiles.
8.One-time framing can control the joints and flatness between profiles, making the quality of the framing predictable.
9.The seamless connection between the control system and the servo system greatly improves the control accuracy.
10.The hydraulic system of this machine adopts low-pressure feed and high-pressure group angle feed, which greatly reduces operating errors.
