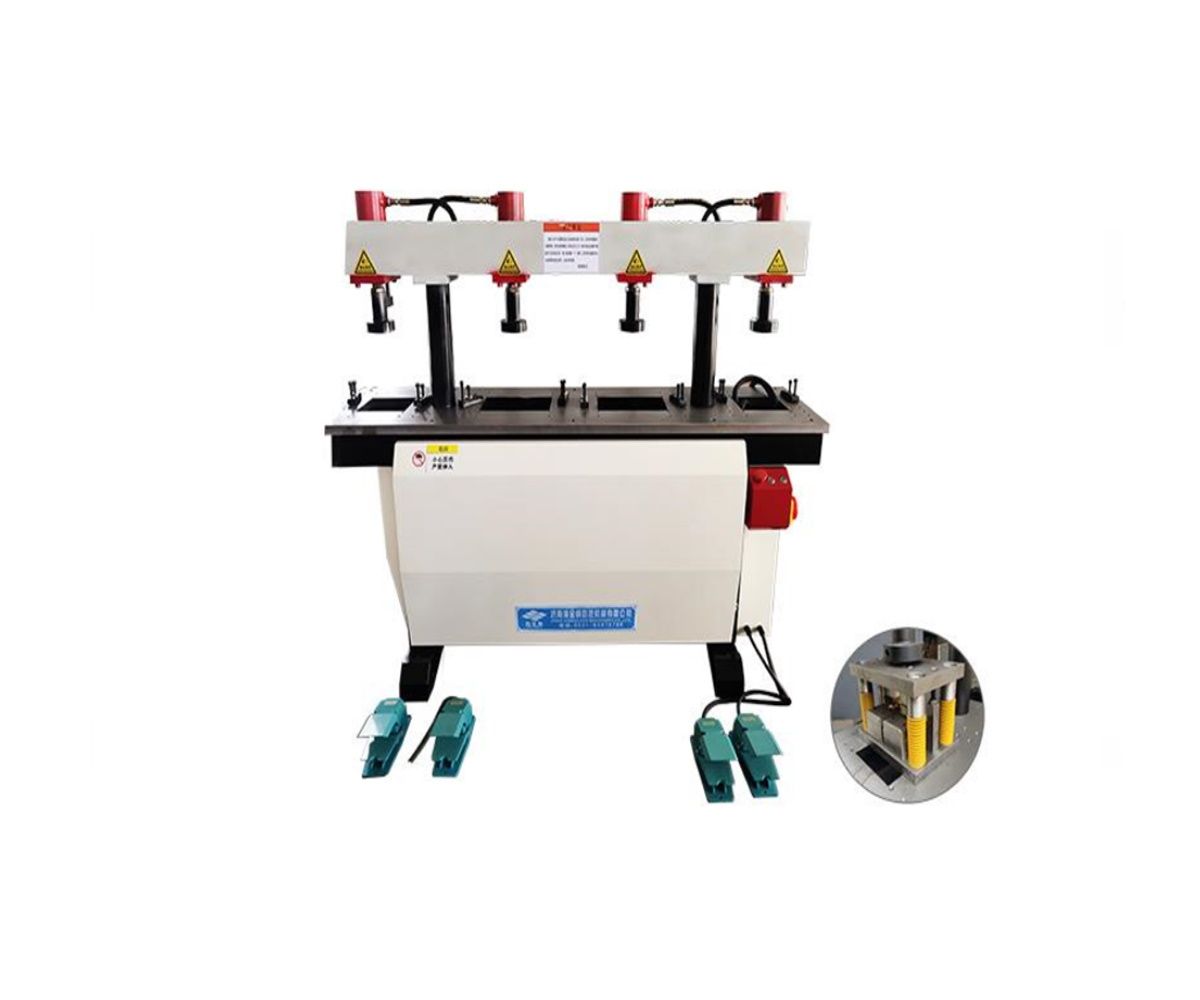

Hydraulic punching machine (LYAI series)

By: JINAN HAIJINNA CNC MACHINERY CO.LTD
Model LYAI series
Power supply 380V/50Hz
Motor power 3.75 Kw
Hydraulic pressure 8000 Mpa
Diameter of hydro cylinder 4*808 mm
Flow velocity 31 ml
Displacement of vane pump 60 mm
Stroke of hydro cylinder 60 mm
Workbench dimension 320*320 mm
Maximum size of molds (dies) 1030x810x1190 mm
Machine dimension 1800x700x1500 mm
Weight 660KG
Category Equipment
Manufacturer JINAN HAIJINNA CNC MACHINERY CO. LTD
Min Order Quantity 1.00 Unit
Delivery Lead Time 60 Days
Place of Origin China
Supply Ability Customization on Requirement
Packaging Details Standard Export Packing
Transportation Details Road/Ship

Details

23.11.2025
Description

1. This machine is suitable for all kinds of aluminum doors and windows processing, and aluminum frame projects such as sunroom and pergola. Mainly used for punching various holes or slots, such as keyholes, hinge holes,drain holes, and corner holes.
2. The molds(dies) are indepandent with the host machine,they are replacable,so molds for different window systems are available on this machine.
3. There are four working stations,and each station is controled by idependent hydrocylinder,so it supports multiplayer operation.
4. The hydrocylinder is specially customized,the performance is good.
