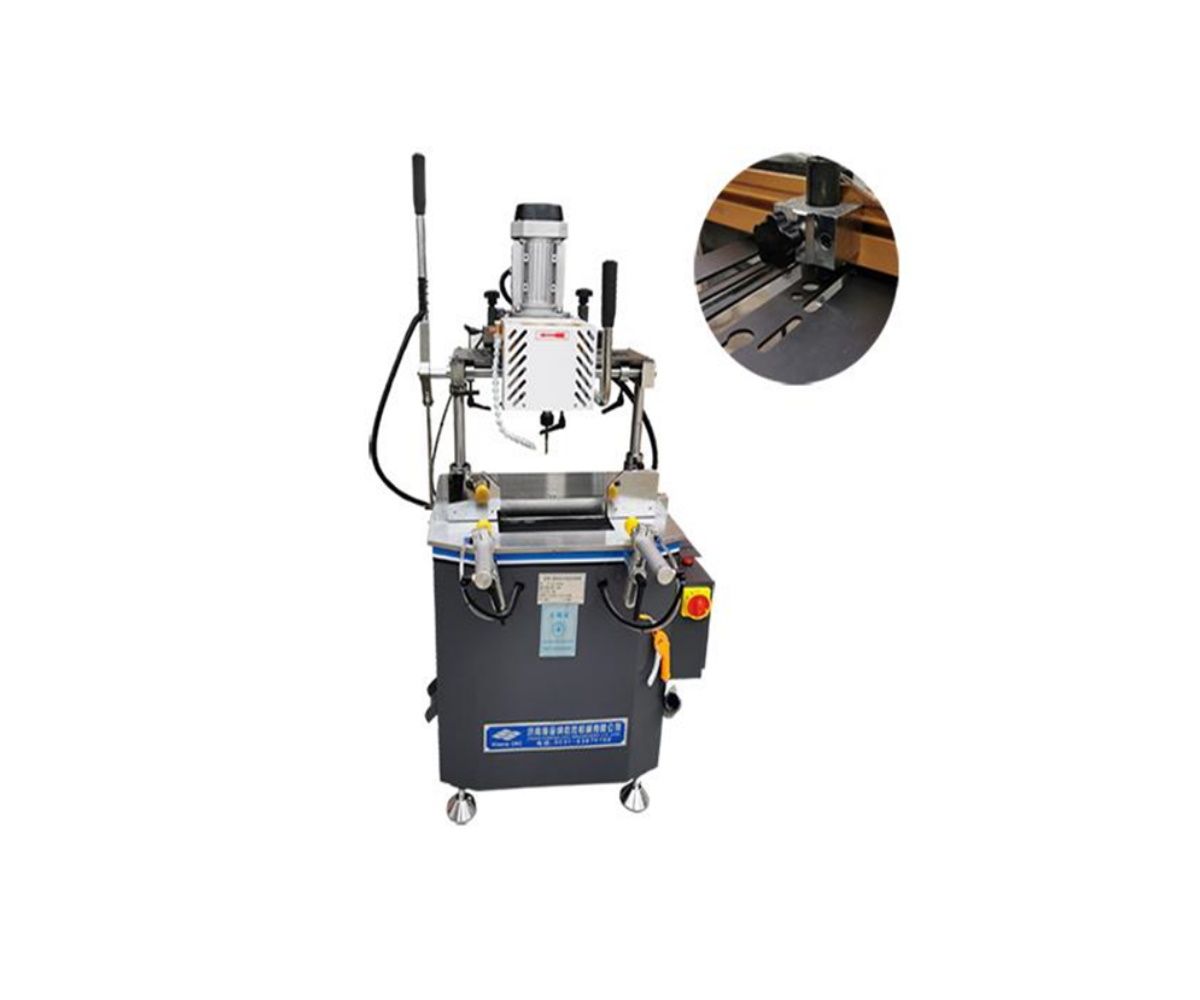

Copy Router (FX1-125×370)

Copy Router (FX1-125×370)

By: JINAN HAIJINNA CNC MACHINERY CO.LTD
Model FX1-125×370
Power supply 380V/50Hz
Motor power 1.5 Kw
Air pressure 0.4-0.6 Mpa
Air consumption 30 L/min
Main spindle spee 12000 rpm
Mills Ø5mm/ Ø8mm
Machine dimension 730x510x1560 mm
Weight 200KG
Usage Lock hole, hinge hole, drainage
Category Equipment

JINAN HAIJINNA CNC MACHINERY CO. LTD

1.00 Unit

60 Days

China

Customization on Requirement

Standard Export Packing

Road/Ship

23.11.2024

Description

1.Used for copy-routing processing various kinds of holes, grooves on aluminum & PVC windows or doors, like holes for installing lock, handle, drainage and etc.
2.By copying template and auxiliary positioning two copying method
3.Using a foot switch control the pressing cylinder, safe and reliable
4.It has features of compact structure and small volume.
