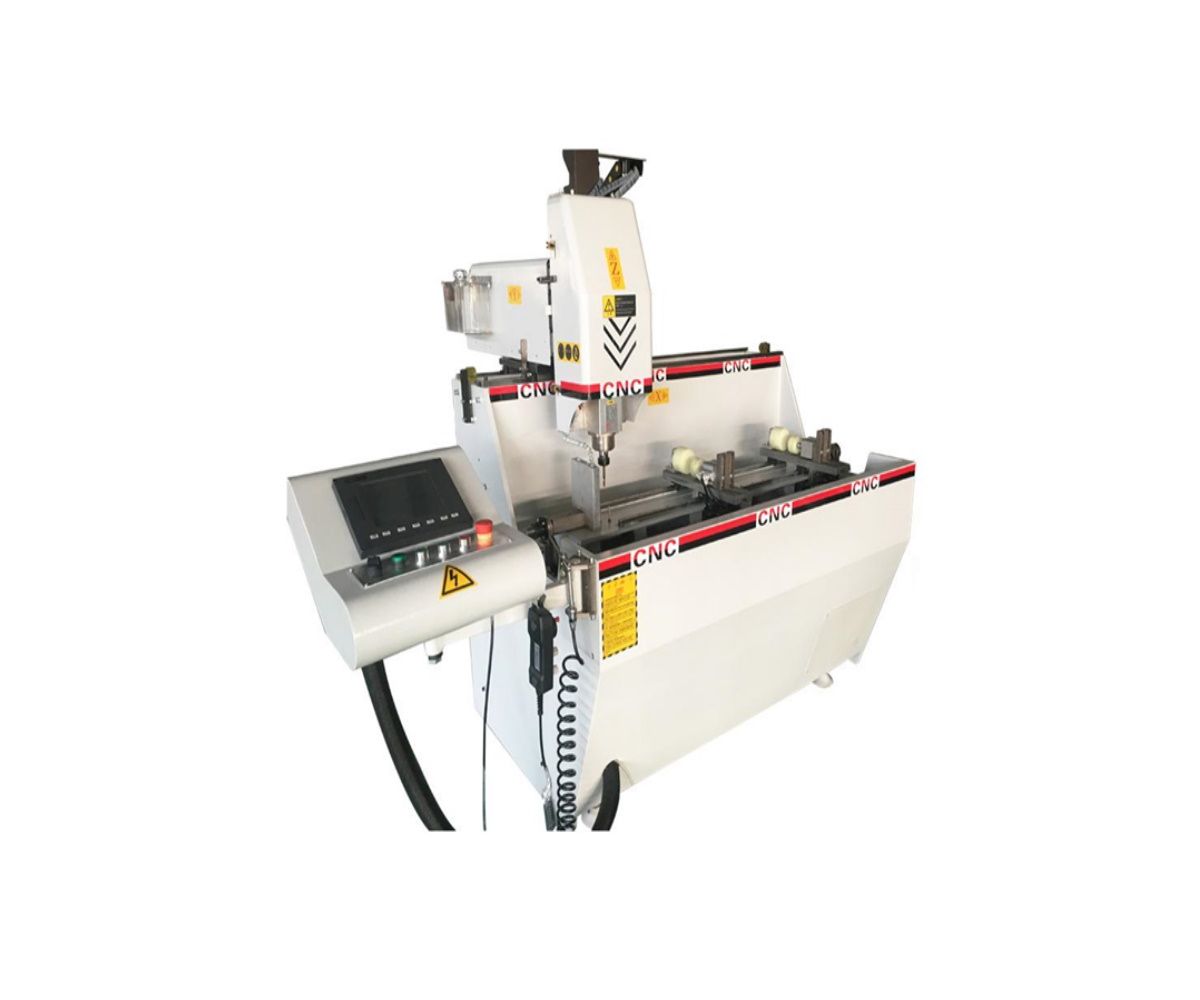

CNC Copy Router 3-axis (LXF-CNC-1200)

By: JINAN HAIJINNA CNC MACHINERY CO.LTD
Model LXF-CNC-1200
Power supply 380V/50Hz
Motor power 3 Kw
Air pressure 0.5-0.8 Mpa
Main spindle speed 18000 rpm
X-axis stroke 1200 mm
Y-axis stroke 300 mm
z-axis stroke 280 mm
Processing range 100*140 mm
Collet ER25
Machine dimension 2200x1500x1950 mm

Details

Usage Lock hole, hinge hole, drainage
Category Equipment
Manufacturer JINAN HAIJINNA CNC MACHINERY CO. LTD
Min Order Quantity 1.00 Unit
Delivery Lead Time] 60 Days
Place of Origin China

Customization on Requirement

Standard Export Packing

Road/Ship

23.11.2024

Description

1. This machine is designed for drilling and milling variable kinds of holes or grooves on aluminum profiles.
2. CNC system support graphic programming, easy for operating, no need complex code programming,reducing the requests for operator.
3. The drive mode is open to choose stepping or servo drive, X-axis adopts high-precision rack and pinion transmission, Y-axis and Z-axis adopt high-precision ball screw transmission, and the guide rails are linear and square
4. Workbench can turn 180°/±90°.
