Model | MC3-6000 |
Power supply | 380V/50Hz |
Spindle Motor power | 8 Kw |
Air pressure | 0.5-0.8 Mpa |
Main spindle speed | 0-22000 rpm |
X-axis stroke | 6000 mm |
Y-axis stroke | 320 mm |
z-axis stroke | 300 mm |
X-axis speed | 0-60/min |
Tool holder | BT30 |
Collet | ER35 |
Magazine | 4 tools |
PLC | SYNTEC FC series(TAIWAN)/PA(Germany) |
Machine dimension | 7100x1600x2150 mm |
Weight | 1800KG |
Category | Equipment |
Manufacturer | JINAN HAIJINNA CNC MACHINERY CO. LTD |
Min Order Quantity | 1.00 Unit |
Delivery Lead Time | 60 Days |
Place of Origin | China |
Supply Ability | Customization on Requirement |
Packaging Details | Standard Export Packing |
Transportation Details | Road/Ship |

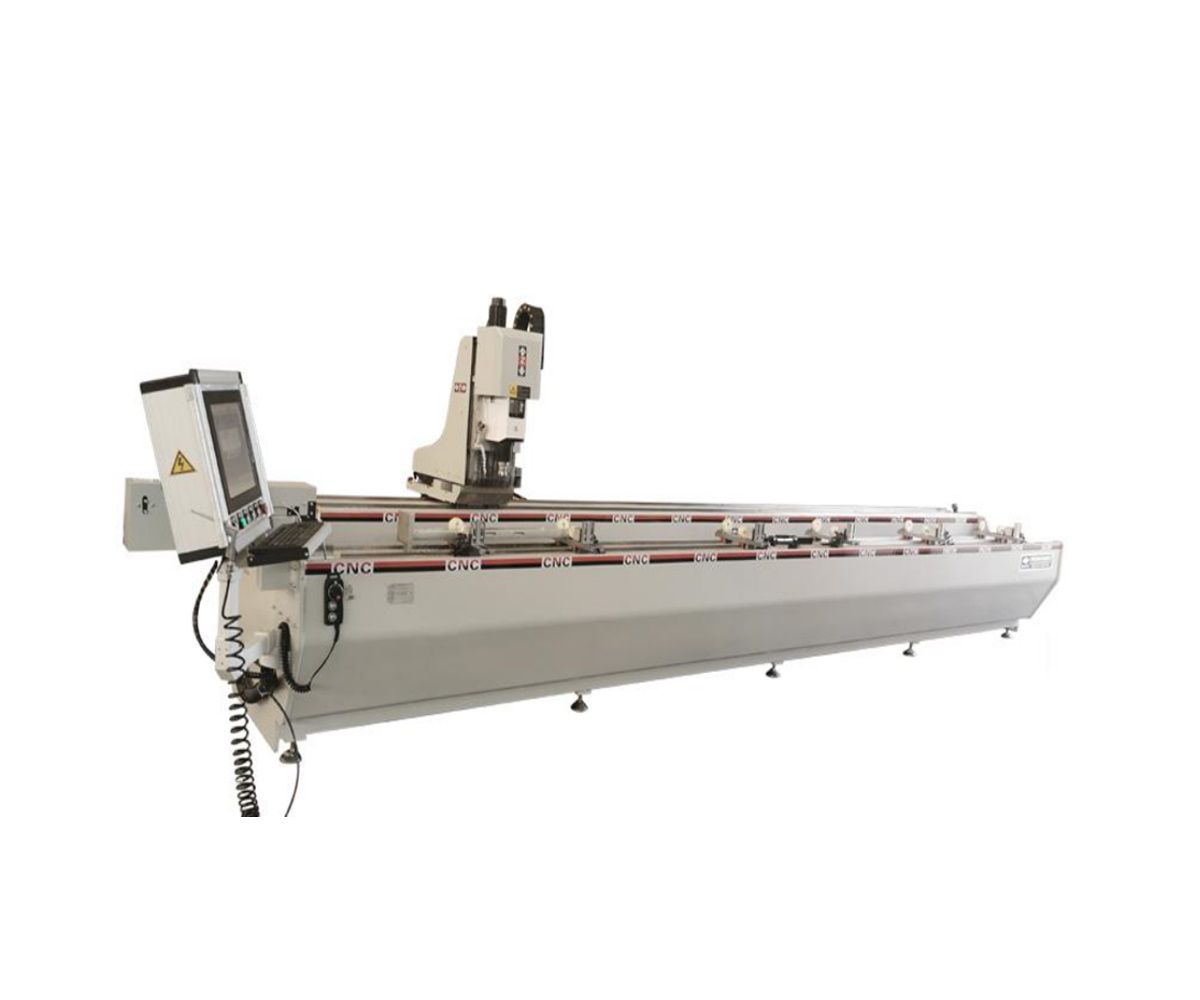

1. This machine is used for drilling, milling, tapping and cutting of aluminum profiles
2. Software support graphic programming, easy for operating, no need complex code programming, reducing the requests for operator.
The software with CAM function is optional.
3. The drive mode is open to choose stepping or servo drive, X-axis adopts high-precision rack and pinion transmission, Y-axis and Z-axis adopt high-precision ball screw transmission, and the guide rails are linear and square
4. Workbench can turn 180°/±90°.
5. Standard capacity of tools magazine is 4.
