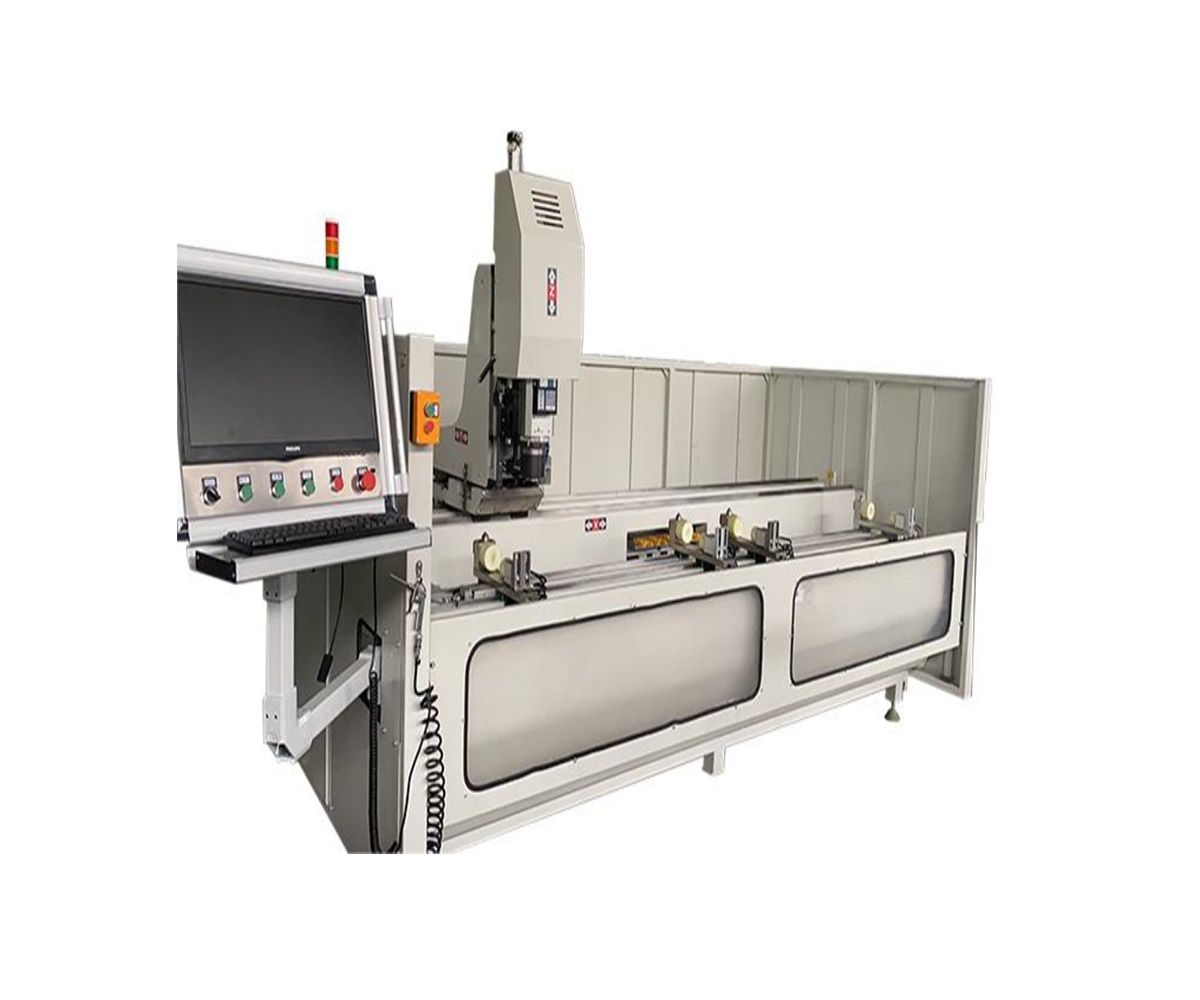

CNC Machining Center 3-axis (MC3PA-3000)

By: JINAN HAIJINNA CNC MACHINERY CO.LTD
Model MC3PA-3000
Power supply 380V/50Hz
Spindle Motor power 8 Kw
Air pressure 0.5-0.8 Mpa
Main spindle speed 0-22000 rpm
X-axis stroke 6000 mm
Y-axis stroke 320 mm
z-axis stroke 300 mm
X-axis speed 0-60/min
Tool holder BT30
Collet ER35
PLC PA(Germany)
Machine dimension 3800x1800x2000 mm
Weight 1500KG
Category Equipment
Manufacturer JINAN HAIJINNA CNC MACHINERY CO. LTD
Min Order Quantity 1.00 Unit
Delivery Lead Time] 60 Days
Place of Origin China

Customization on Requirement

Standard Export Packing

Road/Ship

23.11.2025

Description

1. This machine is designed for processing aluminum extrusions, including drilling, milling and tapping.
2. There are X, Y and Z three axis, workbench is rotatable in three planes of 0 degree, 90 degree and -90 degree as well.
3. PA CNC system with HAN’S PA CAM software is easy for operation.
4. Automatically detect whether the clamps interfere with the processing position, and the clamps position can be automatically adjusted for the second time.
