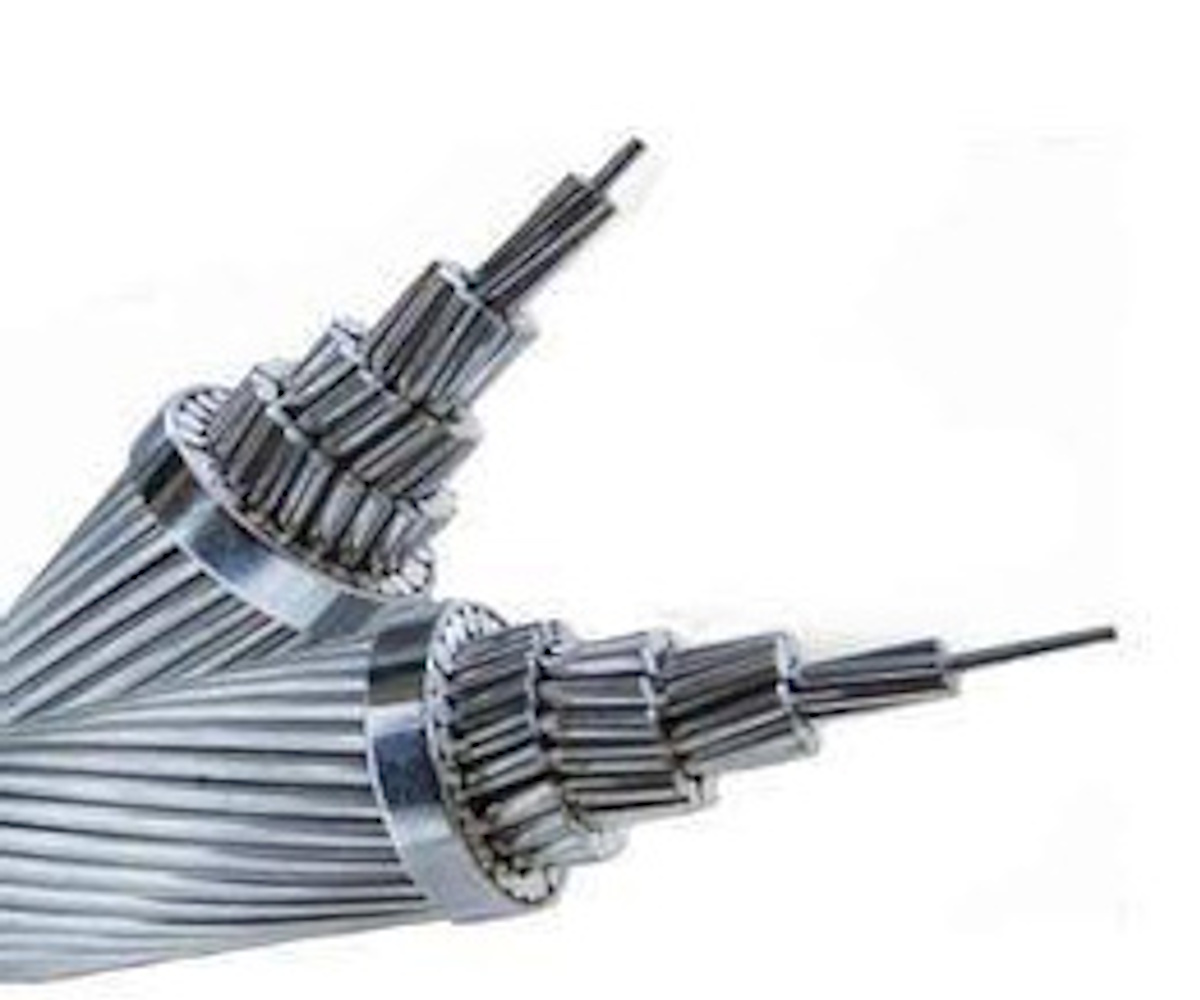

Aluminium Conductor Steel Reinforced ( ACSR)

By: NIRMAL GROUP of Companies

Price	Available on request
Category	Conductor
Manufacturer	NIRMAL GROUP of Companies
Min Order Quantity	10.00 MT
Delivery Lead Time	As per order
Place of Origin	Coimbatore, India
Supply Ability	Customization as required
Packaging Details	Standard export packing
Transportation Details	Road / Ship

Send response to similar sellers

Details

Valid Upto

25.03.2026

Description

Aluminium conductor steel-reinforced cable (ACSR) is a type of stranded conductor typically used in overhead power lines. The outer strands are high-purity aluminium, chosen for its good conductivity, low weight and low cost. The inner core wire is galvanized steel which is zinc coated which is chosen for its strength, thereby tackling sagging of powerlines over long lengths. Based on IS 398 (Part-II) : 1996 we supply the following ACSR Conductors:

Name	Aluminium area (sq mm)		Total sectional Area (sq mm)	Overall Dia (mm)
	Nominal	Sectional
Squirrel	20	20.98	24.48	6.33
Weasel	30	31.61	36.88	7.77
Rabbit	50	52.88	61.7	10.05
Racoon	80	78.83	91.97	12.27
Dog	100	105	91.97	14.15
Wolf	150	158.1	194.9	18.13
Panther	200	212.1	261.5	21
Kundah	400	404.1	425.2	26.88
Zebra	420	428.9	425.2	28.62
Moose	520	528.5	597	31.77
