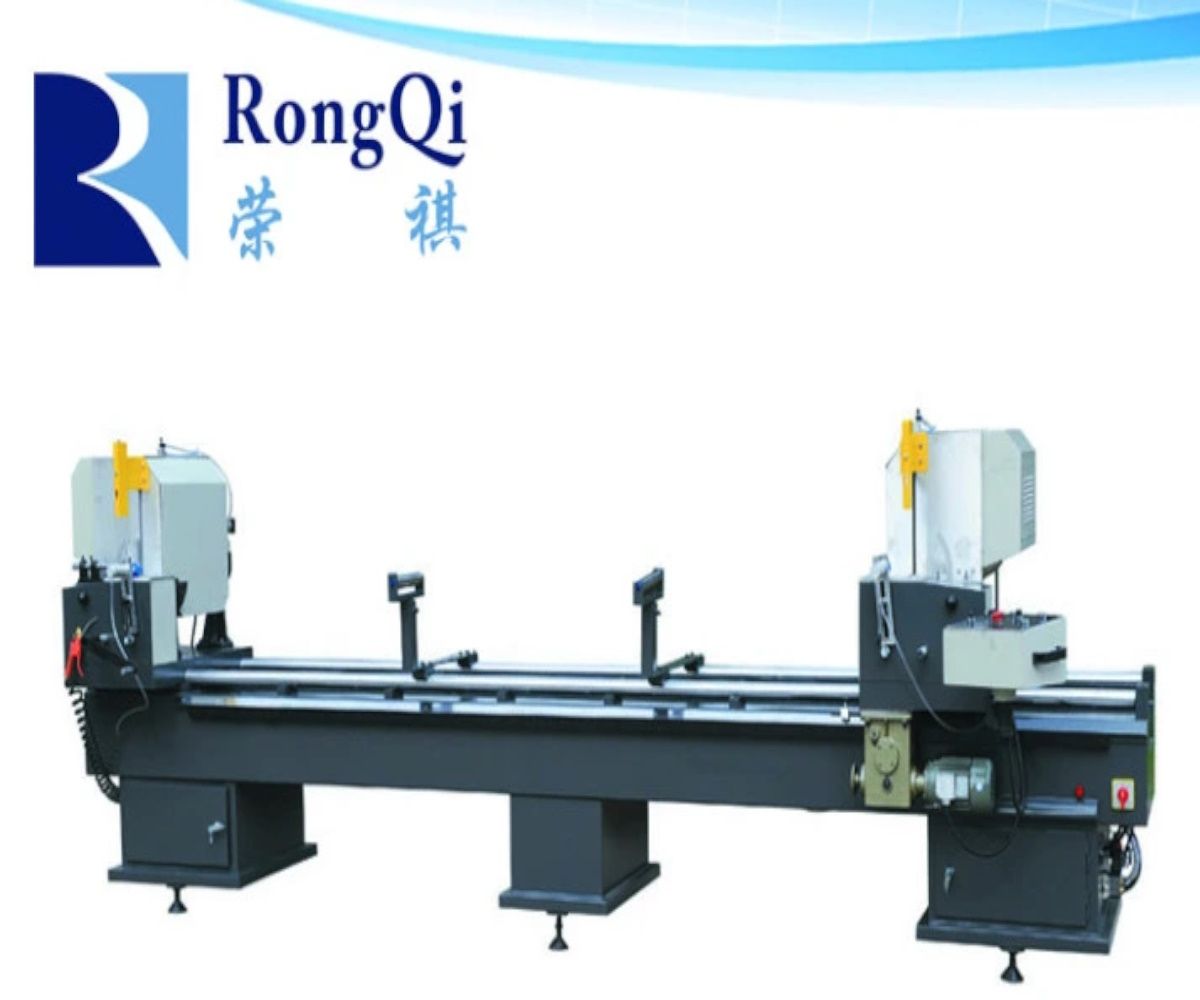

Aluminium Double Mitre Saw
By: Rongqi Machinery| Price | Available on request |
| Category | Profile Cutting Equipment |
| Manufacturer | Rongqi Machinery |
| Min Order Quantity | 1.00 Unit |
| Delivery Lead Time | As per order |
| Place of Origin | China |
| Supply Ability | Customization as required |
| Packaging Details | Standard export packing |
| Transportation Details | Road / Ship |
18.01.2026
Description
Features:
- Imported computer control system with the automatic measuring function
- Using ball bearing to keep the high precision
- Adopt the size compensation function and it can achieve high repeated location precision
| Power supply | 380V 50Hz |
| Power | 2x1.5kw 2800r/min |
| Operation air pressure | 0.5-0.8Mpa |
| Motor speed | 2840r/min |
| Blade specification | Φ350xΦ3.0x30mm |
| Cutting width | 200mm |
| Cutting length | 400-3700mm |
| Repeated locating length tolerance | ±0.2mm |
| Cutting profile surface plane | ≤0.10mm |
| Cutting angle tolerance | ±5' |
| Cutting profile surface roughness | Ra12.5µm |
| Contour dimension | 4600mm*1300mm*1550mm |
| weight | 1800kgs |
