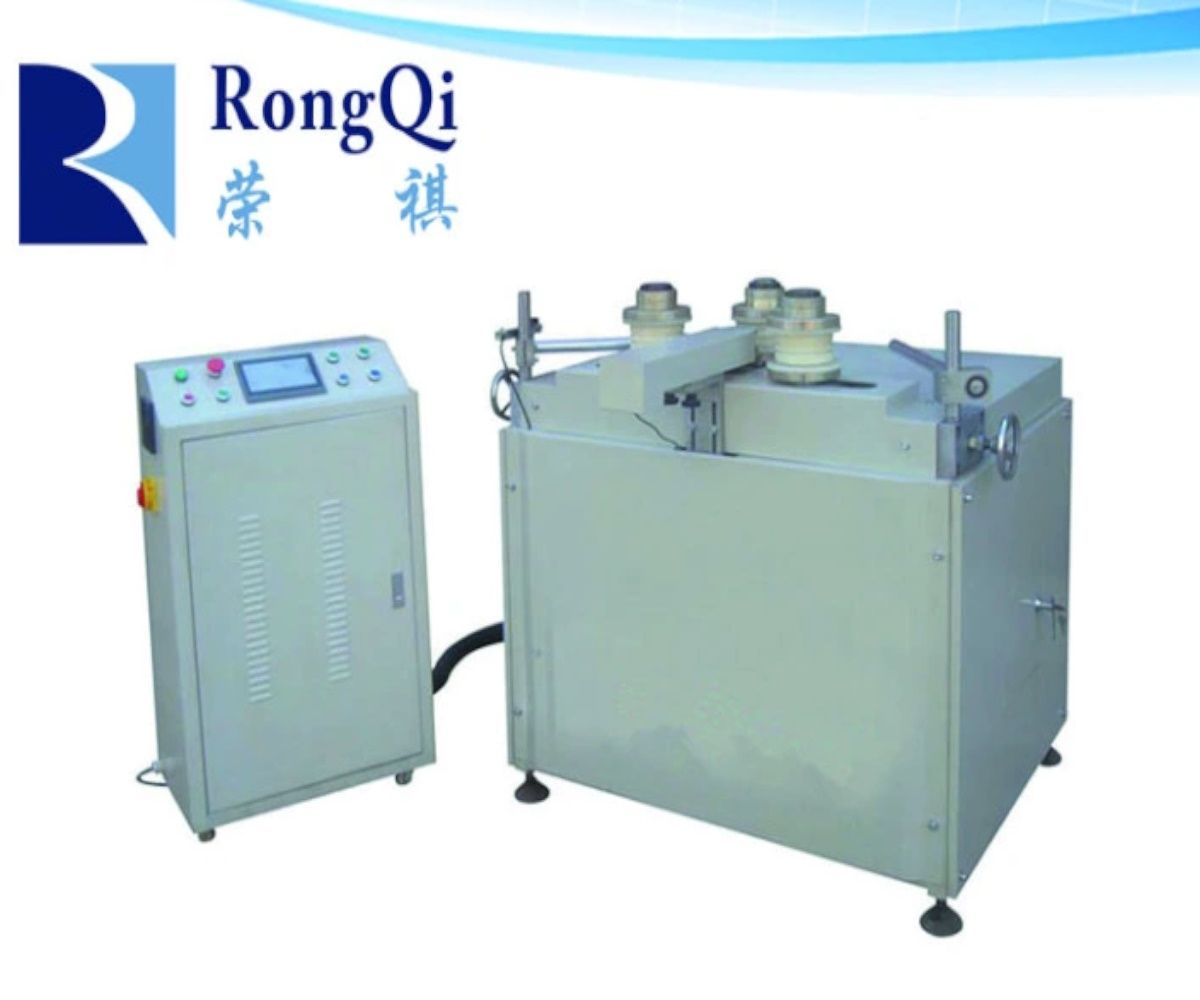

Aluminium Profile Bending Machine
By: Rongqi MachineryPrice | Available on request |
Category | Extrusion Stretcher |
Manufacturer | Rongqi Machinery |
Min Order Quantity | 1.00 Unit |
Delivery Lead Time | As per order |
Place of Origin | China |
Supply Ability | Customization as required |
Packaging Details | Standard export packing |
Transportation Details | Road / Ship |
Description
Features:
- Adopt four axis positioning system in domestic initiative, forming a closed space in the deformation area, max reduce the twist of profiles
- Imported CNC system, to precise calculate the size of arc. The error≤0.5 cm
- Hydraulic system adopt to advanced CNC technology and hydraulic control system, the precision≤0.02 mm
- Develop low pressure self-test rebound system, better remove the rebound
- Can easy operation for C type, U type, Oval, Circle, etc
Input Power | 3kw |
Power Supply | 380 50Hz |
Air Pressure | 0.4—0.8Mpa |
Oil Pressure | 20T(200Mpa) |
Roller Axis Speed | 1—8r/min |
Min Arc Radius | 170mm |
Max Roller Die Diameter | 200mm |
Roller Axis Diameter | 80mm |
Fixed Wheel Center Distance | 330—750mm |
Upperwheel Positioning Accuracy | 0.02mm |
Max Upperwheel Jouney | 280mm |
Overall Dimension | 1200*1100*1100 |
Weight | 1000kg |
