Coatings ( Logas 1A - 2B)

By: Scottish Chemical Industries
Price Available on request
Category Others
Manufacturer Scottish Chemical Industries
Min Order Quantity 500.00 Piece
Delivery Lead Time 7-10 Days
Place of Origin Maharashtra,India
Supply Ability Customization on Requirement
Packaging Details 100 Pcs / Box
Transportation Details Road / Ship Transport

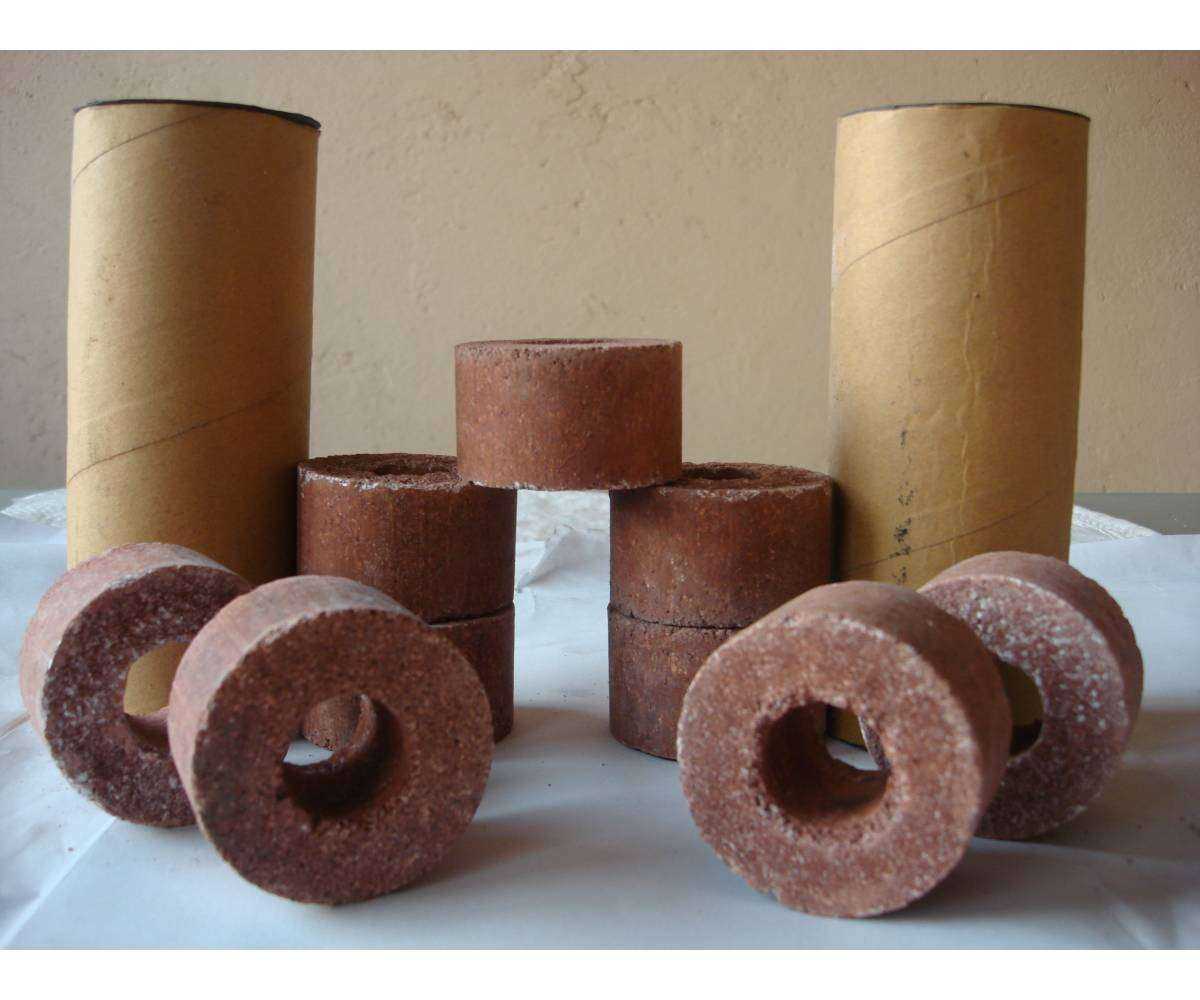

(A briquette used for the removal of hydrogen from copper and copper base alloys)

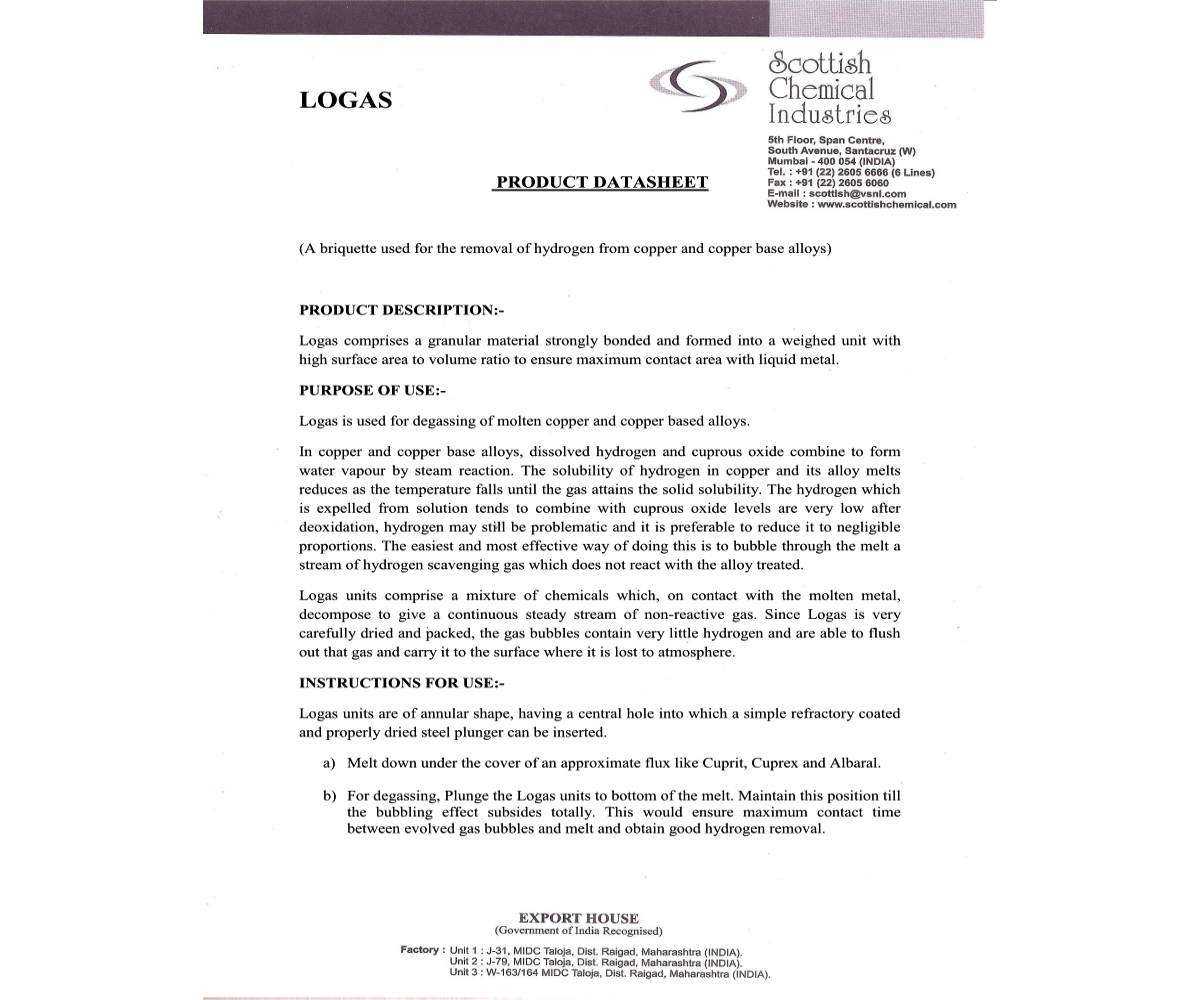

General Description

Logas comprises a granual material strongly bonded and formed into a weighed unit with high surface area to volume ratio to ensure maximum contact area with liquid metal. PURPOSE OF USE:- Logas is used for degassing of molten copper and copper based alloys. In copper and copper base alloys, dissolved hydrogen and cuprous oxide combine to form water vapor by steam reaction. The solubility of hydrogen in copper and its alloy melts reduces as the temperature falls until the gas attains the solid solubility. The hydrogen which is expelled from solution tends to combine with cuprous oxide levels are very low after deoxidation, hydrogen may still be problematic and it is preferable to reduce it to negligible proportions. The easiest and most effective way of doing this is to bubble through the melt a stream of hydrogen scavenging gas which does not react with the alloy treated. Logas units comprise a mixture of chemicals which, on contact with the molten metal, decompose to give a continous steady stream of non-reactive gas. Since Logas is very carefully dried and packed, the gas bubbles contain very little hydrogen and are able to flush out that gas and carry it to the surface where it is lost to atmosphere.

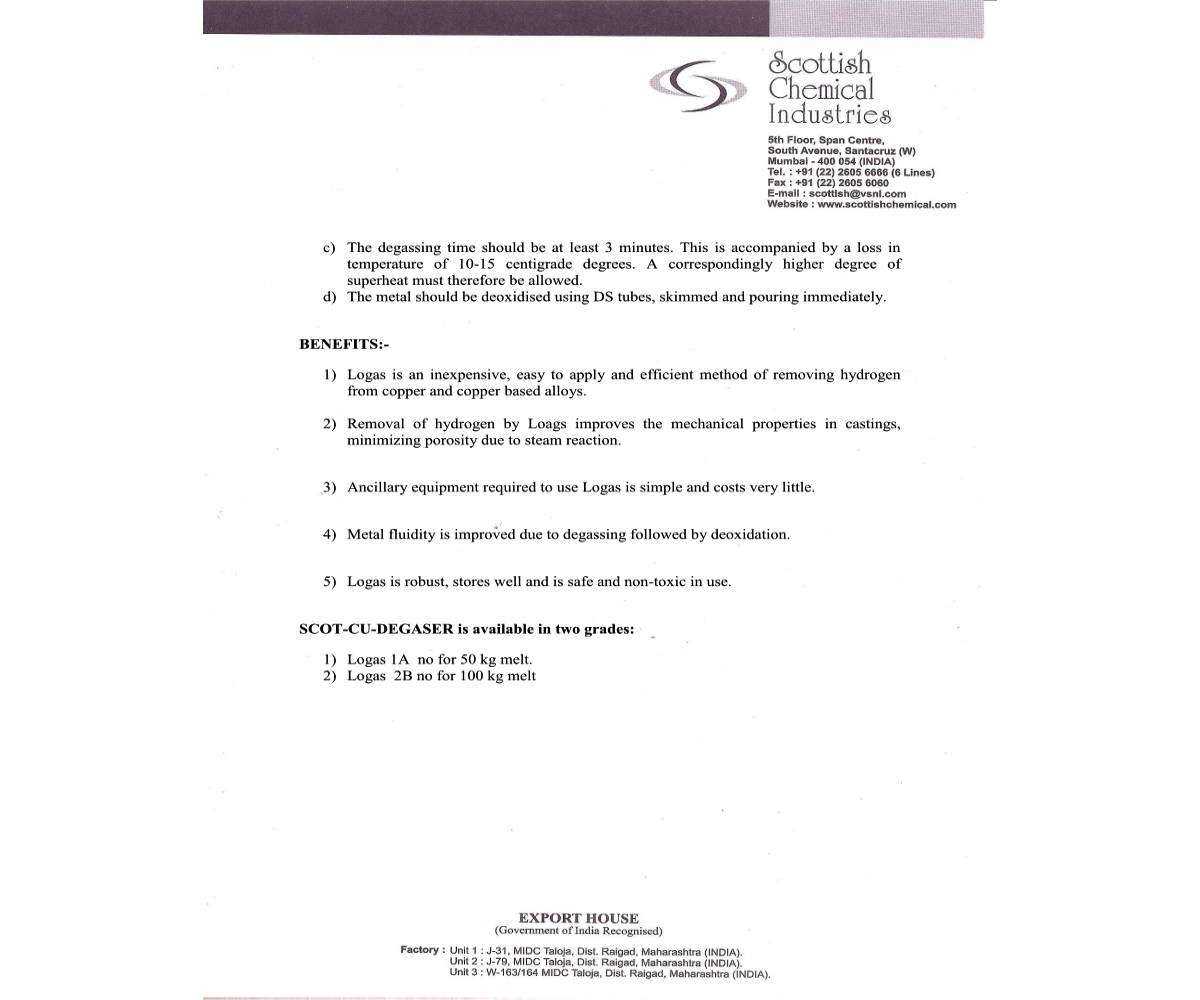

INSTRUCTIONS FOR USE:- Logas units are of annular shape, having a central hole into which a simple refractory coated and properly dried steel plunger can be inserted. a) Melt down under the cover of an approximate flux like Cuprit, Cuprex and Albaral. b) For degassing, Plunge the Logas units to bottom of the melt. Maintain this position till the bubbling effect subsides totally. This would ensure maximum contact time between evolved gas bubbles and melt and obtain good hydrogen removal. c) The degassing time should be at least 3 minutes. This is accompanied by a loss in temperature of 10-15 centigrade degrees. A correspondingly higher degree of superheat must therefore be allowed. d) The metal should be deoxidised using DS tubes, skimmed and pouring immediately. BENEFITS:- 1) Logas is an inexpensive, easy to apply and efficient method of removing hydrogen from copper and copper based alloys. 2) Removal of hydrogen by Loags improves the mechanical properties in castings, minimizing porosity due to steam reaction. 3) Ancillary equipment required to use Logas is simple and costs very little. 4) Metal fluidity is improved due to degassing followed by deoxidation. 5) Logas is robust, stores well and is safe and non-toxic in use.

*** Refer attachment for MSDS and Product Application data sheet
