  • 100 Kg Gas Oil Fired Aluminium Brass Crucible Melting Furnace
Magic Zoom small image

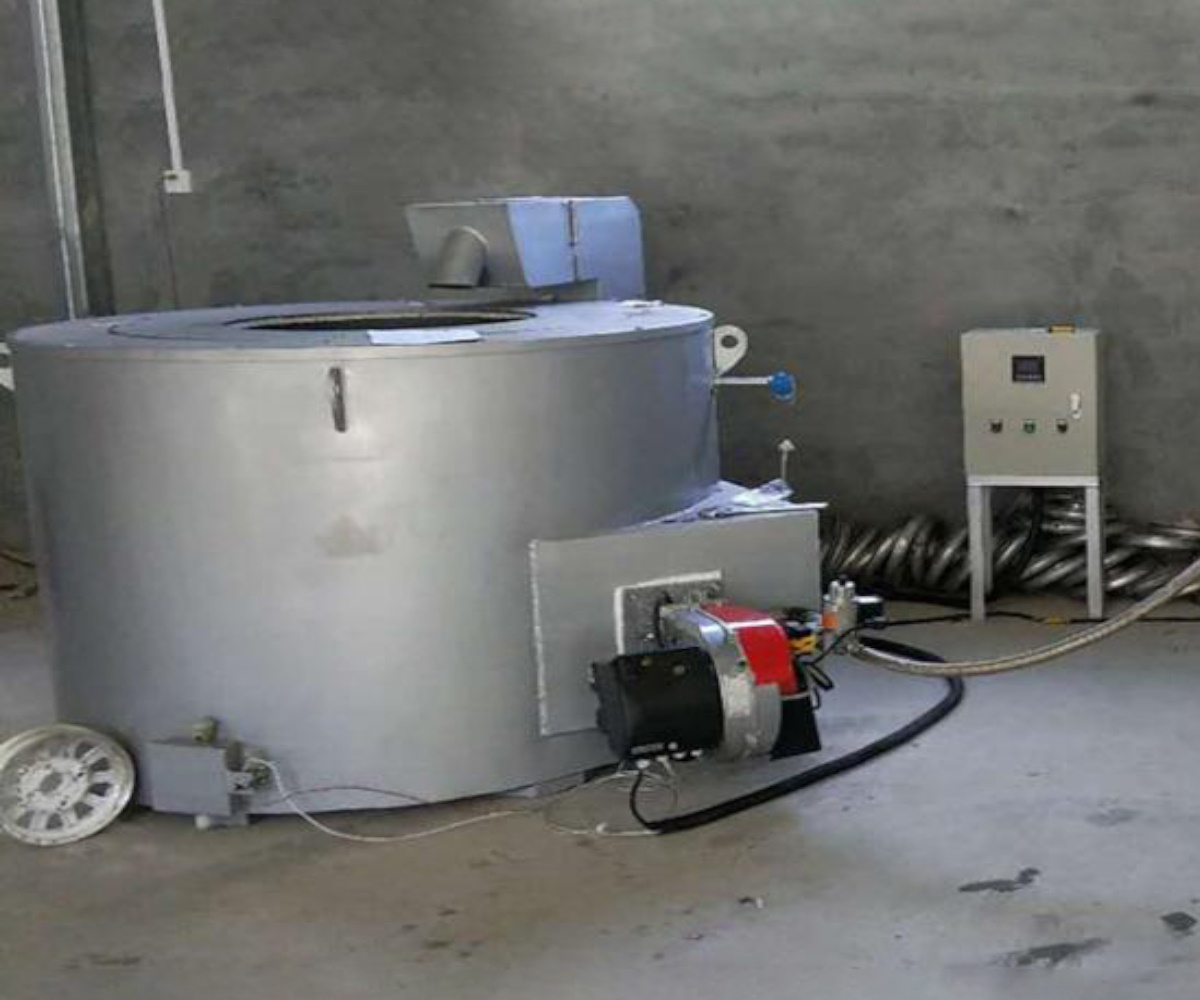

100 Kg Gas Oil Fired Aluminium Brass Crucible Melting Furnace

By: Shandong Yantong Energy Saving Equipment Co.,Ltd.
Price Available on request
Category Equipment
Manufacturer Shandong Yantong Energy Saving Equipment Co., Ltd.
Min Order Quantity 1.00 Unit
Delivery Lead Time As per order
Place of Origin China
Supply Ability Customization as required
Packaging Details Standard export packing
Transportation Details Road / Ship

Details

08.01.2026
Description

Application:

  • Aluminium melting
  • Brass Copper melting
  • Lead Zinc Melting

Fuel:

  • Natural gas
  • LPG Gas
  • Oil and so on


Features:

  • Model: GF-100KG, 200KG, 350KG, 500KG, 1000KG
  • Natural gas/oil fired type aluminum melting furnace
  • Max Heating Temperature: Aluminum 950 C; Copper 1350 C
  • 24 Hour continuous work and easy to operate and more stable
  • Design different type capacity melting furnace
Technical Parameters
Model
 YTGF-100 YTGF-200 YTGF-350 YTGF-500 YTGF-1000 YTGF-1500
Melt capacity 100kg 200 kg 350 kg 500 kg 1000kg 1500kg
Input Voltage 220V or 3 x 380V, 50/60HZ
Burner (1000Kcal/H) 10 15 30 60 100 150
Aluminium loss rate % Less than 3%
Heating Temperature Aluminum 950 C - Copper 1350 C
Natural Gas cost 80 m³ gas per ton Aluminum melting
Melting Time 1.5 ~ 2 hours
Crucible SIC Crucible
