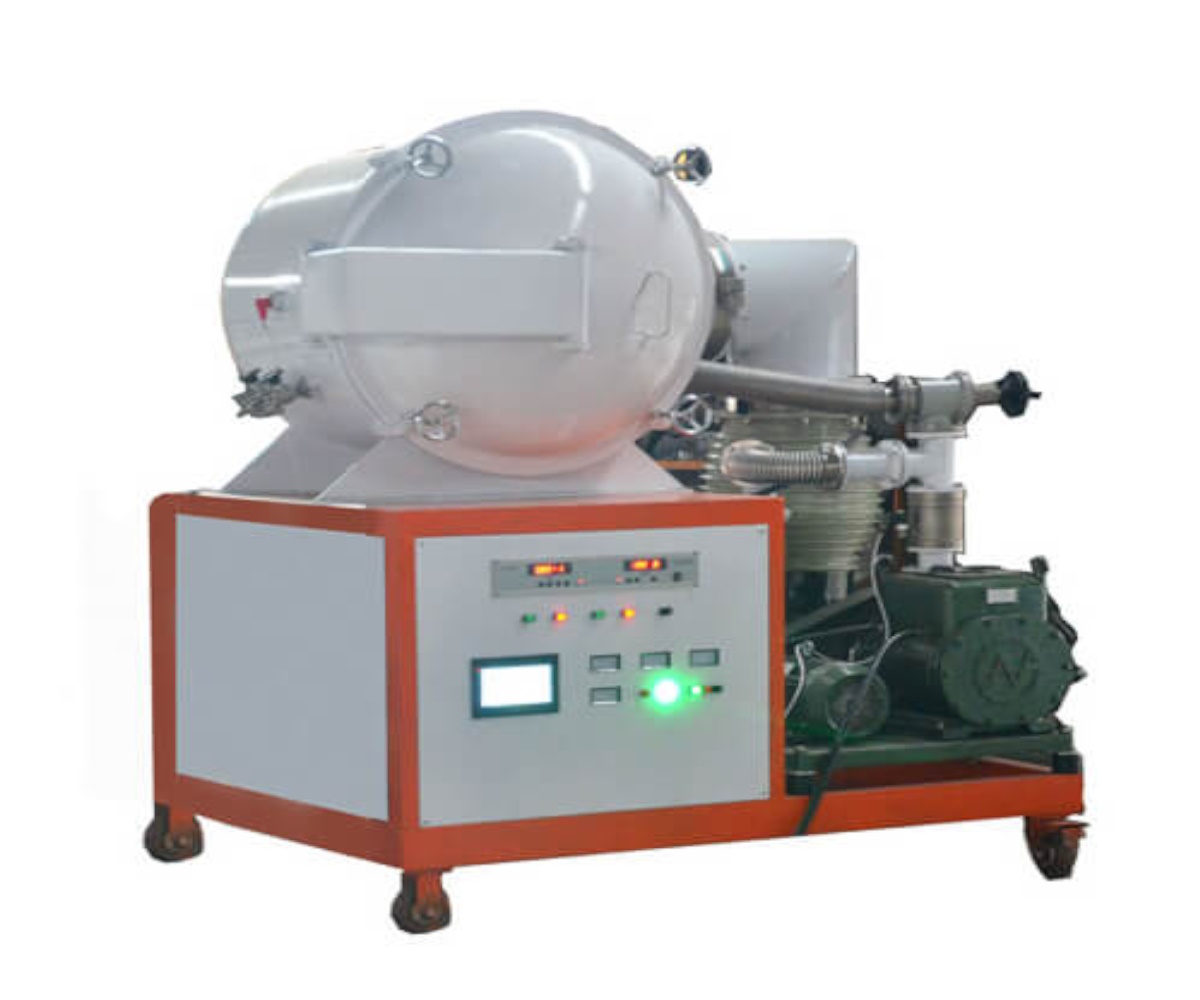

Vacuum Heat Treatment Furnace

Description

Technical Parameter

1. Type: Horizontal single room structure vacuum sintering furnace

2. Power: 3 x 380V, 50HZ

3. Chamber Size: 800 x 800 x 800 mm

4. Insulation Material: High purity alumina fiber

5. Heating Element: high quality silicon carbide rod

6. Working Temperature: < 1100 ℃

7. Max. working temperature: 1200℃

8. Temperature control system: PID type auto temperature control system. 4 temperature showing, One control, 3 shown.

9. Power: 70KW

10. Max. Vacuum rate: 6.7×10-4Pa

11. Working vacuum rate:6.0*10-3Pa

12. Vacuum system: Rotary vane pump + roots pump + diffusion pump unit

13. Protect gas: The furnace body is reserved with air inlet, which can pass any inert gas

14. Cooling type: Water cooling

15. Valve control: Auto Control high vacuum valve

16. There is window for checking inside.

17. Capacity: Max 500 kg Per Time

18. Protection Gas: Yes, With protection gas system

19. Furnace size: 2 x 2 x 2.2 meter

20. Weight: About 2500 kg

Application :

Vacuum Heat Treatment Furnace, vacuum Sintering furnace, sintering furnace, Vacuum annealing furnace, vacuum hardening furnace, Graphitization Vacuum Furnace, Vacuum Melting.
