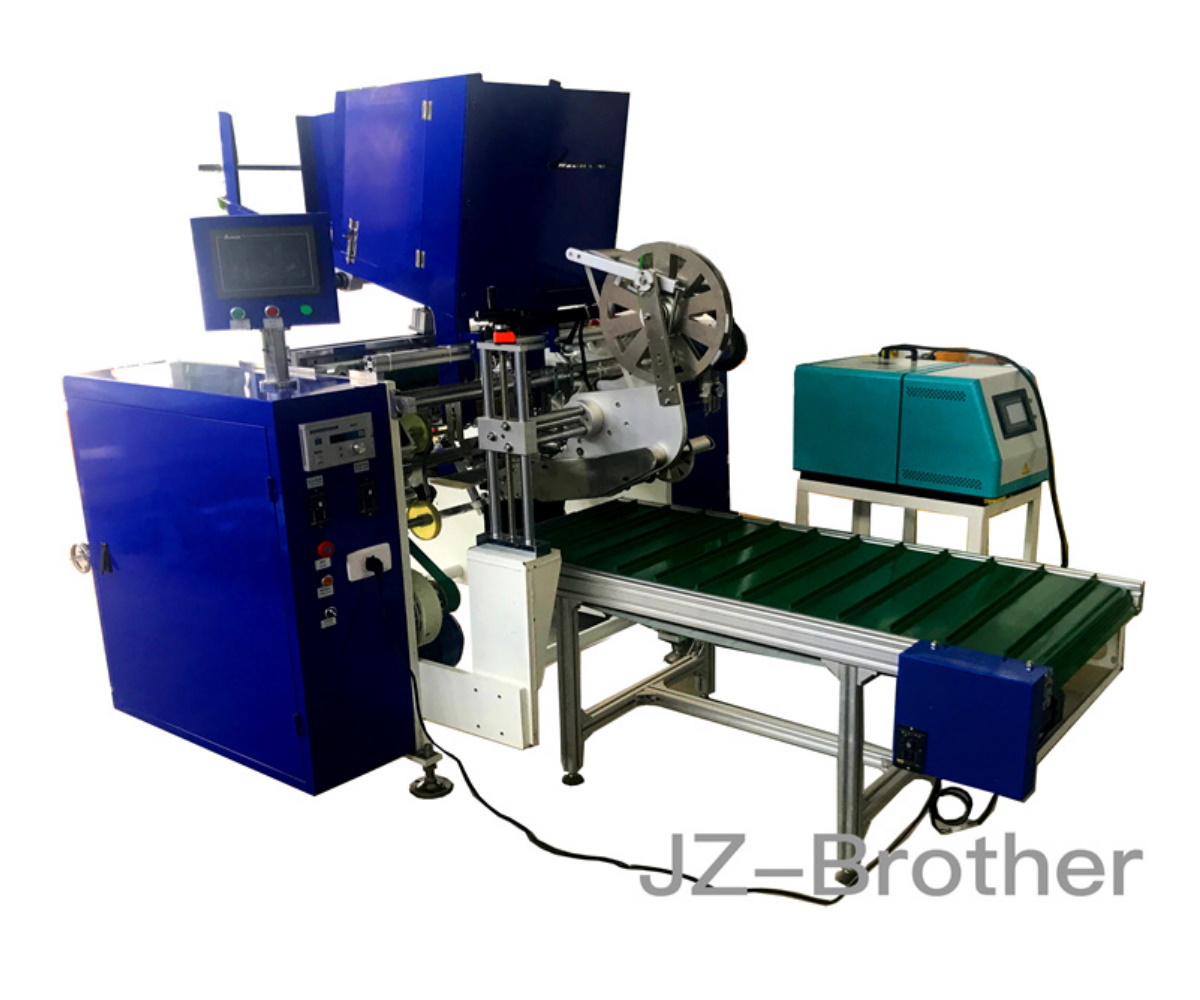

Automatic Aluminum Foil Rewinder

Automatic Aluminum Foil Rewinder

By: Wenzhou Jieze Packaging Machinery Co. Ltd.
Price Available on request
Category Equipment
Manufacturer Wenzhou Jieze Packaging Machinery Co. Ltd.
Min Order Quantity 1.00 Unit
Delivery Lead Time As per order
Place of Origin China
Supply Ability Customization on Requirement
Packaging Details Standard Export Packing
Transportation Details Road/Ship

26.10.2024

Description

Electronic part for the machine:

 PLC

 OMRON, Japan

 METER COUNTER

 OMRON, Japan

 POWER SWITCH

 OMRON, Japan

 INVERTER

 DELTA, Taiwan

 TOUCH SCREEN

 DELTA, Taiwan

 LOW VOLTAGE APPARATUS

 SCHNEIDER, Japan

Main specification:

 Model

 JZ-500L-4

 Material

 Aluminum foil,Baking paper

 Width of material

 300-500mm

 Max.dia of Jumbo roll

 600mm

 Rewinding length

 2.5-100m/roll

 Thickness of the foil

 0.008-0.05mm

 Speed

 0-180m/min

 ID Core of Jumbo roll

 3”(76mm)

 ID Core of rewinded roll

 One set in free cost

 Power of main motor

 2.2 KW

 Overall dimension

 1520 x 2200 x 2200mm

 Dot-line function

 Yes

 Weight

 1.6T

 Hot melt glue system

 The hot melt glue will auto sticking on the paper core and the foil will auto loading

Auto label sticking system

 In outside of the roll, there is a paper label to stick on the surface of the foil.
