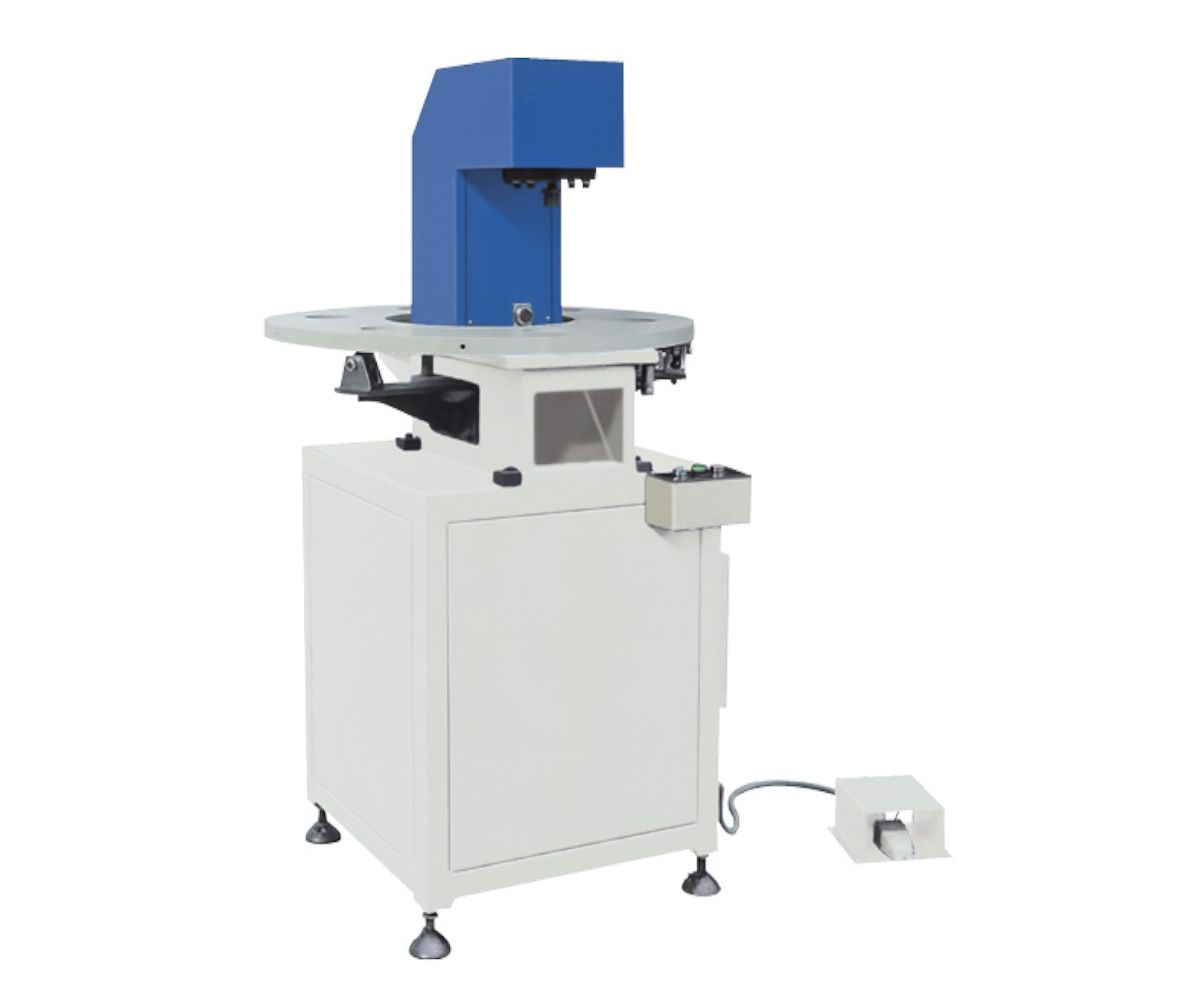

Aluminium 6-Position Punching Machine

By: Woke Machinery Co., Ltd
Price Available on request
Category Equipment
Manufacturer Woke Machinery Co., Ltd
Min Order Quantity 1.00 Unit
Delivery Lead Time As per order
Place of Origin China
Supply Ability Customization as required
Packaging Details Standard export packing
Transportation Details Ship

Details

24.08.2024

Description
  • Used for punching precedure in the  manufacturer of aluminum window and door
  • Used for various aluminum profile slots and holes processing
  • Adopt disk-type and six-station worktable,equipped with six sets of mould, each mould can be used at any time by the worktable rotating,which greatly increase the production efficency, high hydraulic power and good processing quality
Technical Parameter
Input Power 2.2KW
Voltage 380V/50Hz
Working pressure 16 MPa
Max punching pressure 50 KN
Oil tank capacity 20L
Punching stroke 30mm
Overall dimension 800 x 800 x 1400mm
Weight 500kg
