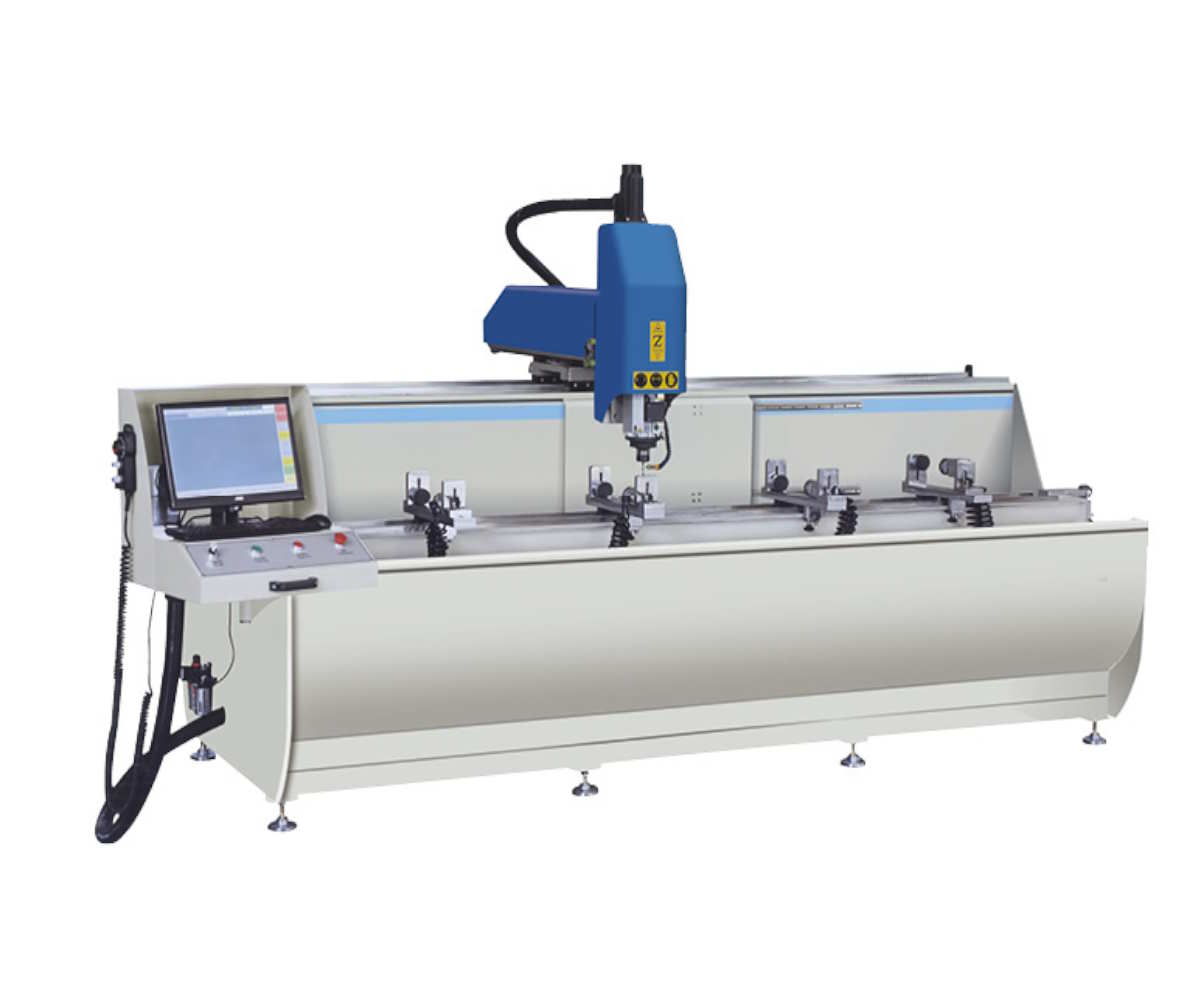

CNC-3000 Aluminum Profile Drilling Milling Machine

By: Woke Machinery Co., Ltd

Price	Available on request
Category	Equipment
Manufacturer	Woke Machinery Co., Ltd
Min Order Quantity	1.00 Unit
Delivery Lead Time	As per order
Place of Origin	China
Supply Ability	Customization as required
Packaging Details	Standard export packing
Transportation Details	Ship

Details

Valid Upto

24.08.2024

Description

Technical Parameter
Total Power	6KW
Voltage	380V/50Hz
Working air pressure	0.5-0.8MPa
Main axis power	3KW
Max rotary speed	18000r/min
X-axis route	3000mm
Y-axis route	500mm
Z-axis route	350mm
X-axis speed	50000mm/min
Y&Z axis speed	15000mm/min
Overall dimension	4180 x1600 2200mm
Weight	1400kg
