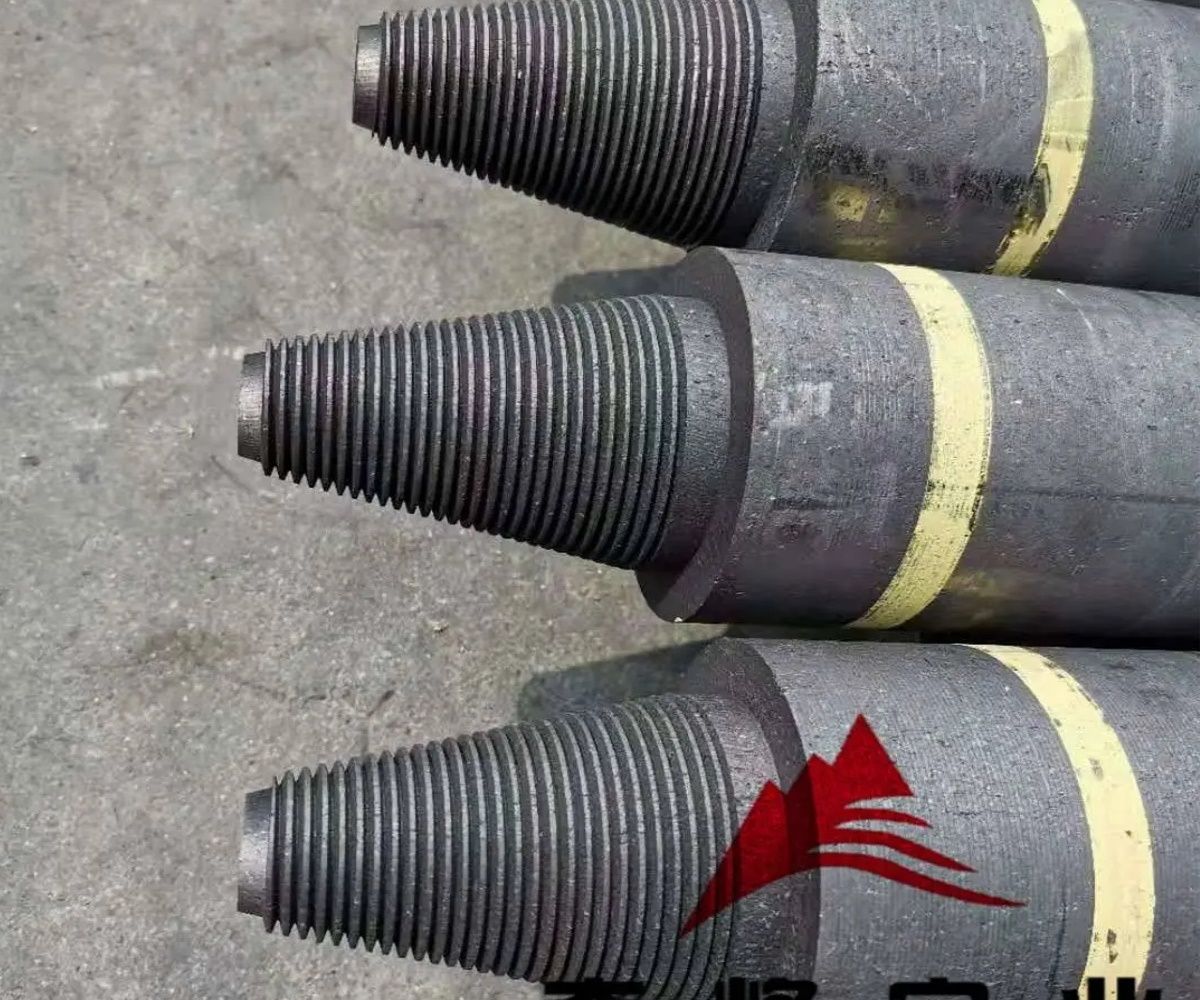

Graphite Electrode

By: Handan Qifeng Carbon Co.,Ltd
Price Available on request
Type Regular power graphite electrode
Application Steel Making/Smelting Steel
Length 1400~2800mm
Resistance (μΩ.m) <8.0
Apparent Density (g/cm³ ) >1.60
Thermal Expansion (100-600℃) x 10-6/℃ <2.8
Flexural Strength (N/㎡) >8.4 Mpa
Category Others
Manufacturer Handan Qifeng Carbon Co.Ltd

25.00 MT

As per Order


3000 Tons per Month

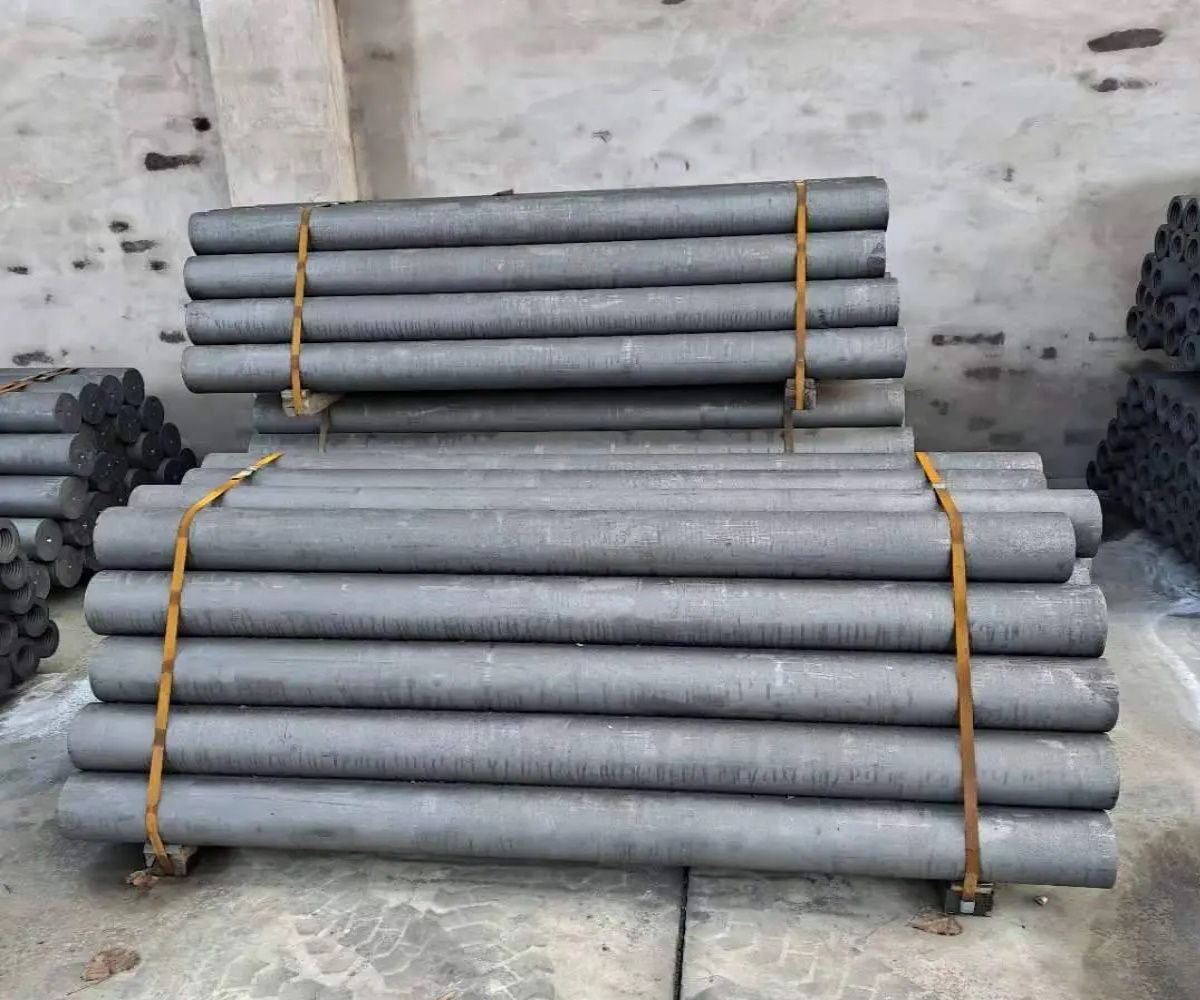

Standard wooden pallets or according to customer's requirement.

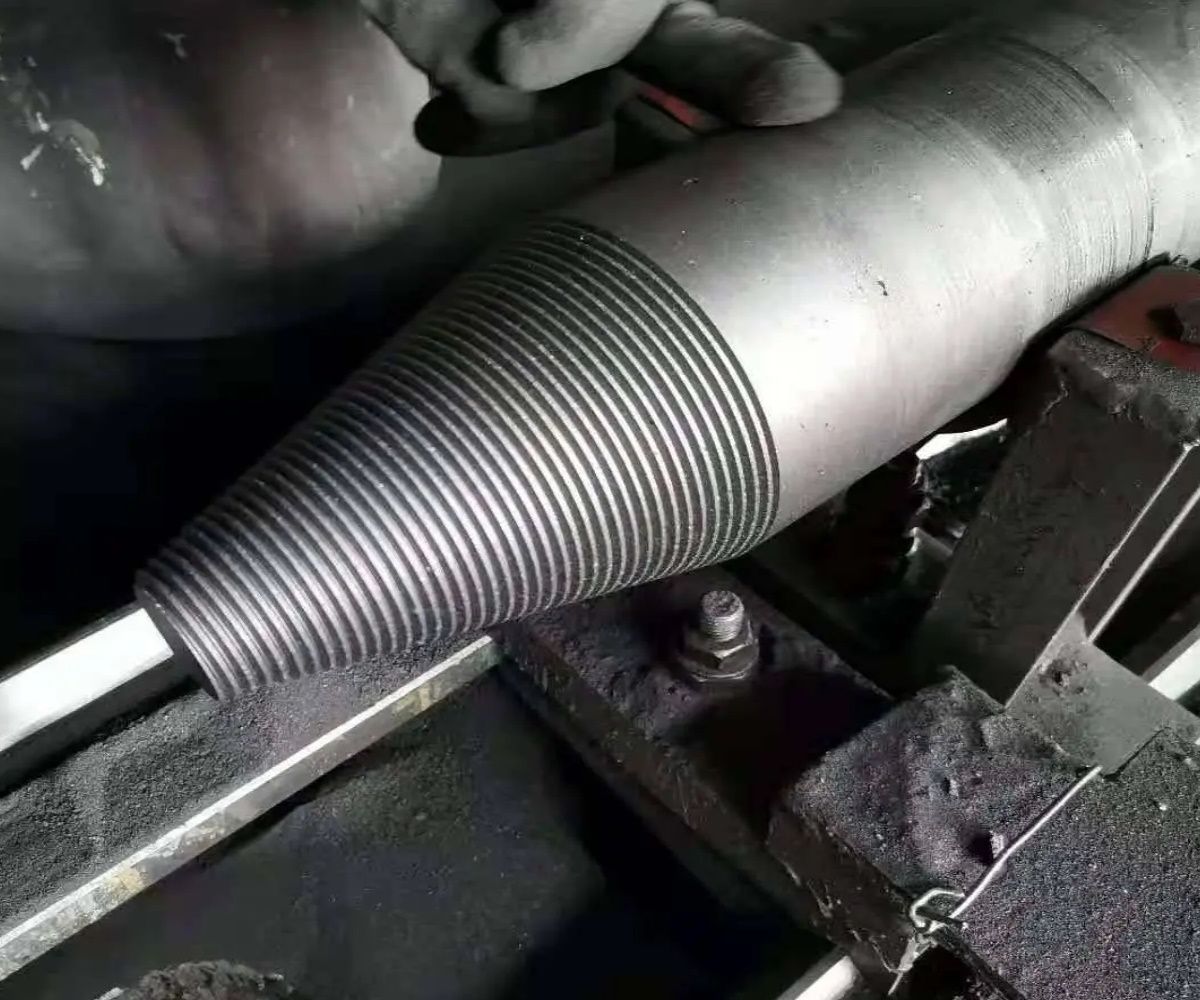

Graphite electrode mainly use petroleum coke, needle coke as raw material, coal asphalt binder, calcination, ingredients, kneading, molding, baking and graphitization, machining and made, which is released in electric arc furnace in the form of arc conductor of electricity to heat melting furnace charge, according to its quality index, can be divided into ordinary power graphite electrode, high power graphite electrode and ultra high power graphite electrode.The main raw material of graphite electrode production is petroleum coke, ordinary power graphite electrode can add a small amount of asphalt coke, petroleum coke and asphalt coke sulfur content can not exceed 0.5%.Needle coke is also needed to produce high power or ultra high power graphite electrodes.The main raw material for aluminum anode production is petroleum coke, and the sulfur content should not exceed 1.5% ~ 2%.
1.Ash: 0.3% max
2.Raw Material: Needle Coke,petroleum coke
3.Superiority: Low Consumption Rate
4.Color: Black Gray
