Price | Available on request |
Category | Equipment |
Manufacturer | PRD Rigs India Pvt. Ltd. |
Min Order Quantity | 1.00 Unit |
Delivery Lead Time | As per Order |
Place of Origin | Tamil Nadu, India |
Supply Ability | Customization as required |
Packaging Details | Standard export packing |
Transportation Details | Road / Ship |

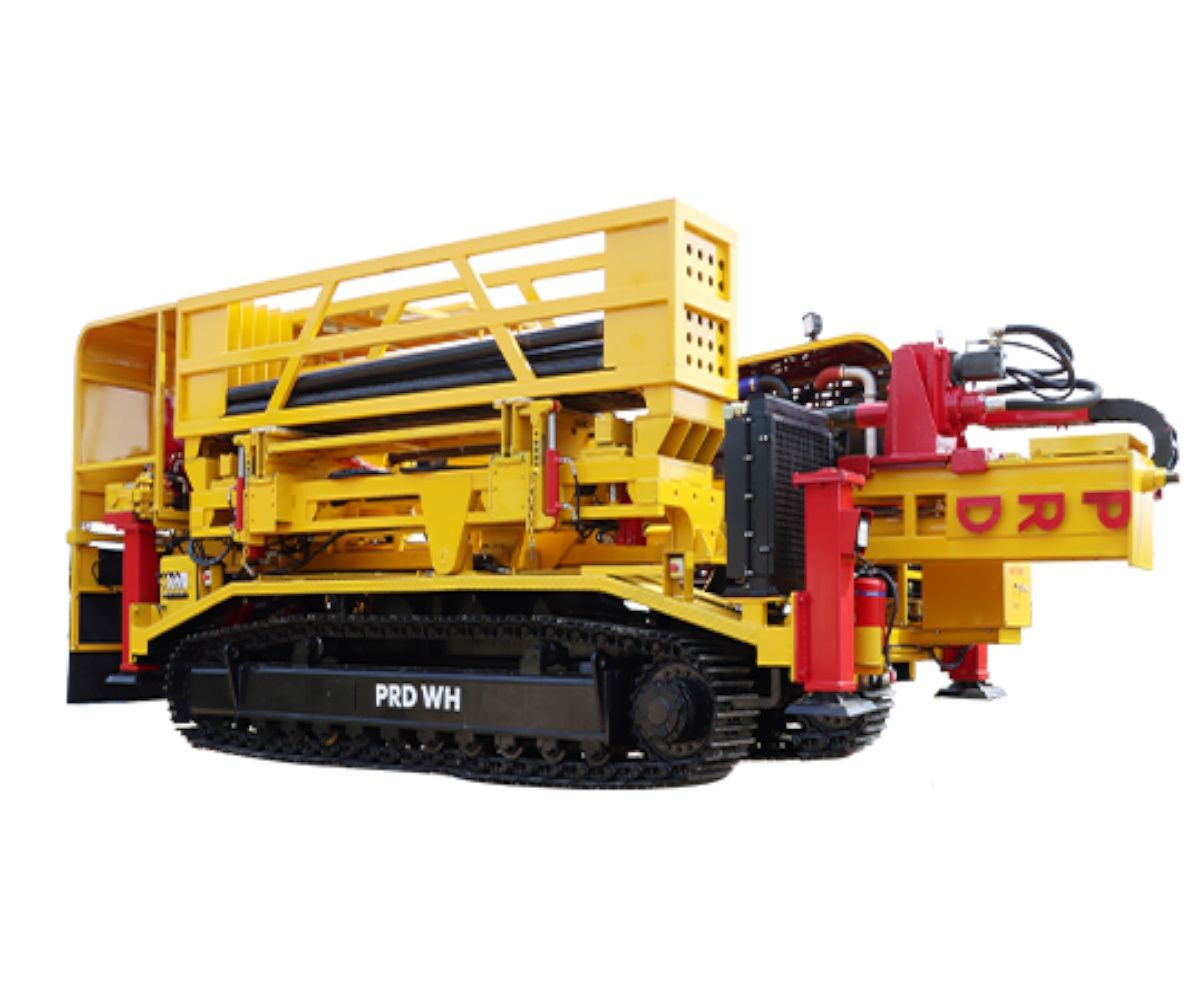

The PRD Weep Hole drilling rig is specialized for creating horizontal weep holes for dewatering purposes, reaching depths of up to 250 meters.
Application | Horizontal dewatering |
Drilling Method | DTH |
Flushing Medium | Air |
Drilling Depth | 250 m |
Hole Diameter | (127 mm - 203 mm) 5" - 8" |
Rod Handling Method | Hands free rod handling system |
Rotary Head Type | Top drive |
Rotary Head Travel | 4000 mm |
Rod Break out method | Hydraulic operated dual Rod clamp |
Engine - Model | Suitable Diesel Driven - 180 hp |
Hydraulic system | Max system pressure: 210 bar |
Hydraulic tank capacity: 560 litres |
