Description

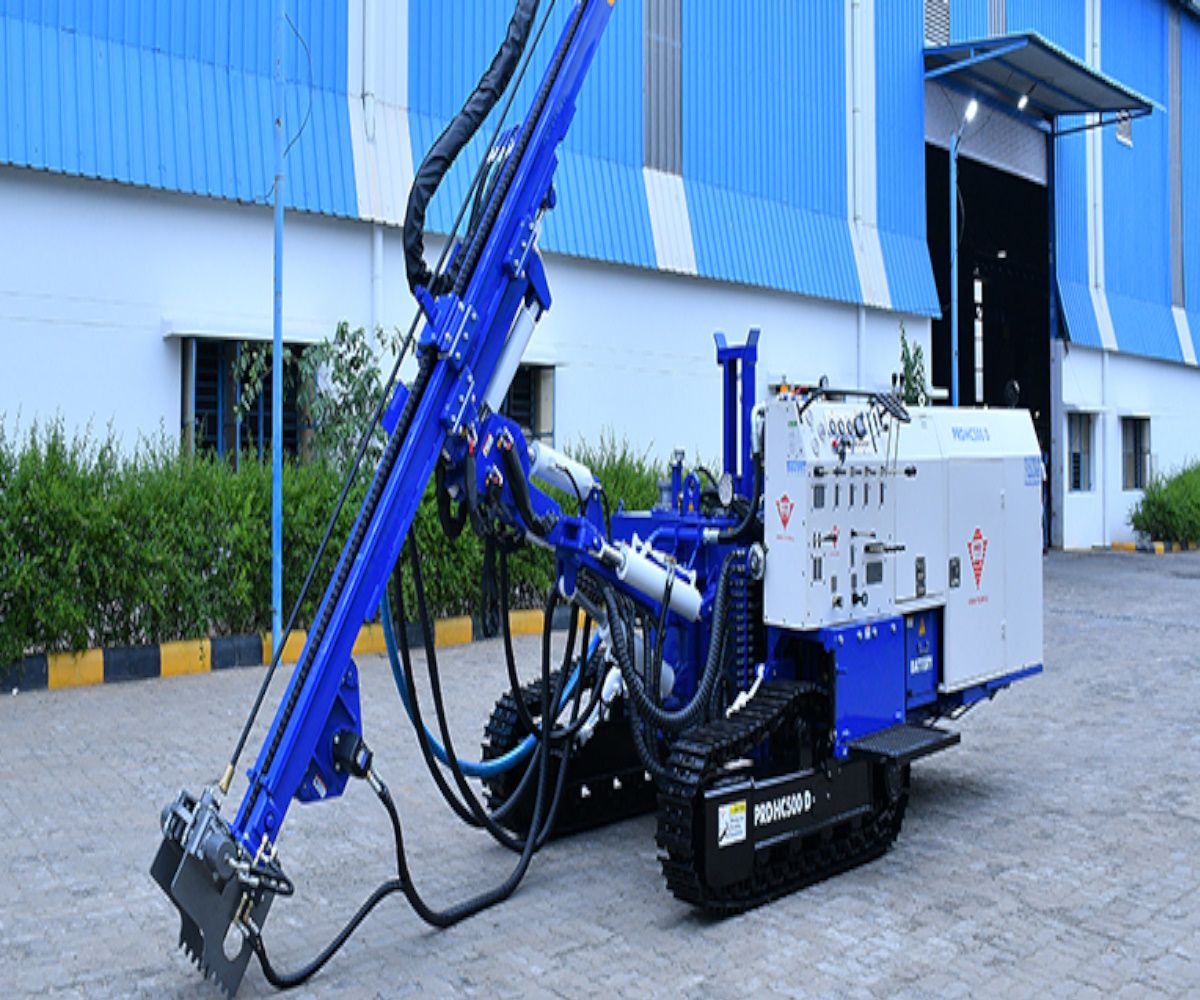

The PRD HC 500 D is designed specifically for quarry drilling applications. With a pull-down force of 1500 kgf (14.7 kn) and a drilling method of Top Hammer. it is capable of drilling holes with a diameter range of 38 mm to 45 mm (1.4" to 1.7"). The drill rod diameter is H22 and the maximum drill depth is up to 3 m (10 ft). The rig offers a pull-up force of 1500 kgf (14.7 kn) and features diameter angle options of 45°, 90°, and 180° for enhanced drilling versatility. Optional attachments such as a dust collector and dust suppression system are available to meet specific requirements.
Application |
Drilling for blasting in Quarries Dimension stone industry |
Drilling Method |
Top hammer |
Flushing Medium |
Air |
Drilling Depth |
10 feet |
Hole Diameter |
38 - 45 mm |
Rotary Head Type |
Top drive head |
Engine - Model |
Diesel Driven Prime Mover 86 hp |
Hydraulic system |
10 kw |
Under carriage |
5 ton* |
Dimension |
l x w x h: 5280 x 1920 x 2500 mm |
