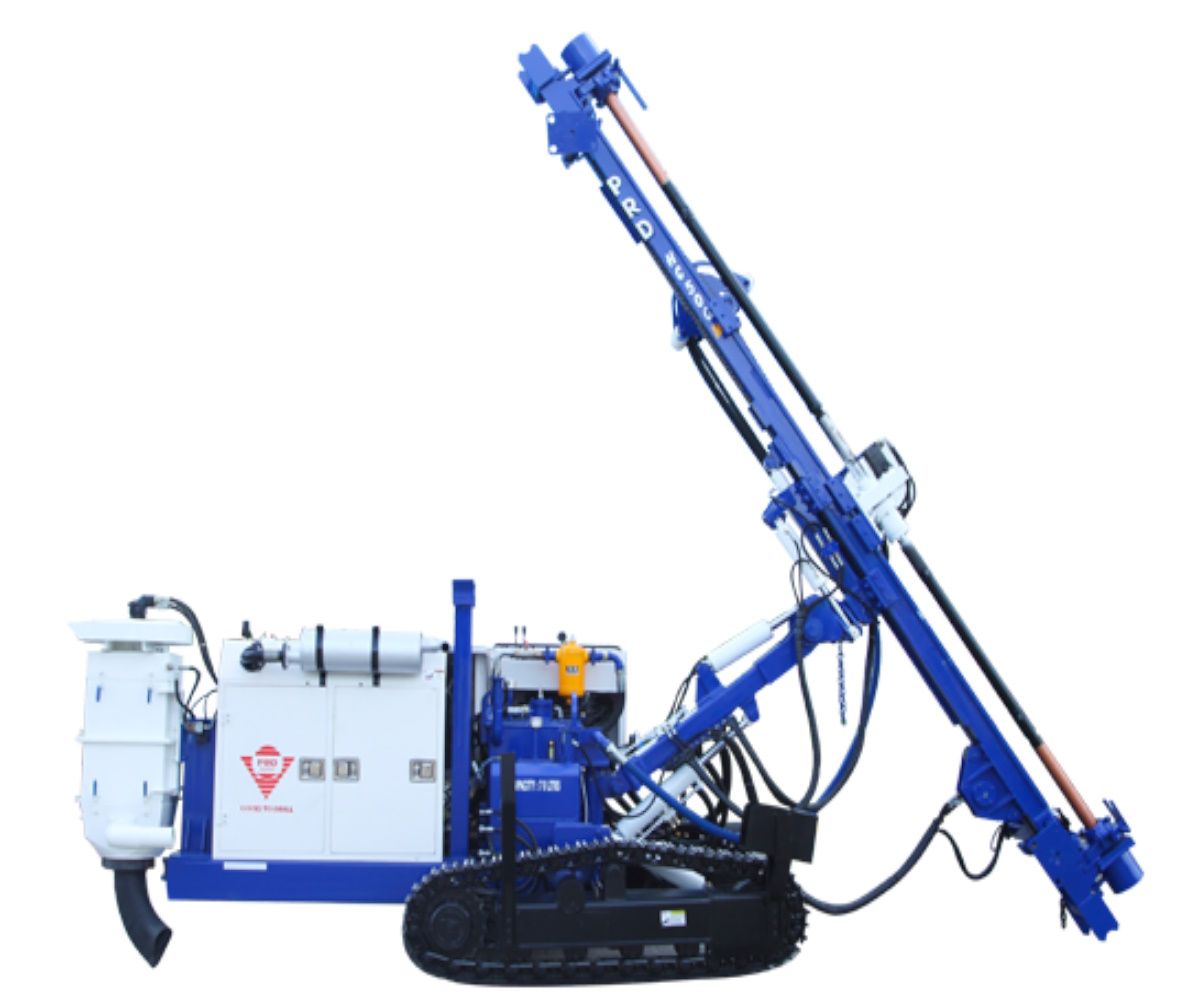

PRD Hydraulic Rig

By: PRD Rigs India Pvt. Ltd.
Price Available on request
Category Equipment
Manufacturer PRD Rigs India Pvt. Ltd.
Min Order Quantity 1.00 Unit
Delivery Lead Time As per Order
Place of Origin Tamil Nadu, India
Supply Ability Customization as required
Packaging Details Standard export packing
Transportation Details Road / Ship

Details

20.11.2025
Description

The PRD hydraulic rig is designed specifically for quarry drilling applications. With a pull-down force of 1500 kgf (14.7 kn) and a drilling method of DTH it is capable of drilling holes with a diameter range of 90 mm to 127 mm (3 1/2" to 5"). The drill rod diameter is 76 mm (3") and the maximum drill depth is up to 15 m (50 ft). The rig offers a pull-up force of 1500 kgf (14.7 kn) and features diameter angle options of 45°, 90°, and 180° for enhanced drilling versatility. Optional attachments such as a dust collector and dust suppression system are available to meet specific requirements.

Application Drilling for blasting in Quarries
Dimension stone industry
Drilling Method DTH
Flushing Medium Air
Drilling Depth 15 m
Hole Diameter 89 – 125 mm (3 ½” - 5")
Rotary Head Type Top drive head
Rotary Head Travel 4280 mm
Engine - Model Suitable Deck engine 55 hp
Hydraulic system Maximum system pressure: 2030 psi
Hydraulic tank capacity: 160 litres
Under carriage 5 ton*
Dimension l x w x h: 5280 x 1920 x 2500 mm
Optional features Dust collector
  Dust suppression system
  Centralised lubrication system
