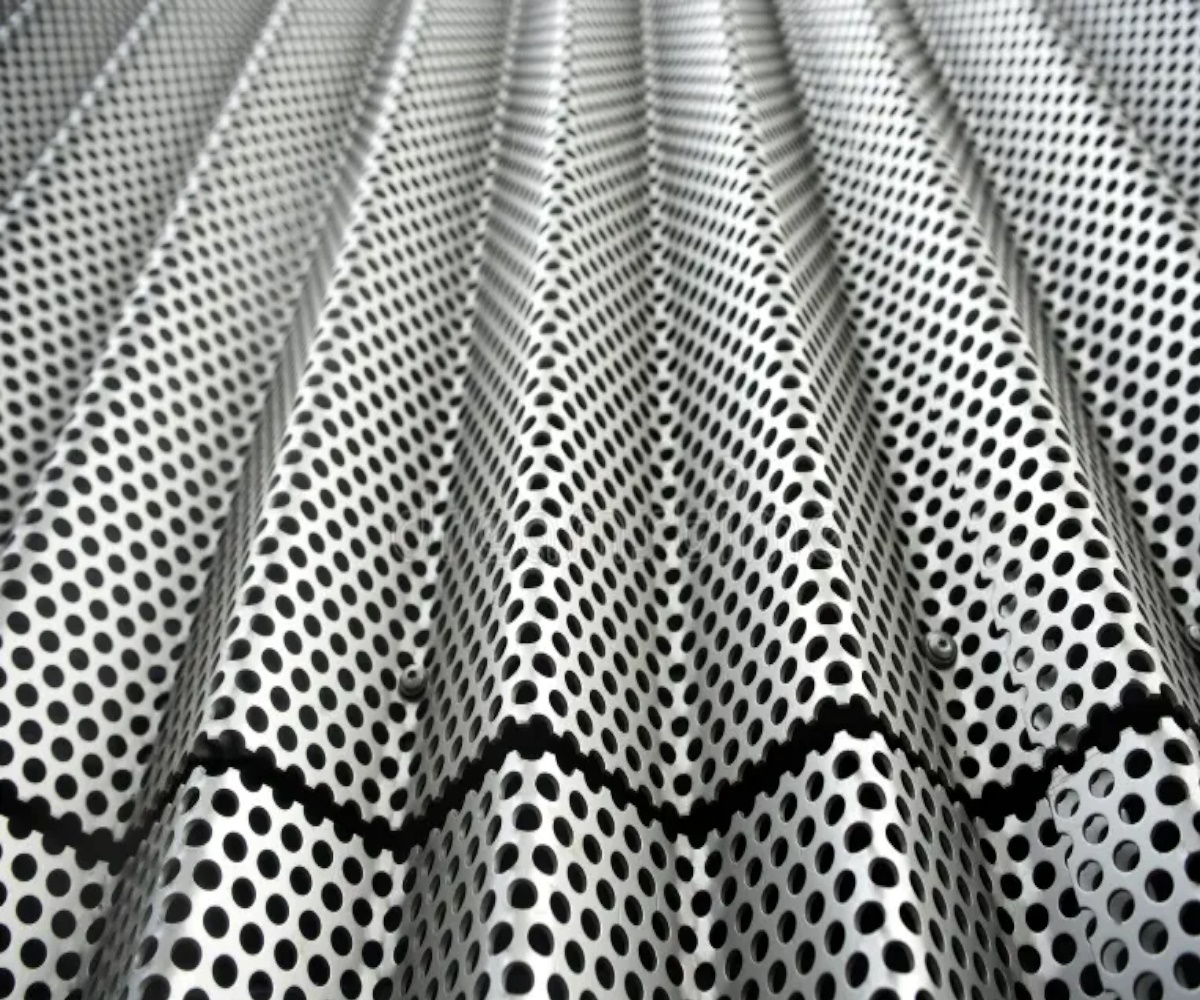

Aluminum Corrugated Composite Panel

By: Viva Composite Panel Pvt. Ltd.
Price Available on requeest
Category Finished Products
Manufacturer Viva Composite Panel Pvt. Ltd.
Min Order Quantity 50.00 Tons
Delivery Lead Time As per order
Place of Origin India
Supply Ability Customization as required
Packaging Details Standard export packing
Transportation Details Road / Ship

Details

16.11.2025
Description

Properties :

Property

Test Method

Units

Aluminium Corrugated Core (Class A2+)

ACCP Thickness

Measurement

mm

4

Coil Thickness

Measurement

mm

0.5

ACCP Weight

Measurement

Kg/m2

3.8

Core Density

Measurement

–

2.74

Peel Test

ASTM D 903

N/mm

Min. 10

ACCP Tensile Strength

ASTM D 638

Mpa

55

ACCP Elongation

ASTM D 638

%

Min. 6

ACCP Yield Strength

ASTM D 638

MPa

47

Thermal Expansion

ASTM D 696

mm/M/100°

2.4

Heat Transmission Coefficient (U)

ASTM C 1363

W/m²K

5.53

Fire Classification

EN 13501-1

–

Class A2-s1-d0

Fire Rating

DIN 4102

–

Class A2

Sound Transmission Loss

ASTM E 90

dB

25

Sound Absorption Factor

ISO 354

–

0.05
