Price | Available on requeest |
Category | Finished Products |
Manufacturer | Viva Composite Panel Pvt. Ltd. |
Min Order Quantity | 50.00 Tons |
Delivery Lead Time | As per order |
Place of Origin | India |
Supply Ability | Customization as required |
Packaging Details | Standard export packing |
Transportation Details | Road / Ship |

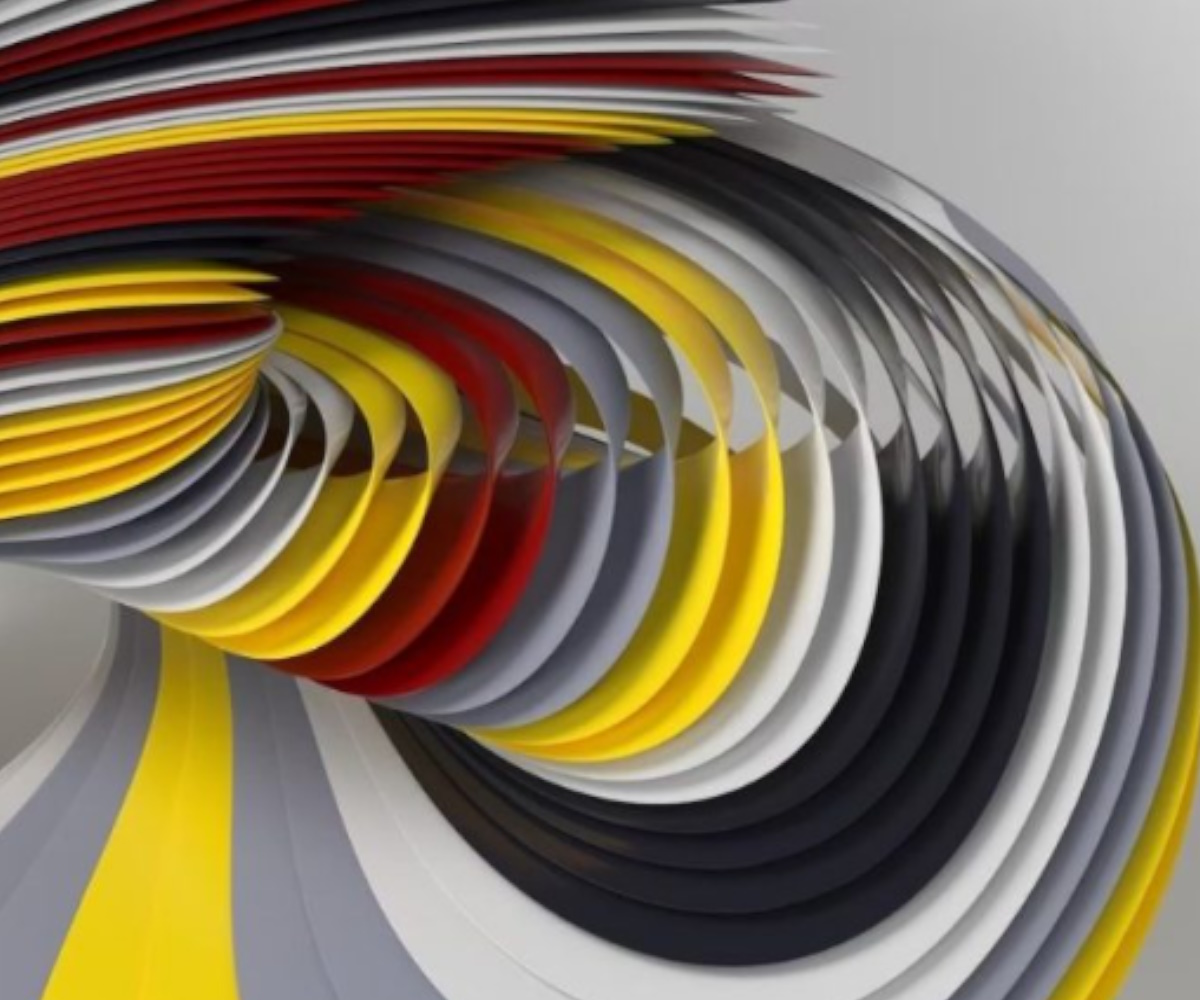

Features of Colour-Coated Aluminium Coil
The coils show extreme stability in heat as aluminium can resist up to 660 degrees.
Aesthetically eclectic in appearance.
It has uniformity in colour.
Cutting, slitting, arching, and drilling are all possible with Viva’s colour-coated aluminium
The popularity of aluminium coils is increasing day by day, and these colour-coated coils add up to the versatility of these sheets. Viva is a leading exporter of aluminium coils.
With better logistics, product expertise, and an unrivalled global network and supply partner Viva ACP has become the leading exporter of ACP sheets and products related to it.
Product Specification and Size :
Standard Specification: YS/T 431, GB/T 17748, Mill’s standard, Mutually agreed standard, Base material conforms to GB/T 3880, ASTM B209 or EN 485.
Alloy and Temper
Alloy |
Temper |
Remarks |
1100 |
H42, H44, H46, H48 |
★Temper H12, H14, H16, H18, H22, H24, H32 and H34, for base material are provided as per the client’s request and mutually agreed. |
3105 |
||
5005 |
Chemical Composition (For Reference)
Chemical Composition conforms to Chinese, American and European standard specification
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Others: Each |
Others: Total |
Al: Min. |
5005 |
0.3 |
0.7 |
0.2 |
0.2 |
0.5~1.1 |
0.1 |
0.25 |
– |
0.05 |
0.15 |
remainder |
3105 |
0.6 |
0.7 |
0.3 |
0.3~0.8 |
0.2~0.8 |
0.2 |
0.4 |
0.1 |
0.05 |
0.15 |
remainder |
1100 |
0.95 Si + Fe |
0.05~0.20 |
0.05 |
– |
– |
0.1 |
– |
0.05 |
0.15 |
99 |
Alloy Designation (For Reference)
Comparison of Alloy Designations for Aluminum Flat Products
Alloy |
Chinese |
American Standard |
European Standard |
1xxx Series |
1100 |
1100 |
– |
3xxx Series |
3105 |
3105 |
EN AW-3105 |
5xxx Series |
5005 |
5005 |
EN AW-5005 |
Available Size Range:
Dimension |
Range |
Thickness |
0.10 mm~ 1.5 mm |
Diameter |
1000 mm ~ 1,550 mm |
Length |
Coiled, or 2,000 ~ 4,000 mm |
Conclusion
Several industries rely on colour-coated aluminium coils due to their vibrant colours and excellent flexibility. Viva offers customization in colour-coated panels as per the needs of the consumer. Viva is the leading exporter of colour-coated panels or sheets and guarantees quality at an affordable price. To reach out to our expert and learn more about Viva’s product range,
