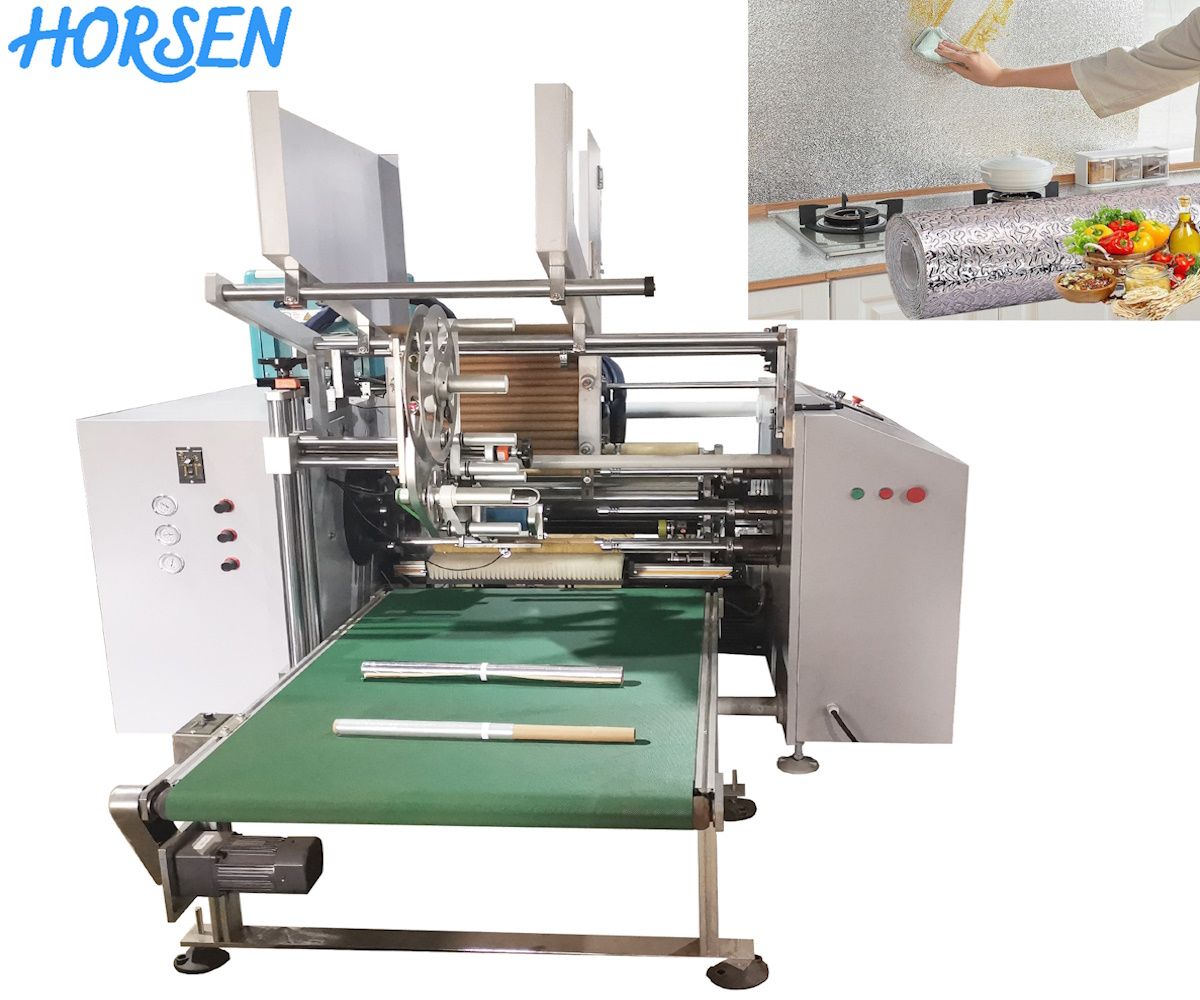

Thermal Insulation Aluminium Foil Paper Rewinding Machine

By: Wenzhou Horsen Machinery Co., Ltd.
Price Available on request
Work Method Flat Knife Cutting
Structure Winding Machine
Category Equipment
Manufacturer Wenzhou Horsen Machinery Co., Ltd.
Min Order Quantity 1.00 Unit
Delivery Lead Time As per order
Place of Origin China
Supply Ability Customization as required
Packaging Details Standard Export Wooden Case
Transportation Details Road / Ship
26.03.2026
Description

Specification:



Item number HSS-450 6shafts auto change
Rewinding Material Aluminum foil, baking paper, silicon paper
Driven Type Electric
Width of material 260-450mm(customized)
Width of products 260-450MM(customized)
Diameter of un-winder roll(Max) Ф700mm
Diameter of re-winder roll(Max) Ф90mm / max. length 300m
Minimum length of rewind 1meter
Core size of un-winder 3’’ or 6”
Core size of re-winder 30mm  35mm or 38mm (Customized)
Structure thickness 20mm
Max Mechanical Speed 350m/min
Working Power 7.5KW
Main motor 4kw
Voltage 3P. 380V(customized)    20A
Frequency 50HZ
Air pressure 0.5Mpa
Change motor and gear reducer 750W
Rewind motor 1.5kw Servo Motor
Hot-melt Glue power 3KW
Sticker motor 750W  (short & long)
Inverter Delta Taiwan
PLC Siemens Germany
Driver Delta Taiwan
Servo motor Delta Taiwan
Touch screen 7” WEINVIEW
Hot-melt glue machine XBS China
Air Switch CHNT China
Bearing Haerbing & NSK
Unwind and rewind tension Automatic tension
Auto count meter By encoder
Material finish function Automatic machine stop
Weight 1600kg
Installing dimension (LXWXH) 3500*1800*2100mm
Packing Type wooden case
Packing Size 245*176*182cm
Convey table size 135*64cm
