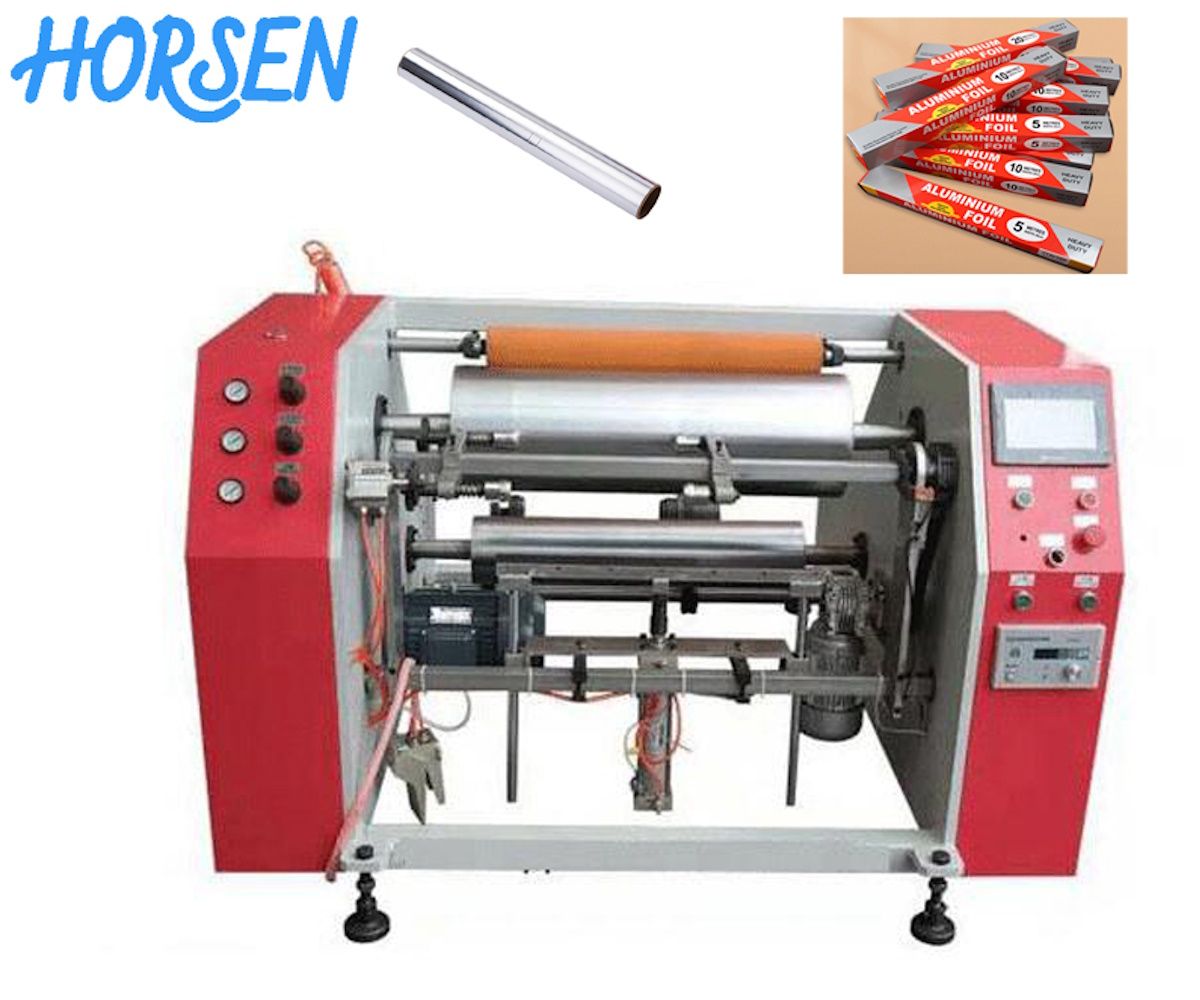

2 Shafts Semi-auto Aluminium Foil Rewinding Machine
By: Wenzhou Horsen Machinery Co., Ltd.| Price | Available on request |
| Work Method | Flat Knife Cutting |
| Structure | Winding Machine |
| Category | Finishing Line |
| Manufacturer | Wenzhou Horsen Machinery Co., Ltd. |
| Min Order Quantity | 1.00 Unit |
| Delivery Lead Time | As per order |
| Place of Origin | China |
| Supply Ability | Customization as required |
| Packaging Details | Standard Export Wooden Case |
| Transportation Details | Road / Ship |
26.03.2026
Description
It is used for rewinding the jumbo roll of aluminium foil / baking paper / cling bag into small roll. It adopts surface rewinding method, it can rewind the roll from 1 meter for house foil roll, kitchen foil roll, catering foil roll and hair foil roll etc.
Specification:
- Paper core ID of jumbo roll: 76mm
- The width of jumbo roll: 600mm (max)
- The diameter of jumbo roll: 600mm (max)
- The width of sub roll: 600mm(max)
- The diameter of sub roll: 100mm (max)
- Core Of Sub Roll: 30-50mm (thickness above 2MM)
- Main motor power: 2.2KW (3Phase380V, 50HZ)
- Inverter frequency: 2.2KW
- Mechanical speed: Max 350M/min
- Dimension（about）: 1700*1350*1000mm
- Thickness of wall plate: 20mm±2m
- HMI ( Touch screen ) in English
- Tension control: magnetic powder brake
