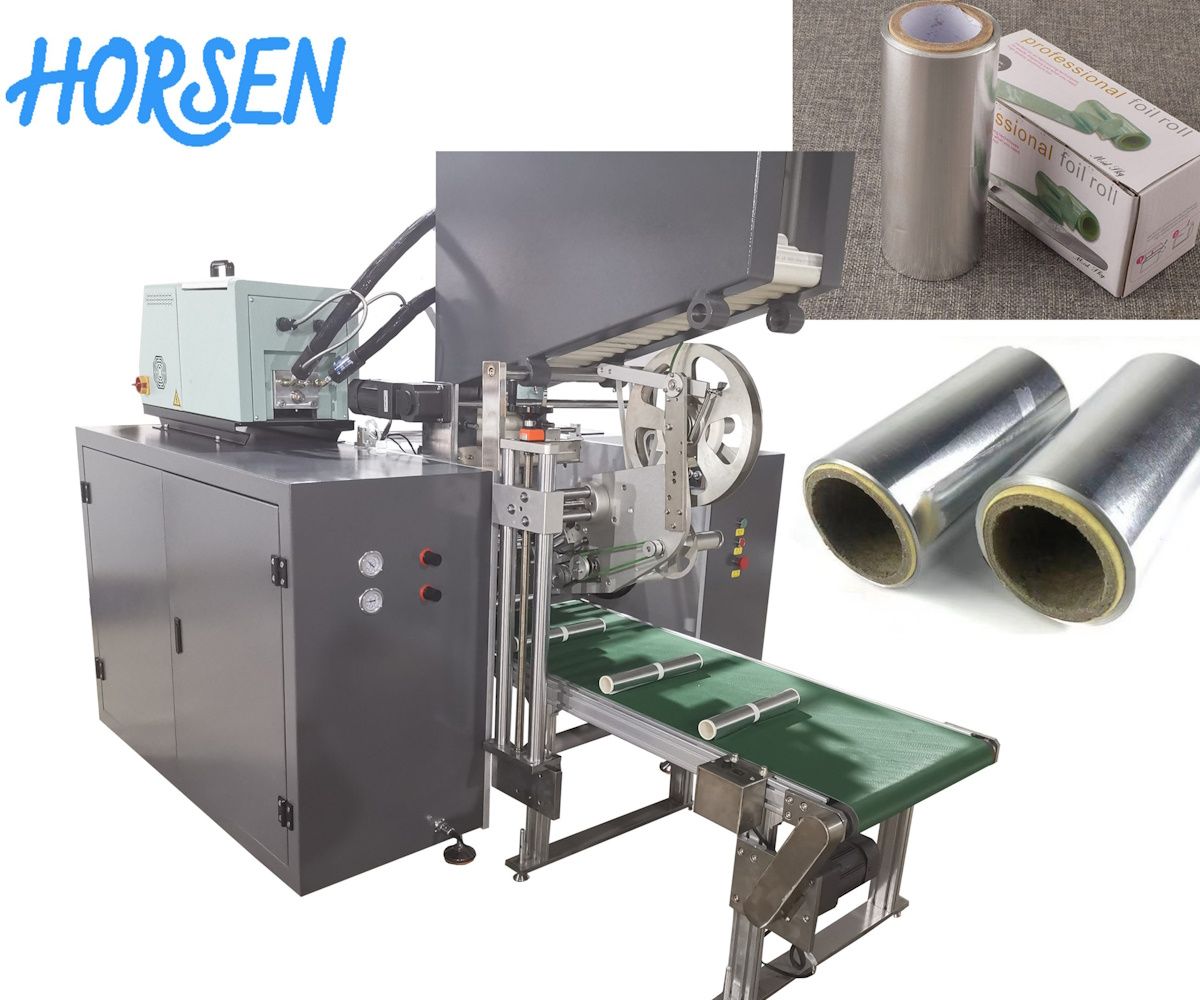

Full Automatic Rewinder for Aluminium Foil and Baking Paper

By: Wenzhou Horsen Machinery Co., Ltd.

Price	Available on request
Work Method	Flat Knife Cutting
Structure	Winding Machine
Category	Equipment
Manufacturer	Wenzhou Horsen Machinery Co., Ltd.
Min Order Quantity	1.00 Unit
Delivery Lead Time	As per order
Place of Origin	China
Supply Ability	Customization as required
Packaging Details	Standard Export Wooden Case
Transportation Details	Road / Ship

Send response to similar sellers

Details

Valid Upto

26.03.2026

Description

It is designed to covert catering rolls: aluminum foil, baking paper. External diameter depends on customer’s needs. Rewinder may works on 6 shifts, doesn’t matter if your product is catering or household rolls.

Specification:

Item number	HSS-450 6shafts auto change
Rewinding Material	Aluminum foil, baking paper, silicon paper
Driven Type	Electric
Width of material	200-450mm(customized)
Width of products	200-450MM(customized)
Diameter of un-winder roll(Max)	700mm
Diameter of re-winder roll(Max)	90mm / max. length 300m
Minimum length of rewind	1meter
Core size of un-winder	3’’ or 6”
Core size of re-winder	30mm 35mm or 38mm (Customized )
Max Mechanical Speed	350m/min
Main motor	4kw
Air pressure	0.5Mpa
Change motor and gear reducer	750W
Rewind motor	1.5kw
Hot-melt Glue power	3KW
Sticker motor	Servo motor 750W
Inverter	Delta Taiwan
PLC	Siemens
Touch screen	WEINVIEW
Hot-melt glue machine	China famous brand(if need Swiss import available)
Unwind and rewind tension	Automatic tension
Auto count meter	By encoder
Material finish function	Automatic machine stop
Weight	1600kg
Installing dimension (LXWXH)	350018002100mm
Packing Type	wooden case
Packing Size	230175190cm
