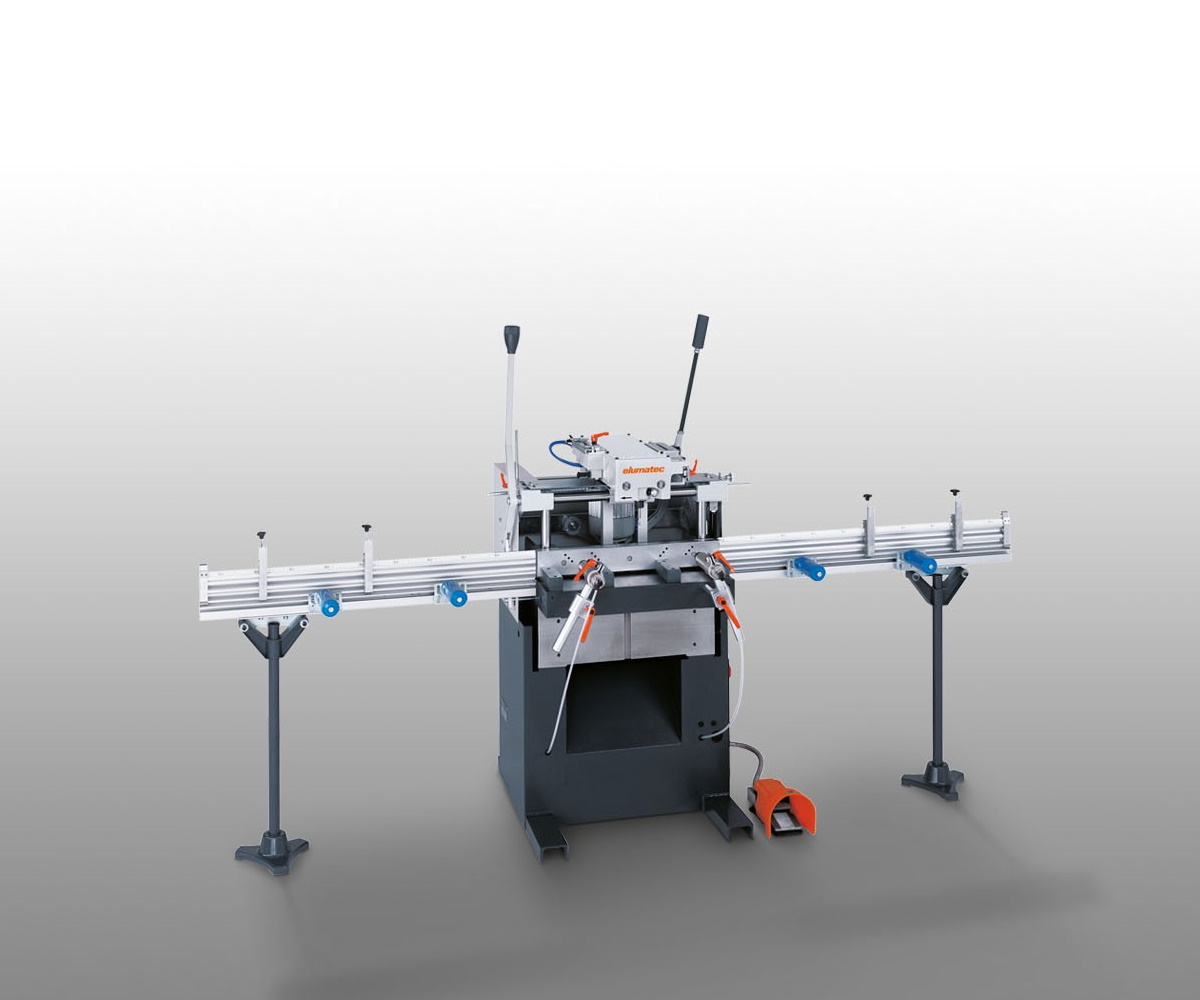

1-spindle copy router AS 170

1-spindle copy router AS 170

By: Elumatec India Pvt Ltd
Price Available on request
Category Equipment
Manufacturer Elumatec India Pvt Ltd
Min Order Quantity 1.00 Unit
Delivery Lead Time As per order
Place of Origin Germany
Supply Ability Customization on Requirement
Packaging Details Standard Export Packing
Transportation Details Road/Ship

29.03.2025

Description

Specification -

  • Large cutting range despite compact design
  • Copy routing using side stops or templates at a ratio of 1:1
  • Pneumatic tracer point with two levels for two different cutter diameters
  • Our patented copy lever suspension ensures precision routing with a minimum of effort
  • The table height is adjustable to accommodate very high profiles of up to 400 mm
  • The “Spindle Lock” feature makes tool changing easy
  • Pneumatic material clamping unit
  • Pulsed coolant system

Options -

  • Copy templates
  • Copy template blanks
  • Tracer points
  • Collets
  • Stop systems
  • Material clamping units
  • Cutting tools
  • High-performance cutting fluid

Technical Data -

  • Horizontal cutting range using a stop 300 x 120 mm
  • Horizontal cutting range using a copy template 285 x 110 mm
  • Spindle speed 12,000 rpm
  • Clamping range for profiles 150 x 130 mm, adjustable up to 400 mm
  • Travel 105 mm
  • Power supply 230/400 V, 3~, 50 Hz
  • Power output 0.74 kW
  • Compressed air supply 7 bar
  • Air consumption per working cycle 12 l without spraying, 24 l with spraying
  • Length 780 mm, depth 790 mm, height 1,545 mm, weight 210 kg
