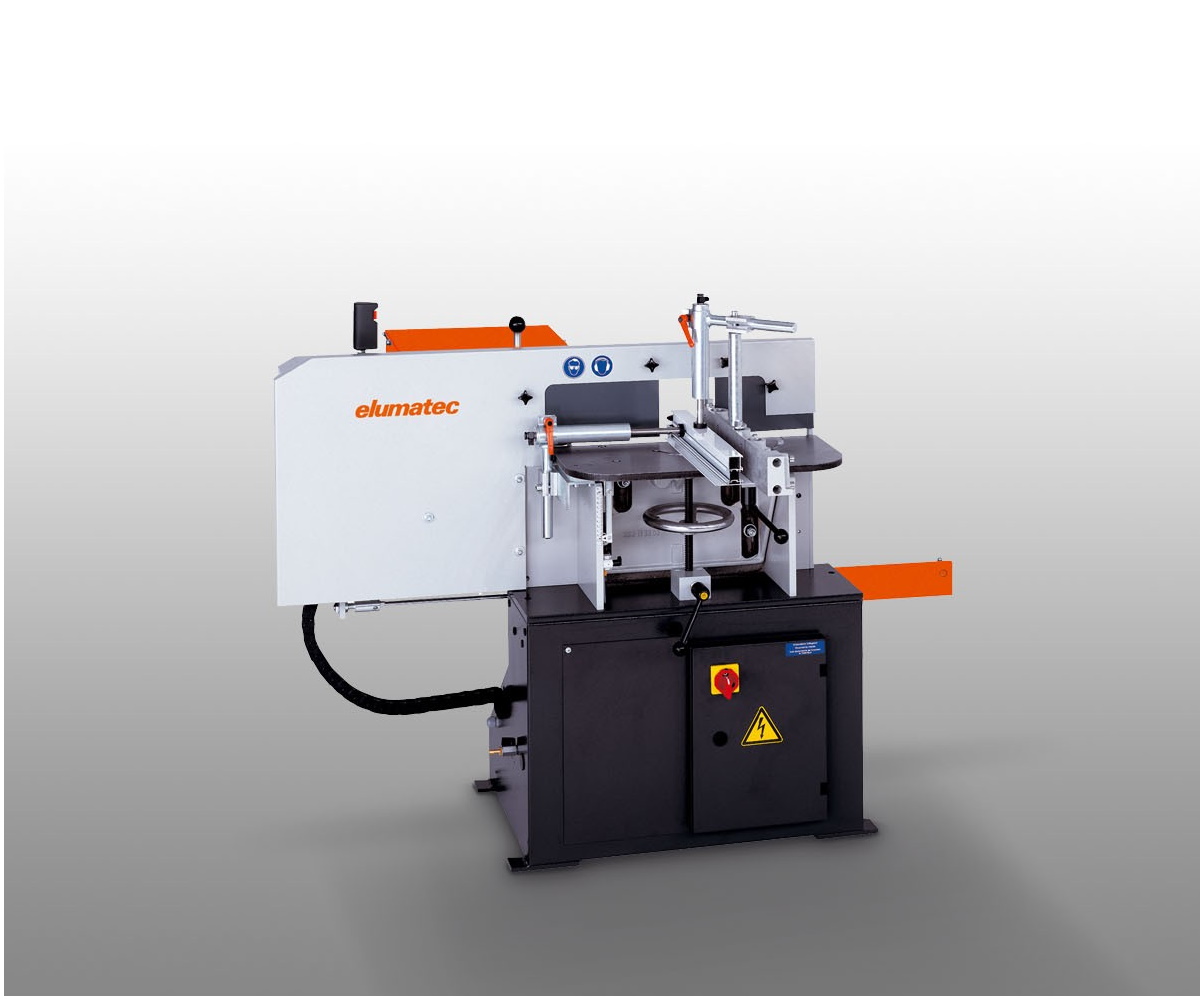

End milling machine AF 222

End milling machine AF 222

By: Elumatec India Pvt Ltd
Price Available on request
Category Equipment
Manufacturer Elumatec India Pvt Ltd
Min Order Quantity 1.00 Unit
Delivery Lead Time As per order
Place of Origin Germany
Supply Ability Customization on Requirement
Packaging Details Standard Export Packing
Transportation Details Road/Ship

28.03.2025

Description

Specification -

  • For machining transoms and door profiles made of aluminium or plastic
  • Manual feed of the routing unit
  • Large cutting range of up to 400 mm
  • Continuously adjustable table height
  • Tool diameters of up to 280 mm can be used
  • The material stop can be pivoted up to 60° to the left and right. Notching up to 30° (acute angles, left and right). Detent at 90° with index pin.
  • Two installation positions for the material stop
  • With quick tool change system and "Spindle Lock" for easy tool changing
  • Precise, smooth-action and low-wear recirculating ball guides
  • Horizontal and vertical pneumatic material clamping provides flexibility
  • Depth stop for four different notching depths
  • Integrated connecting piece with extractor hose for connection to an extraction system
  • Pulsed coolant system
  • Automatic safety curtain

Options -

  • Extraction system
  • 4-fold turret stop for table height
  • Digital display
  • Cutting tools
  • High-performance cutting fluid

Technical Data -

  • Cutting tool diameter max. 280 mm
  • Cutter bore 40 mm
  • Profile height max. 165 mm
  • Cutting height 145 mm
  • Cutting depth 110 mm
  • Cutting length 400 mm
  • Spindle speed 2,800 rpm
  • Travel 550 mm
  • 2.5 kW of power at 400 V / 50 Hz
  • Compressed air supply 7 bar
  • Power output 2 kW
  • Air consumption 10 l per working cycle, 20 l with minimum-volume lubrication system
  • Length 1,540 mm, depth 905 mm, height 1,000 mm, weight 248 kg
