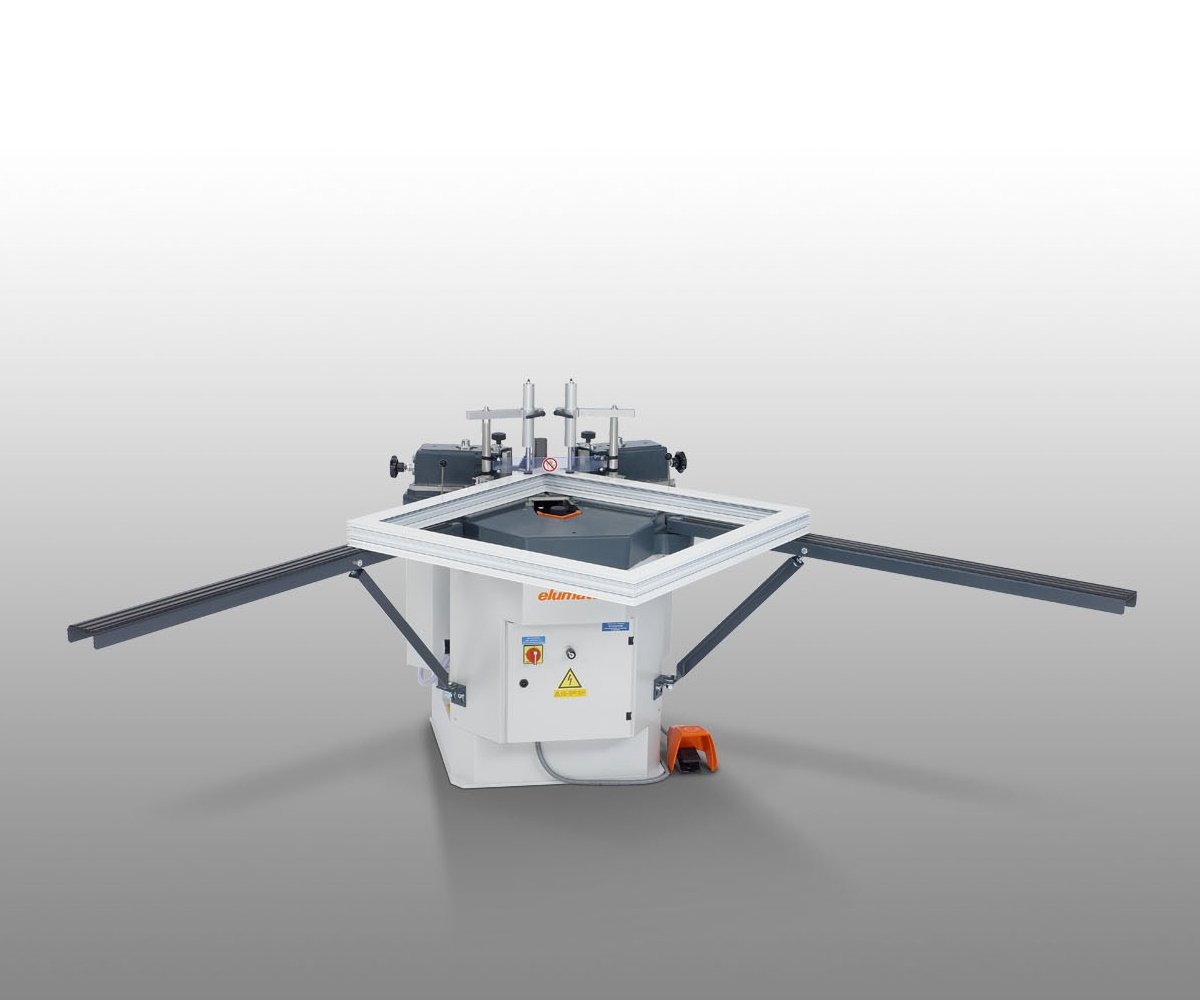

Corner crimper EP 124

Description

Specification -

• For pressing profiles with large dimensions with the highest quality requirements
• The machine is easy to adjust and operate and has short changeover times thanks to a simple blade-changing system
• Extremely high pressing force due to large-volume bellows cylinder (maintenance free)
• With retractable, hydro-pneumatically controlled counter bearing
• The specially-designed counter bearing head allows pressing of frames with an inner dimension starting at 150 mm (clear dimension)
• The pressing depth can be set separately for each tool carriage
• An adjustable pressing blade is also available to compensate for the profile chamber offset
  (-5 to 15 mm as standard, 15 to 35 mm as an option)
• Support arms and pressing blades included as standard
• 2-hand operation

Options -

• Support table for pre-assembly and depositing
• Counter bearing
• Special pressing blade

Technical Data -

• Pressing height 140 mm
• Pressing force 70 kN (7 t)
• Pneumatic drive
• Power supply 230 V, 1~, 50/60 Hz
• Compressed air supply 7 bar
• Air consumption per working cycle 35 l
• Length 1,100 mm, depth 950 mm, height 1,230 mm, weight 545 kg
