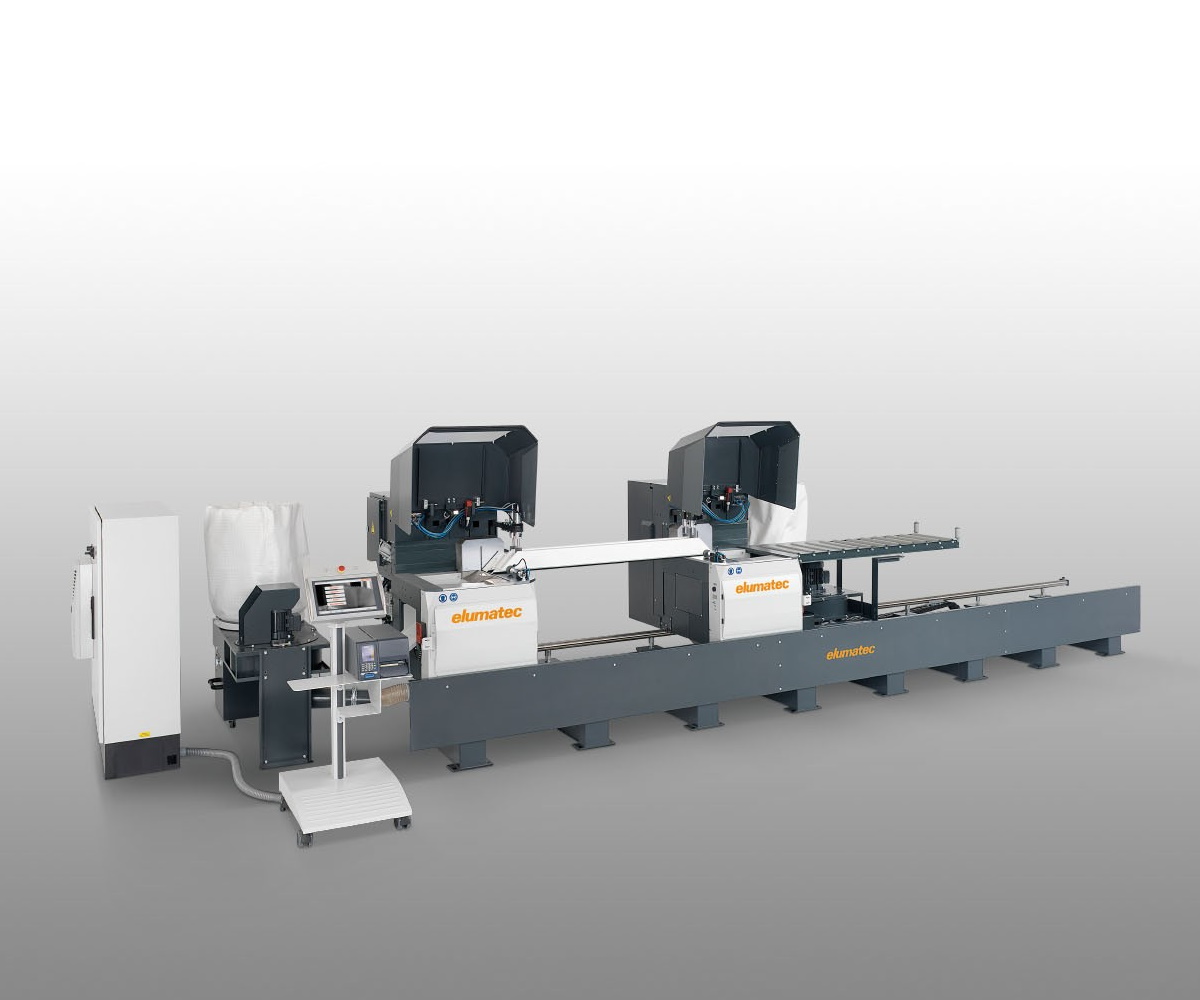

Double Mitre Saw DG 142 XL

Description

Specification -

• External-dimension cuts possible for all cutting variants
• Ideal machine for high-volume series production when cutting at 90° and 45°
• Equipped with saw blades and safety hoods as standard
• Equipped with E 190 digital display and handwheel adjustment as standard
• Vertical pneumatic material clamping unit

Cutting length variants -

• 3,000 mm
• 4,500 mm
• 6,000 mm
• 7,500 mm
• Additional lengths on request!

Options -

• Manual angle adjustment for each unit, digital
• Additional software for E 590: optimisation program, software module for chop and oversize length cuts for E 590 and E 390 as standard
• Label printer for variants with E 390 and E 590
• Mobile workpiece support
• Material clamping units
• Transom stop and lead-cut stop
• Extraction system
• Stationary and/or travelling roller conveyor
• Saw blades
• 5.5 kW motors for aluminium machining
• Hydro feed for aluminium machining
• High-performance cutting fluid for aluminium machining
• Pulsed coolant system for aluminium machining
• Cycling
• Safety fence

Controller variants -

• Manual cutting length adjustment with E 190 digital display
• Positioning control E 390
• PC control E 590

Technical Data -

• Minimum cutting length at 90° 400 mm
• Minimum cutting length tilted at 45° 400 mm
• Tilting range inwards 90° – 45°
• For cutting range, see cutting diagram
• Saw blade diameter 550 mm
• Saw blade speed 2,800 rpm
• Power supply 230/400 V, 3~, 50 Hz
• Power output per motor 4 kW
• Compressed air supply 7 bar
• Air consumption per working cycle 40 l without spraying, 64 l with spraying
