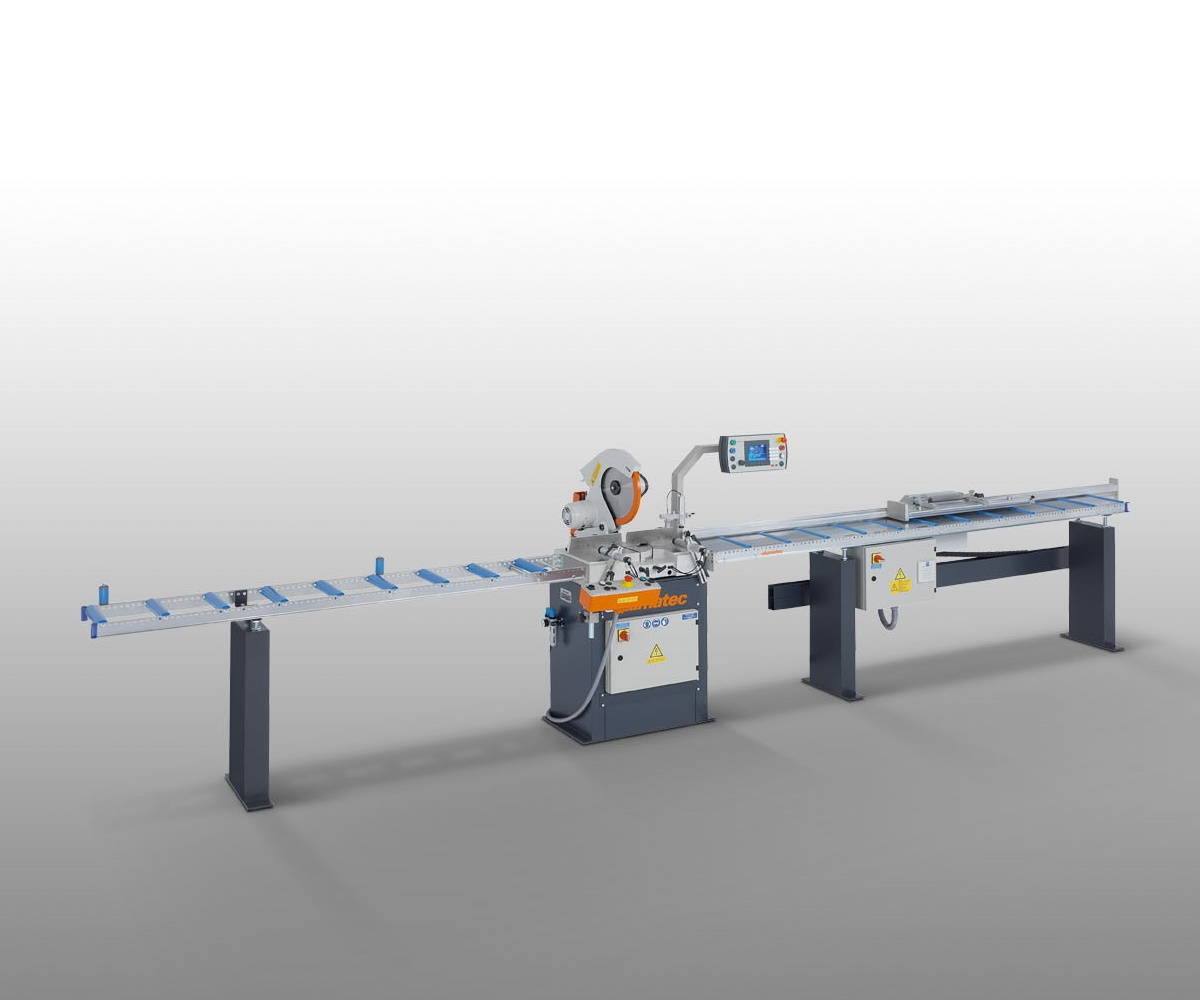

Mitre Saw MGS 73/33

Mitre Saw MGS 73/33

By: Elumatec India Pvt Ltd
Price Available on request
Category Equipment
Manufacturer Elumatec India Pvt Ltd
Min Order Quantity 1.00 Unit
Delivery Lead Time As per Order
Place of Origin Germany
Supply Ability Customization on Requirement
Packaging Details Standard Export Packing
Transportation Details Road/Ship



Specification -

  • Versatile for use with aluminium and PVC profiles
  • Stable, ground, continuous support table with turn table on precision bearings
  • Wear-resistant and quiet multi-V belt drive
  • Equipped with saw blade as standard
  • Hydro-pneumatic saw feed
  • 2-hand operation
  • Machine with base
  • Pneumatic profile clamping (2x horizontal, 1x vertical)
  • Pulsed coolant system

Options -

  • Extraction system
  • Length stop and measuring systems
  • Roller conveyors
  • Saw blades
  • High-performance cutting fluid

Technical Data -

  • Pivoting range from 0° - 45°, continuously adjustable to the left and to the right
  • Positive location points at 15°, 30°, and 45°
  • Saw blade diameter 380 mm
  • Saw blade speed 2,800 rpm
  • Power supply 230/400 V, 3~, 50 Hz
  • Power output 3 kW
  • Compressed air supply 7 bar
  • Length 850 mm, depth 900 mm, height 1,450 mm, weight 220 kg
