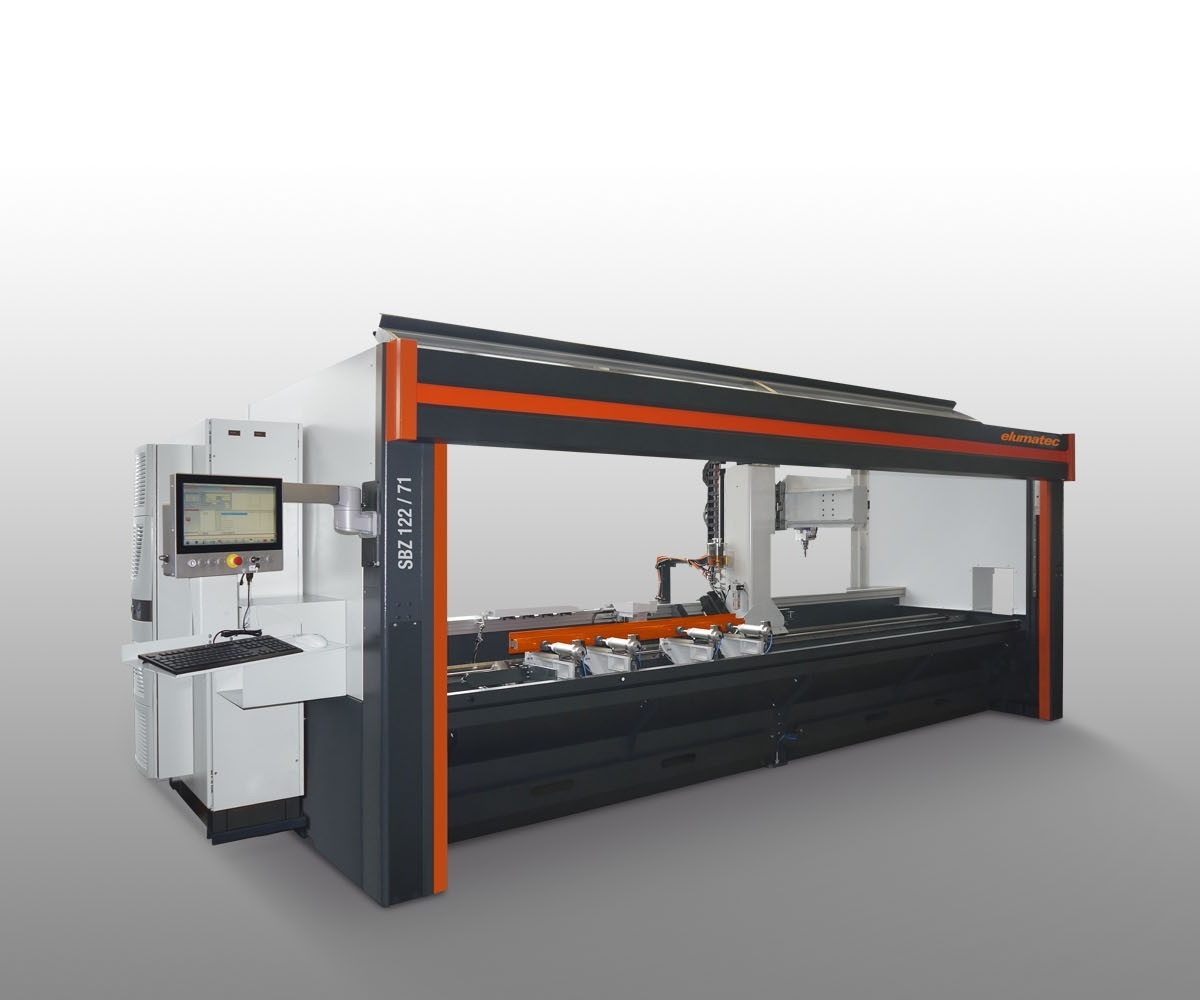

Profile machining centre SBZ 122/71

By: Elumatec India Pvt Ltd
Price Available on request
Category Equipment
Manufacturer Elumatec India Pvt Ltd
Min Order Quantity 1.00 Unit
Delivery Lead Time As per order
Place of Origin Germany
Supply Ability Customization on Requirement
Packaging Details Standard Export Packing
Transportation Details Road/Ship

29.03.2025

Description

Specification -

  • Designed for economical and efficient machining of aluminium, PVC and thin-walled steel profiles
  • All operations, such as routing, drilling and tapping, are performed while the profile bar is stationary to protect the profile surfaces
  • A rotation unit (rotating mechanism) integrated into the spindle makes it possible to adjust the rotating angle head to 0°, -90°, -180° and -270°
  • Better machining results thanks to the intelligent control technology
  • Fast positioning of the machining unit with up to 120 m/min thanks to dynamic servo drives
  • Tapping without compensation chuck
  • Automatic clamp recognition and clamp positioning
  • Ergonomic operation thanks to the advanced inclined bed
  • Automatic tool changer with four tool tray positions (without tools)
  • Automatic tool changer for an angle head
  • State-of-the-art 3-axis controller
  • The absolute rotary encoder system means no axis homing is required
  • Automatic clamp recognition and positioning prevents collisions
  • Power torque routing motor with enclosed speed control for short spindle start-up and braking times.
  • Certified, drive-integrated safety functions
  • Low power consumption thanks to the intelligent control technology
  • DC link coupling in the axis drives for greater energy efficiency
  • Uninterruptible power supply (UPS)
  • Windows operating system
  • 18.5" panel PC, i5 processor, USB ports and network connection
  • Simple, stress-free program entry with eluCam on the operating panel, even during operation
  • Remote online maintenance

Machine configuration -

  • Air-cooled 8 kW, S1 routing spindle
  • Enclosure to protect the operator
  • Four horizontal, pneumatic material clamping units
  • A material stop on the left
  • Tool holder HSK-F63
  • Routing spindle with integrated rotation unit (0°, -90°, -180° and -270°) for angle head
  • HSK-F63 rotating angle head for two tools
  • Swarf trays for swarf removal
  • Minimum-volume lubrication system
  • High performance cutting fluid
  • Hand-held operator terminal
  • Depth gauge

Options -

  • Tools
  • Tool holders
  • Automatic tool changer for max. four standard tools
  • Automatic tool changer for angle head
  • Green Line cooling unit for the control cabinet with reduced energy consumption
  • Barcode scanner
  • Protective enclosure can optionally completely enclose the machine on all sides
  • Four clamps as standard. Can be equipped with up to eight clamps
  • Material reference stop (right) for positioning workpieces with overlength machining
  • Additional stop for overlength machining (left)
  • Length measurement on both sides
  • Double clamping and other accessories on request
  • 21.6" panel PC, i7 processor
  • Note holder
  • Sound insulation hood

Technical Data -

Max. machining length without profile end machining

4,150 mm

Max. machining length with profile end machining

4,000 mm

Traverse path X-axis

4,295 mm, Vmax. 120 m/min.

Traverse path Y-axis

910 mm, Vmax. 60 m/min.

Traverse path Z-axis

475 mm, Vmax. 50 m/min.

Direction of machining

5 (above, behind, front, left, right)

Positioning accuracy

+/- 0.1 mm

Routing spindle speed

max. 24,000 rpm

Routing spindle power

8 kW, S1 with feedback (air-cooled)

Tool holder

HSK-F63

Tool changing

automatic

Tool tray positions in the automatic magazine

4 (max. 16)

Angle head

Yes

Disc milling cutter diameter

120 mm

Saw blade diameter

-

Tool length (from extent of taper)

max. 150 mm

Clamp positioning

automatic

Clamps

Basic (with round guides)

Software

eluCam

Compressed air supply

> 7 bar

Power supply

400 V, 3~, 50 Hz, 25 A

Air consumption per minute

approx. 185 l with spraying

Total length

6,592 mm

Depth

2,171 mm

Height

3,000 mm

Weight

approx. 2,900 kg
