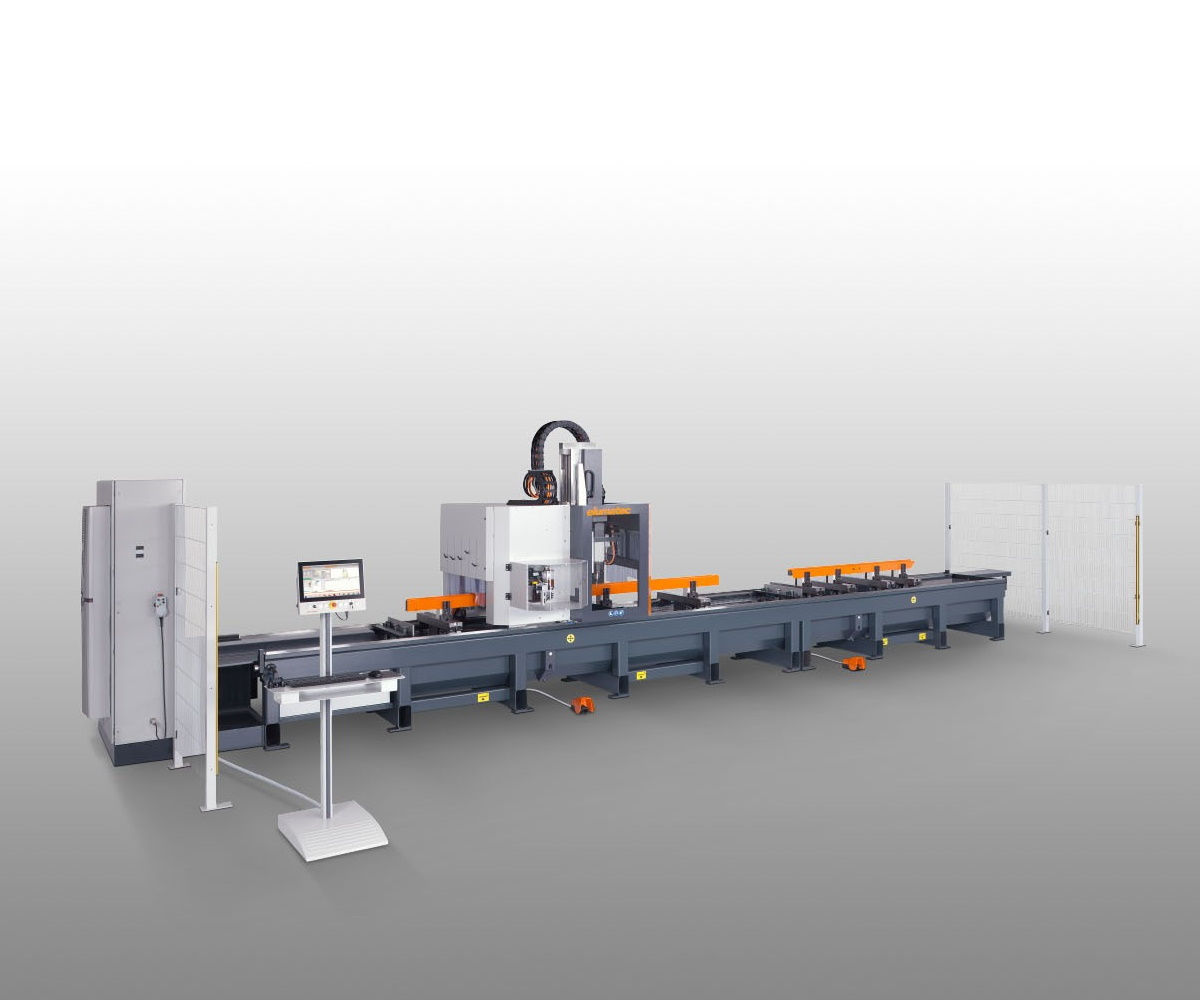

Profile machining centre SBZ 140

Profile machining centre SBZ 140

By: Elumatec India Pvt Ltd
Price Available on request
Category Equipment
Manufacturer Elumatec India Pvt Ltd
Min Order Quantity 1.00 Unit
Delivery Lead Time As per order
Place of Origin Germany
Supply Ability Customization on Requirement
Packaging Details Standard Export Packing
Transportation Details Road/Ship



Specification -

  • 4-axis profile machining centre
  • Designed for economical and efficient machining of aluminium and thin-walled steel profiles
  • Standard version with air-cooled router spindle (version with water-cooled router spindle available optionally)
  • All operations, such as routing, drilling and tapping, are performed while the profile bar is stationary to protect the profile surfaces
  • Machining with all tools at angles continuously adjustable from -90° to +90°
  • Automatic clamp positioning with absolute measurement system
  • The on-board tool magazine ensures that tool changing times are kept short, thereby optimizing machining cycles
  • The magazine can be equipped with eight tools
  • Up to two rotating angle heads with two different tools are optionally available for double-bar and end machining (0° – 90° – 180° – 270°) (optional)
  • Two separate working zones enable machining in shuttle operation (optional). There is a central laser scanner on the operator's side to protect the area for maximum safety.
  • 4-axis controller
  • 18.5" colour display, USB ports and network connection
  • Windows operating system
  • eluCam

Machining lengths -

SBZ 140 – 4.2 m

  • Max. machining length with profile end machining, 4,200 mm
  • Max. machining length without profile end machining, 4,320 mm

SBZ 140 – 7.6 m

  • Max. machining length with profile end machining, 7,600 mm
  • Max. machining length without profile end machining, 7,720 mm

SBZ 140 – 9.7 m

  • Max. machining length with profile end machining, 9,700 mm
  • Max. machining length without profile end machining, 9,820 mm

Options -

  • Shuttle operation for working on two sides
  • Automatic length measurement on both sides
  • Clamping unit accommodates double profile machining
  • Barcode scanner
  • Stationary tool magazine (16x)
  • On-board tool changers for angle head or saw head
  • Angle routing heads
  • Saw head
  • Tool holders
  • Collet chucks
  • Collets
  • Tools
  • eluCad (office software package for optimised production management)

Technical Data -

Max. machining length without profile end machining

4,320 mm, 7,720 mm, 9,820 mm

Max. machining length with profile end machining

4,200 mm, 7,600 mm, 9,700 mm

Traverse path X-axis


4,320 mm, 7,720 mm, 9,820 mm

(additional lengths on request), Vmax. 63 m/min.

Traverse path Y-axis

845 mm, Vmax. 60 m/min.

Traverse path Z-axis

620 mm, Vmax. 60 m/min.

A-axis pivoting range

-90° 0° +90°

Spindle speed

max. 24,000 rpm

Spindle power output

11 kW S1

Direction of machining

top / front / rear / (left/right)

Positioning accuracy

0.1 mm/m

Tool holder


Tool changing


Tool changer for eight tools,

additional tool positions on request

Tool tray positions in the automatic magazine


Angle head

max. 2 (optional)

Disc milling cutter diameter

120 mm

Saw blade diameter

180 mm

Clamp positioning



4 / 8 / 12 (max. 16)



Compressed air supply

> 7 bar

Power supply

400 V, 3~, 50 Hz, 63 A

Air consumption per minute

approx. 180 l/min. with spraying

Total length

approx. 7,700 mm, 11,240 mm, 13,390 mm


approx. 3,400 mm


approx. 2,950 mm


approx. 5,000 kg / 7,400 kg / 8,200 kg
