Description
Specification -

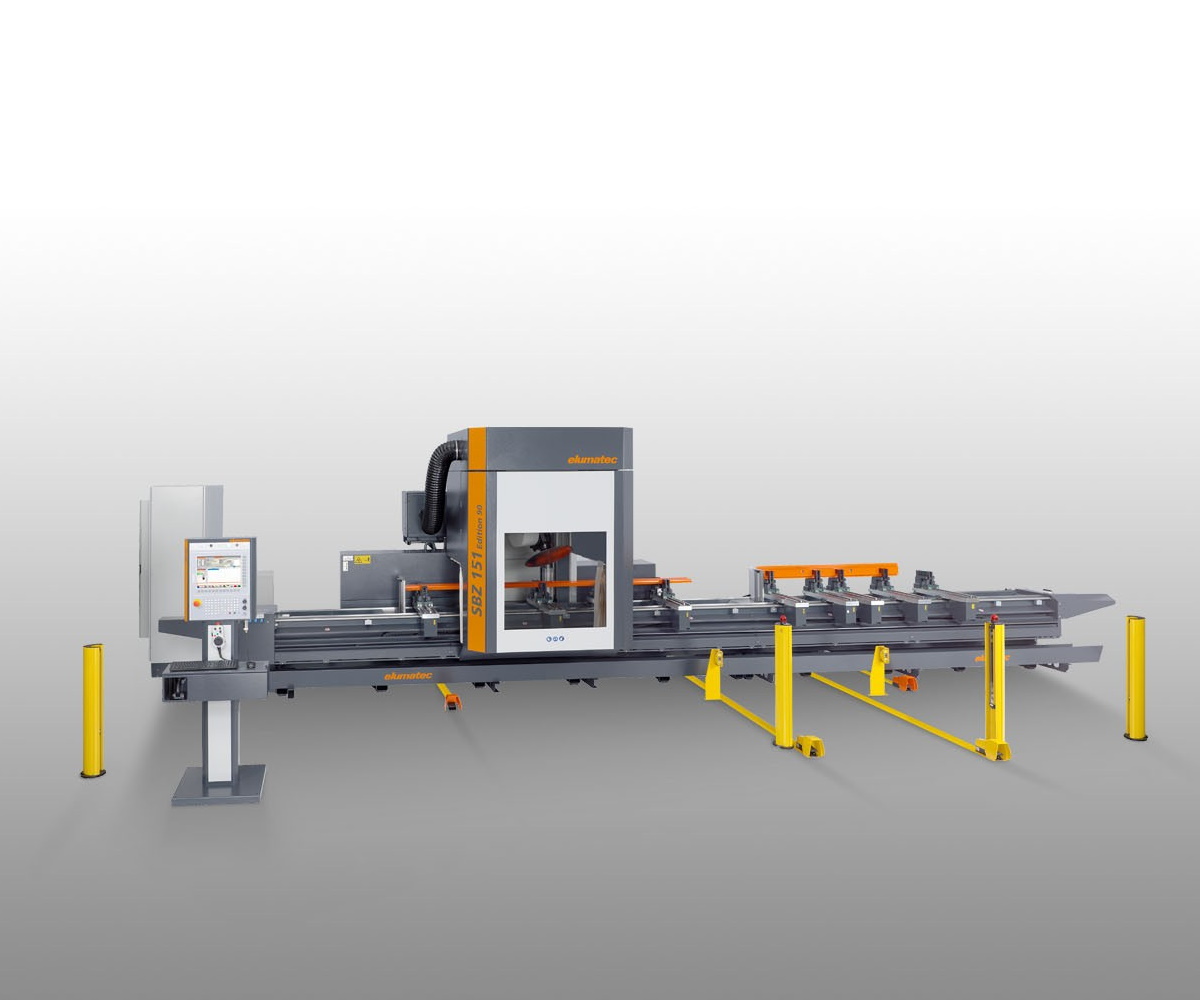

- 5-axis profile machining centre
- Designed for flexible and efficient machining of aluminium and thin-walled steel profiles
- All operations, such as routing, drilling, tapping, thread milling, notching and sawing, are performed while the profile bar is stationary to protect the profile surfaces
- Fast positioning of the machining unit with up to 66 m/min thanks to dynamic servo drives
- 6-sided machining. From below with an angle head (optional)
- The on-board tool magazines ensure that tool changing times are kept short, thereby optimizing machining cycles
- One magazine can be equipped with 13 standard tools and seven special tools (angle routing head and special cutters). An additional magazine for the saw blade, diameter 400 mm or 500 mm
- Autonomous clamp positioning with absolute measurement system
- Two separate working zones enable machining in shuttle operation. Secure access with safety fences and light barriers
- 5-axis CNC control with independent CNC for 3D machining, notching and cutting
- The absolute rotary encoder system means no axis homing is required
- Network connection and USB port
- Operating terminal with Windows operating system and 15" flat screen
- Remote online maintenance
- eluCloud ready
Machining lengths -
SBZ 151 Edition 90 - 6.0 m
- Max. machining length with profile end machining, 5,680 mm
- Max. machining length without profile end machining, 6,000 mm
SBZ 151 Edition 90 - 7.3 m
- Max. machining length with profile end machining, 6,980 mm
- Max. machining length without profile end machining, 7,300 mm
SBZ 151 Edition 90 - 9.0 m
- Max. machining length with profile end machining, 8,680 mm
- Max. machining length without profile end machining, 9,000 mm
SBZ 151 Edition 90 - 10.3 m
- Max. machining length with profile end machining, 9,980 mm
- Max. machining length without profile end machining, 10,300 mm
SBZ 151 Edition 90 - 12.0 m
- Max. machining length with profile end machining, 11,680 mm
- Max. machining length without profile end machining, 12,000 mm
SBZ 151 Edition 90 - 13.3 m
- Max. machining length with profile end machining, 12,980 mm
- Max. machining length without profile end machining, 13,300 mm
SBZ 151 Edition 90 - 15.0 m
- Max. machining length with profile end machining, 14,680 mm
- Max. machining length without profile end machining, 15,000 mm
SBZ 151 Edition 90 - 16.3 m
- Max. machining length with profile end machining, 15,980 mm
- Max. machining length without profile end machining, 16,300 mm
Options -
- Automatic length measurement on both sides
- Automatic length measurement on both sides with Z travel
- Tool length measurement and fracture detection
- Tapping without compensation chuck
- Clock system
- 3D wireless measurement sensor
- Tools
- Tool holders
- Collet chucks
- Collets
- Angle routing heads for machining from below
- Saw blades
- Chips conveyor belt
- Vapour extractor
- Label printer
- Barcode scanner
Technical Data -
- Traverse path X-axis 6,000 mm, 7,300 mm, 9,000 mm, 10,300 mm, 12,000 mm, 13,300 mm, 15,000 mm, 16,300 mm, Vmax. 66 m/min.
- Y-axis traverse path 1,150 mm, Vmax. 40 m/min.
- Z-axis traverse path 715 mm, Vmax. 40 m/min.
- Pivoting angle A-axis (for saw blade with diameter of 500 mm) +/- 100° (for saw blade with diameter of 400 mm +/- 110°)
- C-axis pivoting angle +/- 182°
- Positioning accuracy
- X-/Y-/Z-axis +/- 0.1 mm/m
- A-/C-axis +/- 0.1°
- Max. spindle speed 24,000 rpm
- Spindle power output 20 kW S1
- Right tool changer, 20 tool positions
- Left tool changer, one saw blade with a diameter of 500 mm (400 mm optional)
- Possible on special tool positions
- 13x max. 50 mm
- 1x max. 180 mm (saw blade)
- 1x max. 100 mm
- 5x max. 63 mm (optionally 2x WFK)
- Tool holder HSK-63F
- Compressed air supply 7 bar
- Power supply 400 V, 3~, 50 Hz, 50 A
- Air consumption per minute approx. 265 l with spraying
