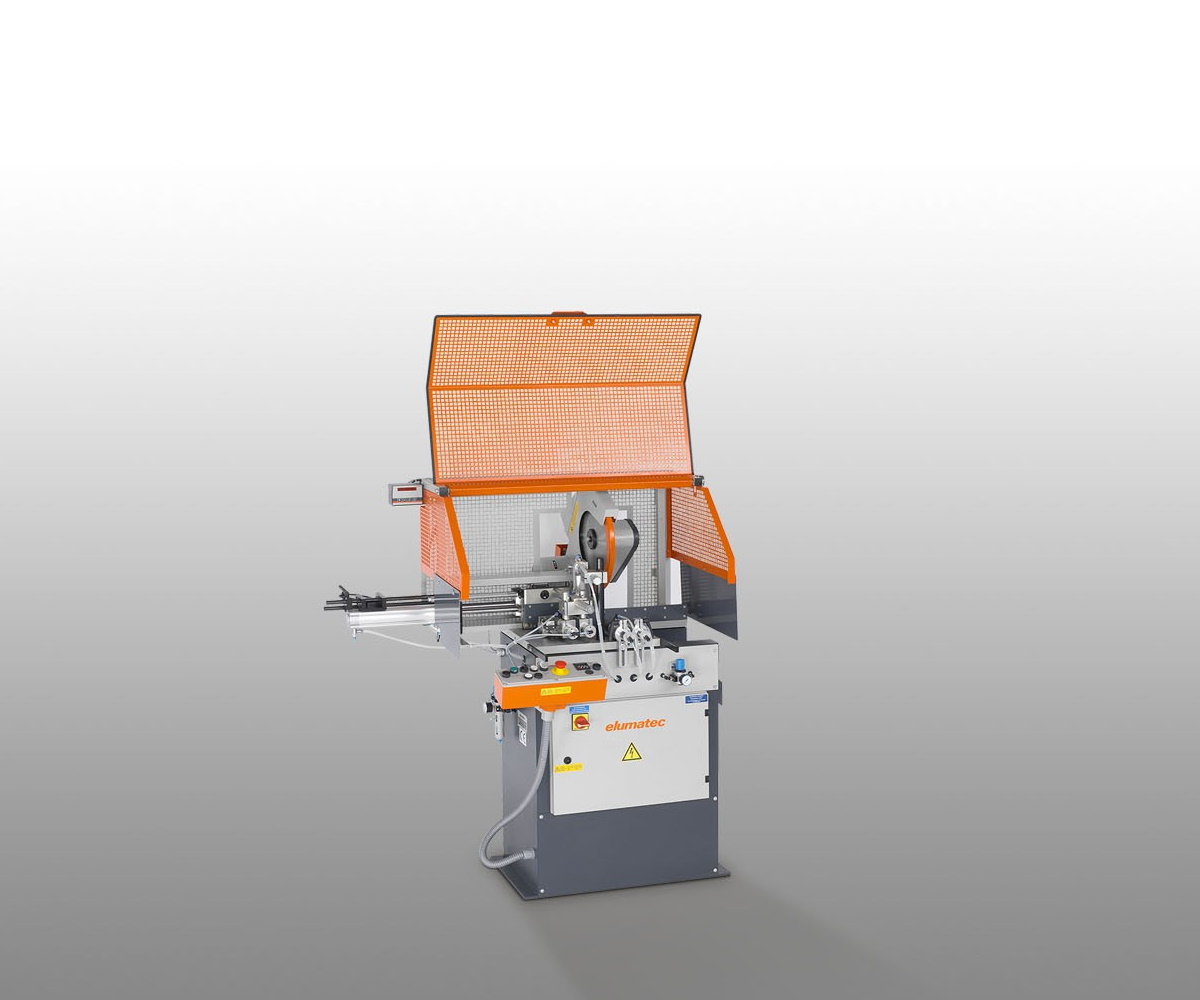

Automatic Saw SA 73

Description

Specification -

• Suitable for high-volume cutting of aluminium profiles for window manufacturing and industrial applications
• Material infeed (cycling) protects the surface of the workpiece by means of a single-stage profile lifting system
• One, two or three-stroke feed can be selected using a selector switch
• Reliable material feed using two horizontal clamping cylinders
• Automatic machine shut-down at the end of the profile
• Pulsed coolant system
• Equipped with saw blade as standard
• Digital display as standard

Options -

• Extraction unit
• Roller conveyor
• Saw blades
• High-performance cutting fluid

Technical Data -

• Cutting range 150 x 110 mm
• Saw blade diameter 380 mm
• Saw blade speed 2,800 rpm
• Power supply 230/400 V, 3~, 50 Hz
• Power output 3 kW
• Compressed air supply 7 bar
• Air consumption per working cycle 19 l without spraying, 31 l with spraying
• Length 1,500 mm, depth 1,100 mm, height 1,550 mm, weight 290 kg
• Feed distance per cycle 5 – 250 mm (up to three cycles possible)
