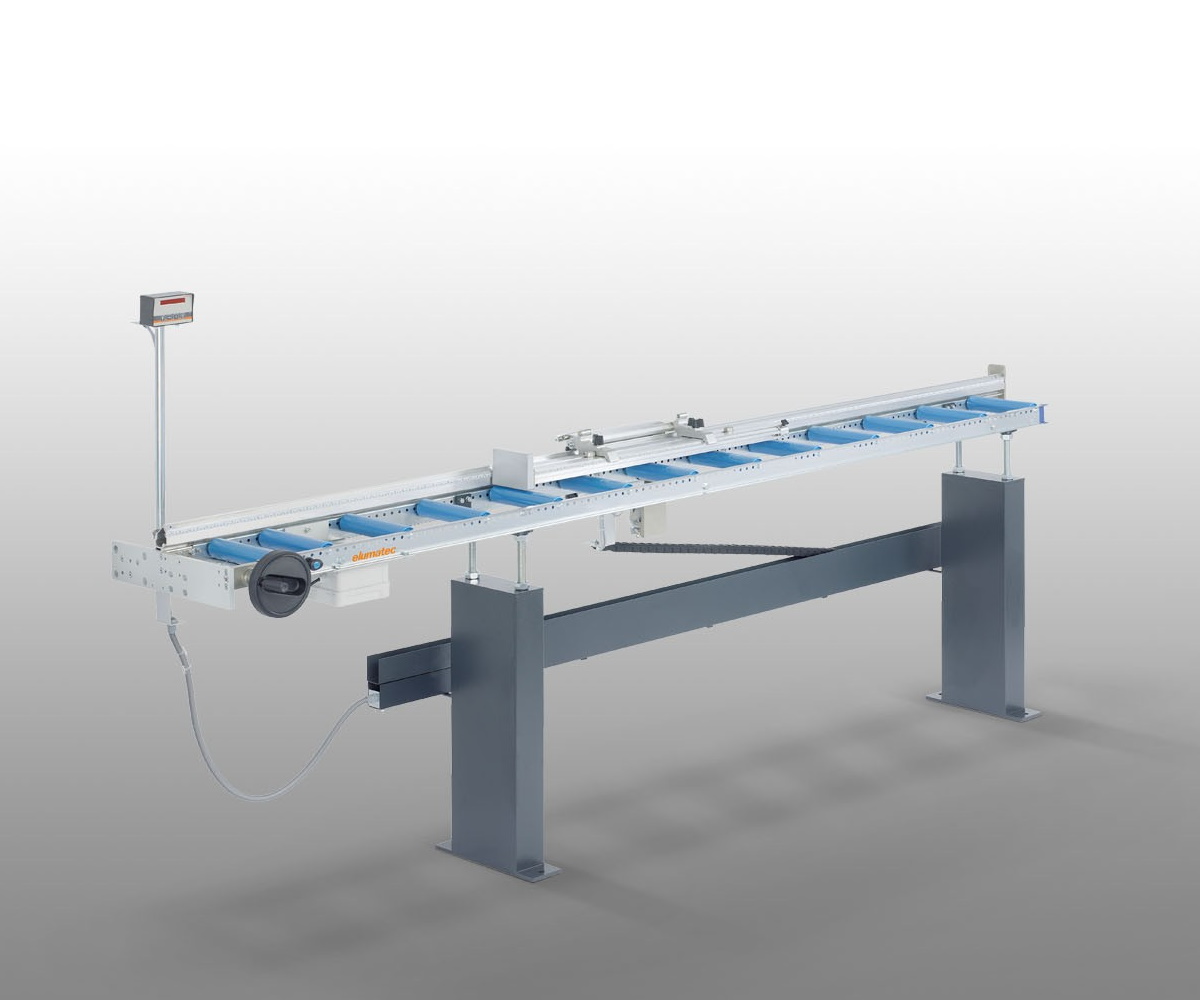

Length stop and measuring systems MMS 200

Description

Specification -

• For cutting aluminium profiles to length accurately
• For mounting on all single-head saws (right-hand side)
• Stop carriage can be folded back for positioning of profiles
• Automatic retraction unit: No re-cutting by the saw blade (option)
• Patented rail and carriage system
• Length stop and measuring system with sliding stop and difference scale for quick and accurate adjustment

Length variants -

• 3,000 mm
• 4,500 mm
• 6,000 mm
• Special lengths on request
• Variant for left-hand attachment on request

Technical Data -

• Accurate dimension adjustment using digital display
• Switching from absolute dimensions to chain dimensions
• Actual values of the display are stored when mains is switched off
• Quick read-out from the digital display. Resolution 0.1 mm
• Power supply 230 V, 1~, 50/60 Hz
• Switching between mm/inches
• Input of any desired reference value by means of front keypad
