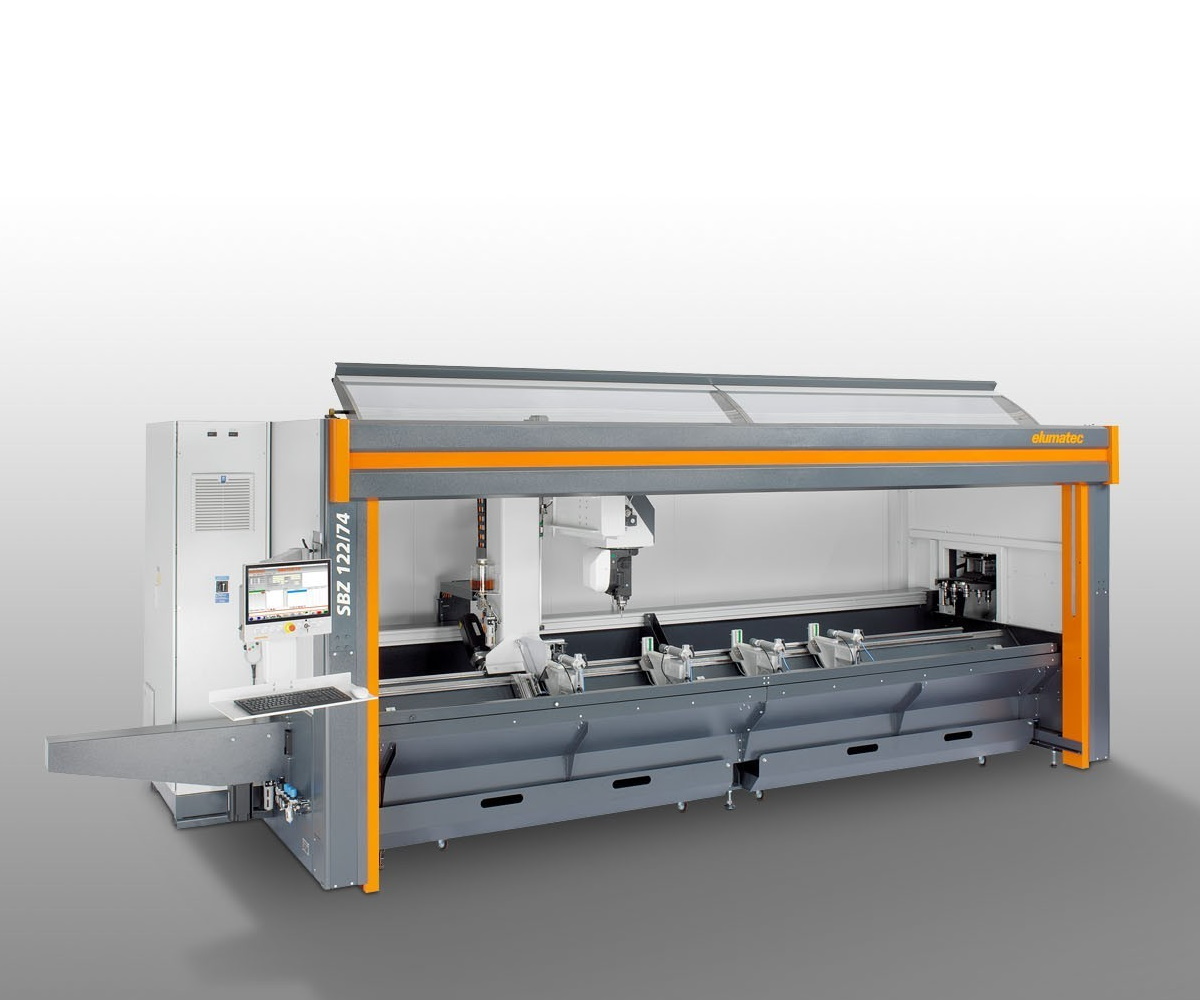

Profile machining centre SBZ 122/74

Profile machining centre SBZ 122/74

By: Elumatec India Pvt Ltd
Price Available on request
Category Equipment
Manufacturer Elumatec India Pvt Ltd
Min Order Quantity 1.00 Unit
Delivery Lead Time As per order
Place of Origin Germany
Supply Ability Customization on Requirement
Packaging Details Standard Export Packing
Transportation Details Road/Ship

29.03.2025

Description

Specification -

  • Designed for economical and efficient machining of aluminium, PVC and thin-walled steel profiles
  • All operations, such as routing, drilling and tapping, are performed while the profile bar is stationary to protect the profile surfaces
  • A-axis continuously adjustable from -120° to +120°
  • Linear guides for autonomous clamp positioning
  • Better machining results thanks to the intelligent control technology
  • Fast positioning of the machining unit with up to 120 m/min thanks to dynamic servo drives
  • Tapping without compensation chuck
  • Automatic clamp recognition and clamp positioning
  • Automatic tool changer with twelve tool tray positions (without tools)
  • State-of-the-art 4-axis controller
  • Ergonomic operation thanks to the advanced inclined bed
  • The absolute rotary encoder system means no main axis homing is required
  • Automatic clamp recognition and positioning prevents collisions
  • Power torque routing motor with enclosed speed control for short spindle start-up and braking times.
  • Certified, drive-integrated safety functions
  • Low power consumption thanks to the intelligent control technology
  • DC link coupling in the axis drives for greater energy efficiency
  • Uninterruptible power supply (UPS)
  • Windows operating system
  • 18.5" panel PC, i5 processor, USB ports and network connection
  • Simple, stress-free program entry with eluCam on the operating panel, even during operation
  • Remote online maintenance

Machine configuration -

  • Water-cooled 7 kW, S1 routing spindle
  • Autonomous clamp positioning
  • Automatic clamp recognition
  • Enclosure to protect the operator
  • Four horizontal, pneumatic material clamping units
  • A material stop on the left
  • Tool holder HSK-F63
  • Swarf trays for swarf removal
  • Minimum-volume lubrication system
  • High performance cutting fluid
  • Hand-held operator terminal
  • Depth gauge

Options -

  • Tools
  • Tool holders
  • Length measurement on both sides
  • Additional stop for overlength machining (left)
  • Material reference stop (right) for positioning workpieces with overlength machining
  • Green Line cooling unit for the control cabinet with reduced energy consumption
  • Barcode scanner
  • Protective enclosure can optionally completely enclose the machine on all sides
  • Stationary tool magazine
  • Four clamps as standard. Can be equipped with up to eight clamps
  • Double clamping and other accessories on request
  • 21.6" panel PC, i7 processor
  • Note holder
  • Sound insulation hood
  • Clamping unit optimised to prevent collisions

Technical Data -

Max. machining length without profile end machining

4,050 mm

Max. machining length with profile end machining

-

Traverse path X-axis

4,176 mm, Vmax. 120 m/min.

Traverse path Y-axis

1,040 mm, Vmax. 60 m/min.

Traverse path Z-axis

540 mm, Vmax. 30 m/min.

Direction of machining

3 (above, behind, front)

Positioning accuracy

+/- 0.1 mm

Routing spindle speed

max. 20,000 rpm

Routing spindle power

7 kW, S1 (water-cooled)

Tool holder

HSK-F63

Tool changing

automatic

Tool tray positions in the automatic magazine

12

Angle head

No

Disc milling cutter diameter

120 mm

Saw blade diameter

-

Tool length (from extent of taper)

max. 150 mm

Clamp positioning

autonomous

Clamps

Premium (with linear guides)

Software

eluCam

Compressed air supply

> 7 bar

Power supply

400 V, 3~, 50 Hz, 25 A

Air consumption per minute

approx. 185 l with spraying

Total length

7,643 mm

Depth

2,171 mm

Height

3,000 mm

Weight

approx. 3,800 kg
