Slab Casting Technology

Description

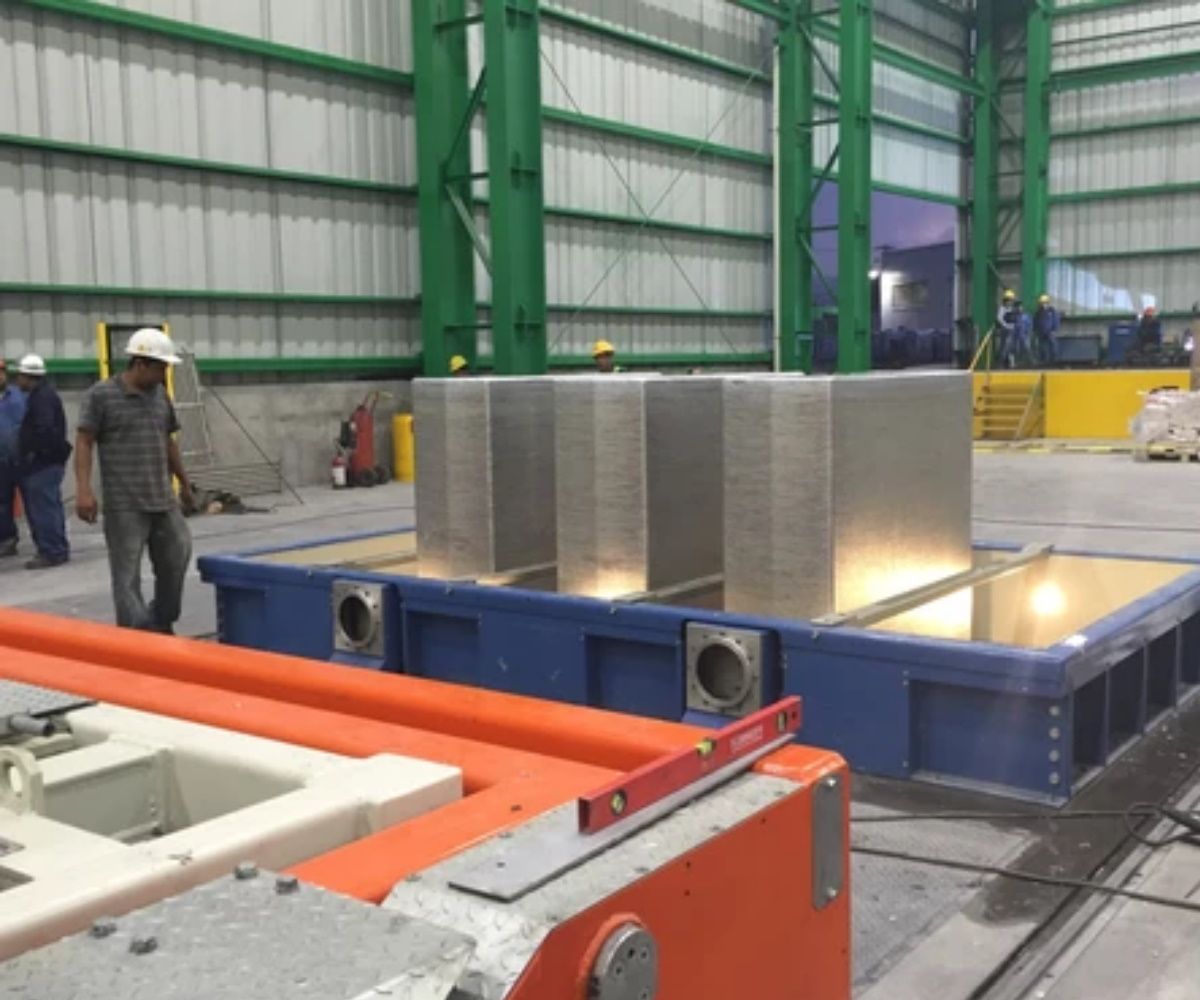

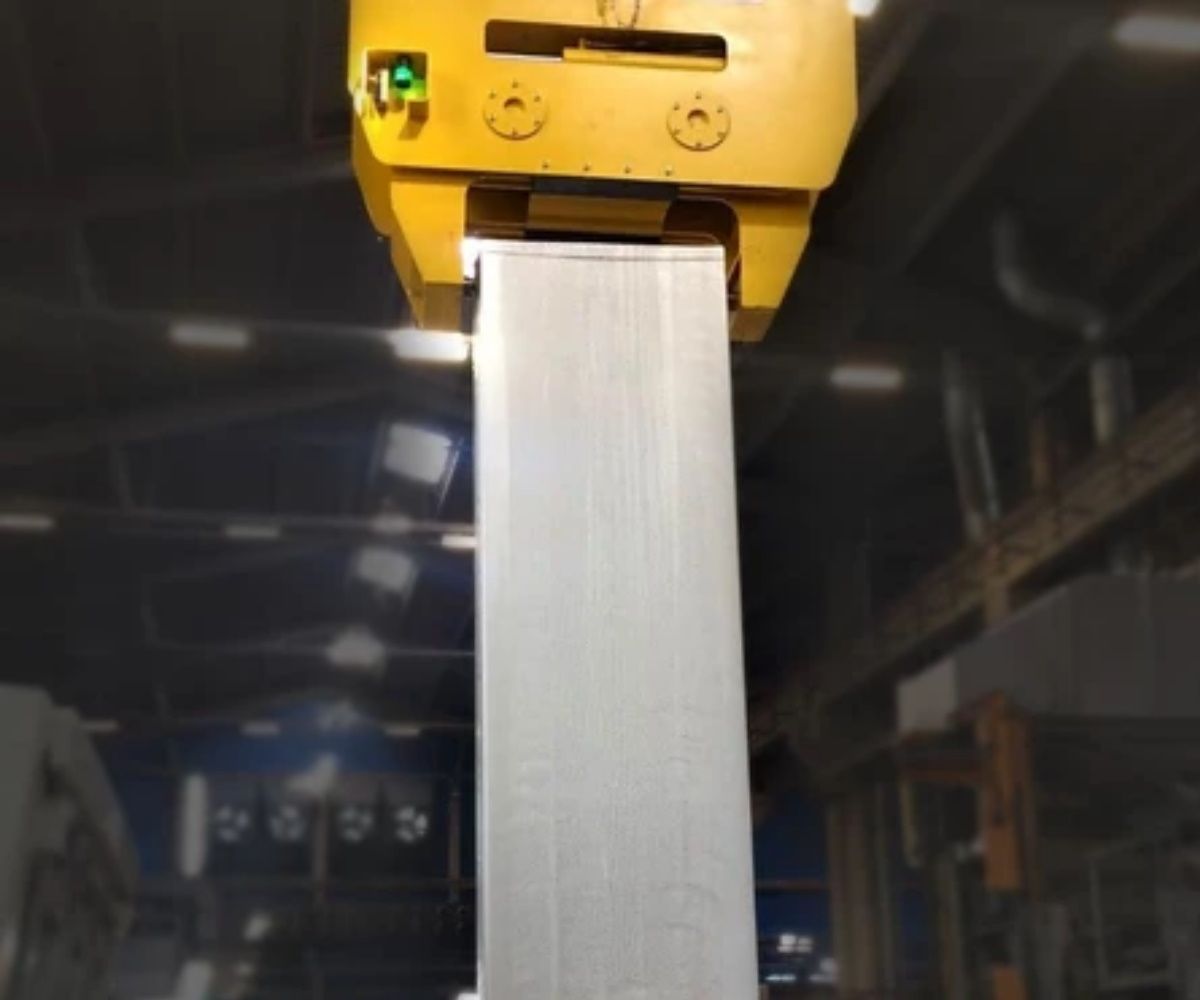

Many tonnes/Ann of aluminium are processed with DC casting methods for the productions of slabs.
These solid geometrical elements are largely involved for hot/cold mill, then used for the production of various industrial sectors, as transportation, automotive, packaging, construction and aerospace.
The role of Almec Tech is providing technology and high precision equipment for the casting process of slabs.

The dimensions of the desired elements are possible to be adapted to different necessities. AT technicians can realize different heights and lengths to comply to the specificity of the cast house project.The casting equipment for slabs is customized to guarantee the highest production standard, even on existing machines.
The range of dimensions is wide, from 280x850 mm to 620x2750 mm; different sizes on request.

It is possible to cast any type of alloy.

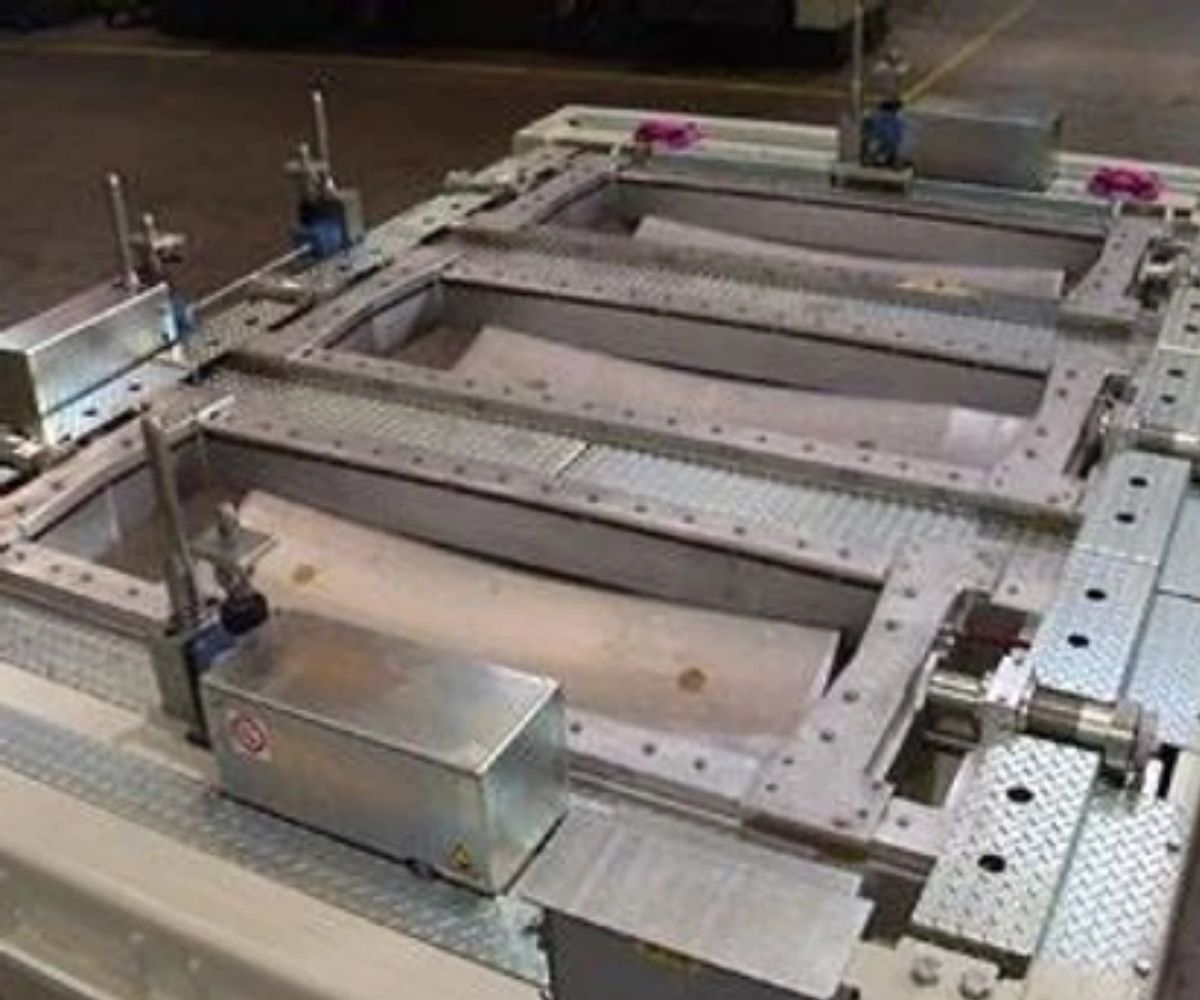

A number of 6 equipments, are specificly dedicated to slab casting process. They represent the core of the casting machine.
1) Starting head holder frame
2) Moulds holder frame
3) Distribution lauder
4) Adjustable or fixed moulds
5) Adjustable of fixed starting heads
6) Service station for maintenance
